TE Connectivity Corcom Filters 2EB3 Line Filter Equivalent & Substitute Parts

Part Overview

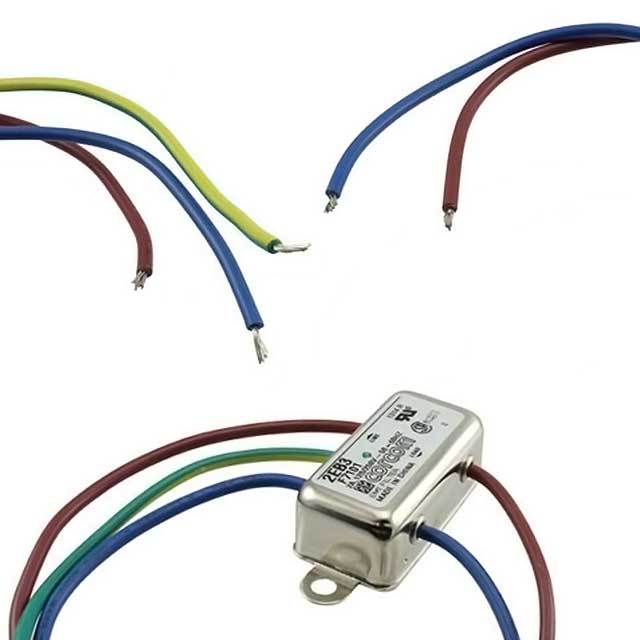

The TE Connectivity Corcom Filters 2EB3 is a single-phase EMC/EMI line filter rated for 250VAC at 2A with 50/60Hz operating frequency. This chassis-mounted filter features wire lead termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering. The product is active and widely stocked with 898 units available in bulk packaging. Substitute parts are identified when equivalent electrical and mechanical specifications are required due to inventory constraints, application-specific certifications, or packaging preferences.

Substiute Parts

2EB3

TE Connectivity Corcom FiltersIn Stock: 9622EB3 Datasheet

Current PartRFQ

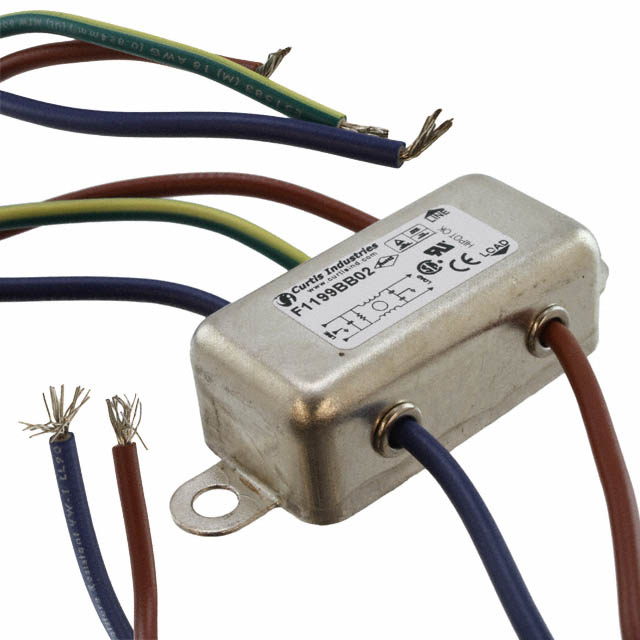

F1199BB02

Curtis IndustriesIn Stock: 1306F1199BB02 Datasheet

SimilarRFQ

F1199BB03

Curtis IndustriesIn Stock: 967F1199BB03 Datasheet

SimilarRFQ

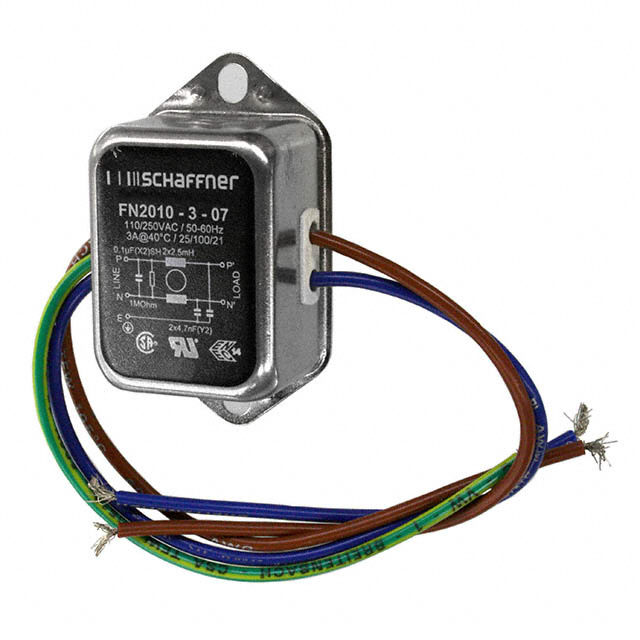

FN2010-3-07

Schaffner EMC Inc.In Stock: 1532FN2010-3-07 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 2EB3 are identified based on strict electrical and mechanical compatibility criteria. The primary substitution parameters are:

Critical Matching Parameters:

• Voltage rating: 250VAC (all substitutes match)
• Filter type: Single Phase (all substitutes match)
• Configuration: Single Stage (all substitutes match)
• Mounting type: Chassis Mount (all substitutes match)
• Termination style: Wire Leads (all substitutes match)
• Operating frequency: 50/60Hz minimum requirement (all substitutes meet or exceed)
• RoHS compliance: ROHS3 Compliant (all substitutes match)

Current Rating Considerations: The 2EB3 is rated at 2A. Substitute part F1199BB02 (Curtis Industries) maintains the exact 2A rating and represents a direct equivalent. Substitute parts F1199BB03 (Curtis Industries) and FN2010-3-07 (Schaffner EMC Inc.) are rated at 3A, providing higher current capacity within the same voltage and frequency specifications. These higher-rated parts are electrically compatible for 2A applications but represent over-specification in current handling.

Frequency Operating Range: The 2EB3 operates at 50/60Hz. Substitute FN2010-3-07 extends frequency coverage to DC ~ 400Hz, providing broader application compatibility while maintaining the 250VAC rating.

Parameter Comparison

Engineering Selection Recommendations

Direct Equivalent (Exact Current Match): The Curtis Industries F1199BB02 provides a direct electrical and mechanical equivalent to the 2EB3. Both parts are rated at 2A, 250VAC, 50/60Hz with single-stage, single-phase configuration and chassis-mount wire-lead termination. F1199BB02 carries CE, CSA, TUV, and UR certifications, providing broader regulatory coverage than the 2EB3. This part is suitable for direct substitution when Curtis Industries sourcing is preferred or when the additional certifications are required.

Higher Current Capacity Alternatives: Curtis Industries F1199BB03 and Schaffner EMC Inc. FN2010-3-07 both provide 3A current ratings at 250VAC. These parts are electrically compatible with 2A applications and maintain all other critical parameters. F1199BB03 operates at 50/60Hz identical to the 2EB3, while FN2010-3-07 extends frequency coverage to DC ~ 400Hz. Selection between these options depends on application frequency requirements and certification needs. FN2010-3-07 carries CSA, ENEC, and UR certifications with extended operating temperature range (-25°C ~ 100°C).

Certification Alignment: All substitute parts maintain ROHS3 compliance and EAR99 ECCN classification. The 2EB3 specifies VDE certification; F1199BB02 and F1199BB03 include TUV certification; FN2010-3-07 includes ENEC certification. Selection should account for specific regulatory requirements of the target application or end market.

Frequently Asked Questions (FAQ)

Q: Can F1199BB02 replace the 2EB3 in all applications? A: Yes. F1199BB02 matches the 2EB3 in all critical electrical parameters: 250VAC, 2A, 50/60Hz, single-phase, single-stage configuration with chassis-mount wire-lead termination. Both are ROHS3 compliant and carry equivalent regulatory certifications for general-purpose applications.

Q: What is the difference between the 2A and 3A rated substitutes? A: F1199BB02 is rated at 2A (matching the 2EB3), while F1199BB03 and FN2010-3-07 are rated at 3A. The 3A-rated parts provide higher current capacity and are electrically compatible with 2A applications. Selection depends on whether the application requires exact current matching or benefits from higher capacity headroom.

Q: Can FN2010-3-07 be used in place of the 2EB3? A: Yes. FN2010-3-07 is electrically compatible with the 2EB3 for 50/60Hz applications. It provides 3A current capacity, extended frequency range (DC ~ 400Hz), and wider operating temperature range (-25°C ~ 100°C versus -10°C ~ 40°C). Use FN2010-3-07 when broader frequency coverage or extended temperature operation is required.

Q: Are there packaging differences between these parts? A: Yes. The 2EB3 is supplied in bulk packaging, F1199BB02 and F1199BB03 in box packaging, and FN2010-3-07 in tray packaging. Packaging selection affects inventory management and handling but does not impact electrical or mechanical compatibility.

Q: Which substitute has the broadest regulatory certification? A: F1199BB02 and F1199BB03 (Curtis Industries) carry the most certifications: CE, CSA, TUV, and UR. The 2EB3 carries CSA, UR, and VDE. FN2010-3-07 carries CSA, ENEC, and UR. Selection should align with specific market or application certification requirements.

Q: What is the inductance specification for the substitutes? A: The 2EB3 specifies 539µH inductance. FN2010-3-07 specifies 2.5mH inductance. F1199BB02 and F1199BB03 do not provide inductance specifications in available documentation. Inductance values should be confirmed with manufacturers if this parameter is critical to the application.

Q: Are all substitutes ROHS3 compliant? A: Yes. The 2EB3, F1199BB02, F1199BB03, and FN2010-3-07 are all ROHS3 compliant. All parts are classified as EAR99 for export control purposes and share the same HTSUS code (8548.00.0000).
