SSR Relay SPST-NO 750MA 24-253V (Phoenix Contact 2967895)

Part Overview

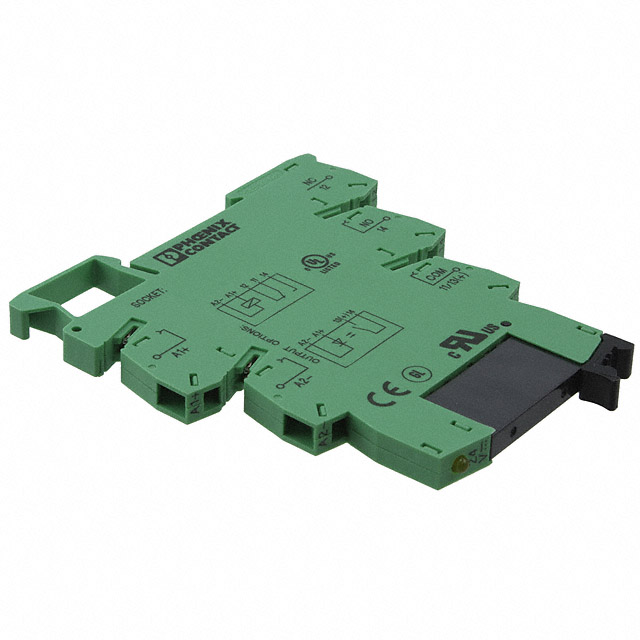

The Phoenix Contact 2967895 is a solid-state relay (SSR) module configured as SPST-NO (Single Pole Single Throw - Normally Open) with a 1 Form A circuit. This component is designed for AC load switching applications with input control at 24VDC and output capability across 24V to 253V AC range at 750mA maximum load current. The part is mounted on DIN rail and features spring terminal connections.

The 2967895 is classified as obsolete. Locating equivalent substitute components is necessary to maintain system functionality and ensure continued availability for new installations or replacements in existing applications.

Substiute Parts

2967895

Phoenix ContactIn Stock: 7142967895 Datasheet

Current PartRFQ

2900369

Phoenix ContactIn Stock: 8362900369 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 2900369 qualifies as a direct substitute for the 2967895 based on the following critical parameters that determine functional equivalence:

• Circuit Configuration: Both parts are SPST-NO (1 Form A) modules
• Output Type: Both switch AC loads
• Input Voltage: Both accept 24VDC control signal
• Load Voltage Range: Both support 24V ~ 253V output
• Load Current Rating: Both rated at 750mA maximum
• Mounting Type: Both mount on DIN rail
• Termination Style: Both use spring terminals
• Package Type: Both are module packages

The 2900369 represents an active product from the PLC-OPT series, providing current availability and ongoing manufacturer support compared to the obsolete 2967895 from the PLC-OSP series.

Parameter Comparison

Engineering Selection Recommendations

The 2900369 is the appropriate substitute for the obsolete 2967895. Both components share identical electrical and mechanical specifications across all critical switching parameters. The 2900369 offers the advantage of active product status, ensuring manufacturer support and continued availability.

The 2900369 meets ROHS3 compliance and is REACH Affected, representing current regulatory standards. The Moisture Sensitivity Level rating of 1 (Unlimited) on the 2900369 indicates no moisture sensitivity restrictions during storage and handling.

Selection of the 2900369 maintains full functional compatibility while transitioning from an obsolete platform (PLC-OSP series) to an active product line (PLC-OPT series).

Frequently Asked Questions (FAQ)

Q: Can the 2900369 directly replace the 2967895 in existing installations?

A: Yes. Both components are identical in circuit configuration (SPST-NO), input voltage (24VDC), output voltage range (24V ~ 253V), load current rating (750mA), mounting type (DIN rail), and termination style (spring terminal). Physical and electrical compatibility is confirmed.

Q: What is the difference between the PLC-OSP and PLC-OPT series?

A: The 2967895 belongs to the PLC-OSP series, which is obsolete. The 2900369 belongs to the PLC-OPT series, which is active. Both series contain SSR relay modules with identical electrical specifications for this particular model. The series designation reflects product line evolution and manufacturing updates.

Q: Are there packaging differences between these parts?

A: The 2967895 is packaged as individual units (packaging not specified). The 2900369 is supplied in bulk packaging. Both are module packages suitable for DIN rail mounting. Packaging format does not affect electrical or mechanical compatibility.

Q: Does the ROHS3 compliance of the 2900369 affect compatibility?

A: No. ROHS3 compliance is a regulatory advancement over RoHS compliance. The 2900369 meets current environmental standards while maintaining full functional equivalence to the 2967895.

Q: What does Moisture Sensitivity Level 1 (Unlimited) mean for the 2900369?

A: MSL 1 (Unlimited) indicates the component has no moisture sensitivity restrictions. It can be stored and handled without special humidity controls, simplifying logistics and inventory management compared to components with higher MSL ratings.
