TE Connectivity 2-967627-1 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

The TE Connectivity 2-967627-1 is a 12-position rectangular connector plug housing with a 5.00mm pitch, designed for free-hanging in-line mounting applications. This connector housing accommodates tab-type contacts and operates across a temperature range of -40°C to 120°C. The housing is constructed from glass-filled polyamide (PA66/Nylon 6/6) and is RoHS3 compliant with MSL Level 1 rating.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector family, enabling direct functional replacement in applications where housing color variation is acceptable.

Substiute Parts

2-967627-1

TE Connectivity AMP ConnectorsIn Stock: 11072-967627-1 Datasheet

Current PartRFQ

1-967627-5

TE Connectivity AMP ConnectorsIn Stock: 27071-967627-5 Datasheet

Parametric EquivalentRFQ

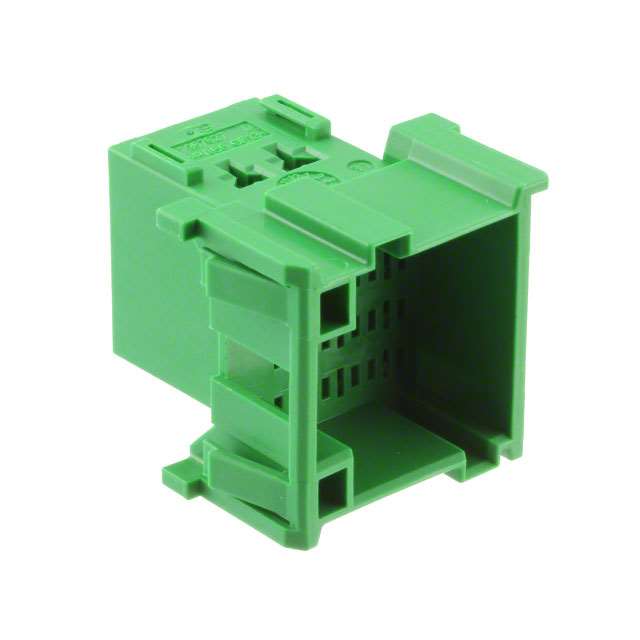

1-967627-1

TE Connectivity Deutsch ConnectorsIn Stock: 12491-967627-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 2-967627-1 are identified based on strict equivalence of the following critical parameters:

• Connector Type: Plug housing
• Number of Positions: 12
• Pitch: 0.197" (5.00mm)
• Number of Rows: 3
• Row Spacing: 0.217" (5.51mm)
• Contact Type: Tab
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
• Operating Temperature Range: -40°C to 120°C
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute parts 1-967627-1 and 1-967627-5 maintain all critical electrical and mechanical parameters. The only variation is housing color (Natural, Green, or Gray), which does not affect functional compatibility or electrical performance.

Parameter Comparison

Engineering Selection Recommendations

All three connector housings (2-967627-1, 1-967627-1, and 1-967627-5) are active products with current manufacturing status. Selection between these parts is determined by application requirements and inventory availability.

2-967627-1 (Natural): ROHS3 compliant. 999 units in stock.

1-967627-1 (Green): ROHS3 compliant. 1189 units in stock. Manufactured under TE Connectivity Deutsch Connectors division.

1-967627-5 (Gray): RoHS compliant. 2688 units in stock. Highest inventory availability.

All parts share identical electrical and mechanical specifications. Selection should be based on color coding requirements for application-specific circuit identification, connector assembly color standards, or inventory availability. No functional performance differences exist between the three options.

Frequently Asked Questions (FAQ)

Q: Can 1-967627-1 and 1-967627-5 be used interchangeably with 2-967627-1?

A: Yes. All three parts maintain identical electrical and mechanical parameters including connector type, position count, pitch, row configuration, contact type, mounting method, termination style, insulation material, and operating temperature range. Housing color is the only difference.

Q: Does housing color affect electrical performance or compatibility?

A: No. Housing color is a cosmetic variation that does not impact electrical performance, mechanical fit, or functional compatibility with mating connectors or contact assemblies.

Q: Are all three parts RoHS compliant?

A: 2-967627-1 and 1-967627-1 are ROHS3 compliant. 1-967627-5 is RoHS compliant. Both compliance levels meet current regulatory requirements.

Q: What is the significance of the different manufacturer divisions (AMP Connectors vs. Deutsch Connectors)?

A: Both divisions are part of TE Connectivity. The part 1-967627-1 is manufactured under the Deutsch Connectors division while 2-967627-1 and 1-967627-5 are manufactured under the AMP Connectors division. All parts meet identical specifications and are functionally equivalent.

Q: Are contacts included with these connector housings?

A: No. All three parts are housings only. Contacts must be sourced separately and crimped into the housing according to TE Connectivity specifications.

Q: What is MSL Level 1 and why is it important?

A: Moisture Sensitivity Level 1 (Unlimited) indicates that these connector housings have unlimited shelf life and do not require special moisture-controlled storage conditions. This simplifies inventory management and reduces handling requirements.

Q: Can I mix housing colors in a single assembly?

A: Yes, from a functional standpoint. However, application-specific design standards or color-coding requirements may dictate uniform housing color within an assembly. Consult your design documentation for color specifications.
