Phoenix Contact 2967507 SSR Relay SPST-NO 3A 3-33V Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2967507 is a solid-state relay (SSR) module configured as SPST-NO (Single Pole Single Throw - Normally Open) with a 1 Form A circuit. This component is designed for DC load switching applications with input control voltage of 24VDC and output load voltage range of 3V to 33V at 3A maximum current. The module features spring terminal connections and DIN rail mounting capability.

The 2967507 is classified as obsolete product status. Identifying equivalent substitute parts is necessary to maintain system continuity and ensure availability for new designs, repairs, and system upgrades where this legacy component is specified.

Substiute Parts

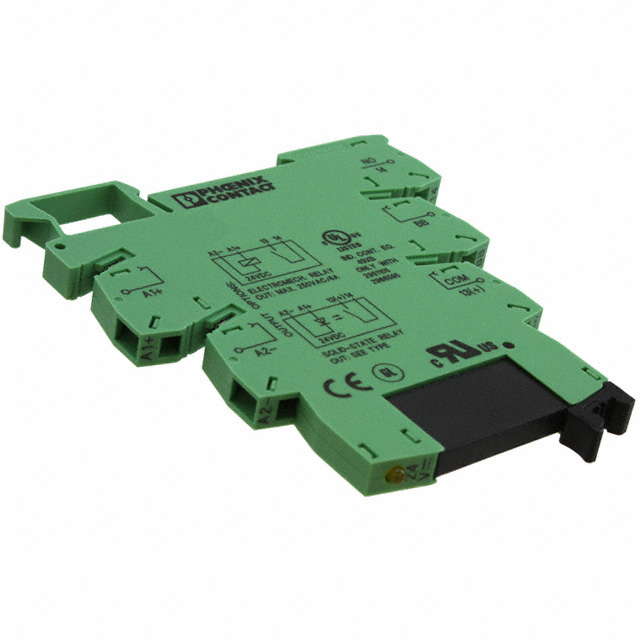

2967507

Phoenix ContactIn Stock: 11202967507 Datasheet

Current PartRFQ

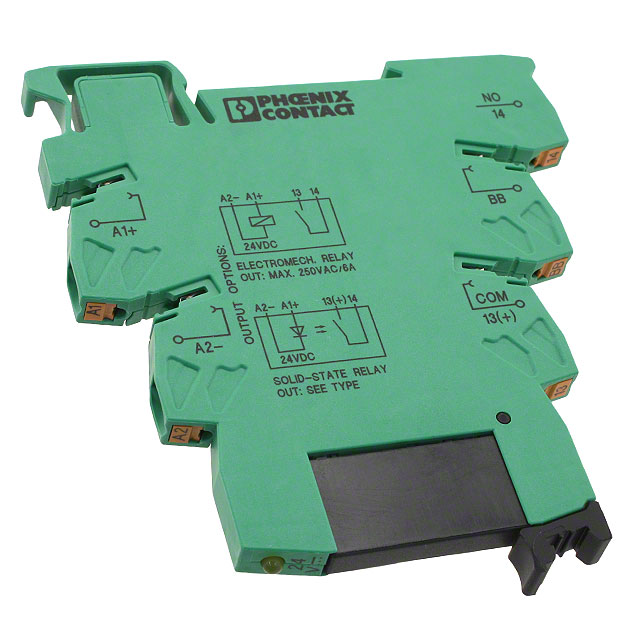

2900376

Phoenix ContactIn Stock: 8962900376 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2967507 is determined by strict equivalence across the following critical parameters:

• Circuit Configuration: Must be SPST-NO (1 Form A) to maintain identical switching logic
• Output Type: Must be DC to ensure compatible load switching characteristics
• Input Voltage: Must be 24VDC to match control signal requirements
• Load Voltage Range: Must support 3V to 33V to cover all intended load applications
• Load Current: Must be rated for minimum 3A to handle specified loads
• Mounting Type: Must be DIN Rail to ensure mechanical compatibility with existing installations
• Termination Style: Must be Spring Terminal to maintain connection compatibility
• Package Type: Must be Module to preserve form factor and installation method

The Phoenix Contact 2900376 meets all these substitution criteria while offering active product status and improved compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2900376 is the direct functional equivalent to the 2967507. Both components share identical electrical specifications across all critical switching parameters: SPST-NO circuit configuration, 24VDC input, 3V to 33V load voltage range, and 3A load current rating.

The 2900376 offers the following advantages for new designs and system replacements:

• Active Product Status: The 2900376 is actively manufactured and supported by Phoenix Contact, ensuring long-term availability and supply chain continuity
• Enhanced Compliance: ROHS3 compliance provides alignment with current regulatory requirements, compared to the RoHS compliance of the obsolete 2967507
• REACH Compliance: The 2900376 is REACH Affected, indicating compliance with European chemical substance regulations
• Improved Moisture Handling: MSL rating of 1 (Unlimited) provides superior moisture sensitivity characteristics

For applications currently using the 2967507, direct substitution with the 2900376 is electrically and mechanically valid without circuit modification or system redesign.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2900376 directly replace the 2967507 in existing installations?

A: Yes. Both components are electrically and mechanically equivalent. The 2900376 shares identical SPST-NO circuit configuration, 24VDC input voltage, 3V to 33V load voltage range, 3A load current rating, DIN rail mounting, and spring terminal connections. No circuit modifications are required.

Q: What is the primary reason to substitute the 2967507?

A: The 2967507 is classified as obsolete product status. The 2900376 is the active equivalent, ensuring continued availability for repairs, replacements, and new system designs.

Q: Are there differences in compliance certifications between these parts?

A: Yes. The 2900376 carries ROHS3 compliance and REACH Affected status, while the 2967507 is RoHS Compliant without specified REACH status. The 2900376 aligns with current regulatory standards for electronic components in the European market.

Q: Do the different series designations (PLC-OSP vs. PLC-OPT) affect compatibility?

A: No. Series designation reflects internal Phoenix Contact product line organization. The functional electrical and mechanical specifications that determine substitution compatibility are identical between the two parts.

Q: What is the moisture sensitivity level difference, and does it matter for my application?

A: The 2967507 has MSL listed as Not Applicable, while the 2900376 has MSL 1 (Unlimited). MSL 1 indicates the component can be stored indefinitely without moisture absorption concerns. This is an improvement that does not negatively affect compatibility.

Q: Are there any load current or voltage limitations when substituting?

A: No. Both components are rated for identical load specifications: 3A maximum current and 3V to 33V load voltage range. The 2900376 maintains full electrical equivalence across all load conditions within these ratings.
