Phoenix Contact 2967345 General Purpose Relay SPST 6A 24V - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2967345 is a general purpose relay with SPST-NO (1 Form A) contact configuration, designed for 24VDC coil operation on DIN rail mounting. This relay is rated for 6A switching capacity at 250VAC or 250VDC maximum switching voltage. The part is currently listed as obsolete, making identification of suitable substitute components essential for system maintenance and new design implementations where equivalent functionality is required.

Substiute Parts

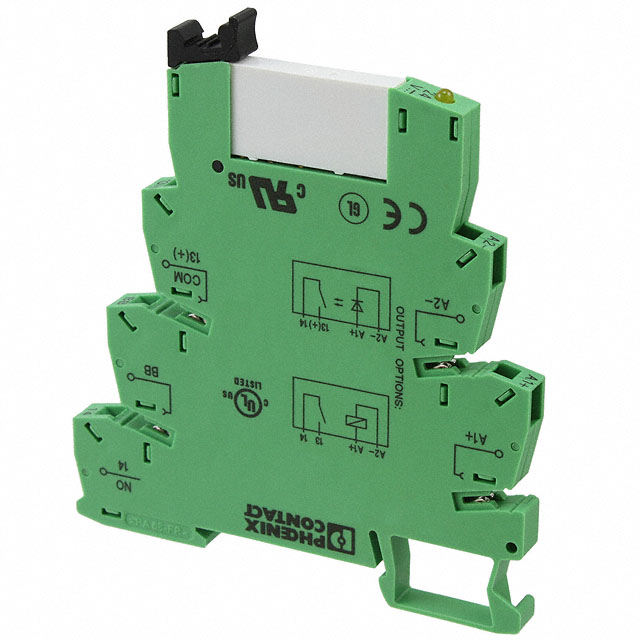

2967345

Phoenix ContactIn Stock: 7812967345 Datasheet

Current PartRFQ

2900312

Phoenix ContactIn Stock: 14452900312 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2967345 is determined by strict equivalence across the following critical parameters:

• Coil voltage specification (24VDC)
• Contact configuration (SPST-NO, 1 Form A)
• Current rating (6 A minimum)
• Maximum switching voltage (250VAC/250VDC)
• Mounting interface (DIN Rail)
• Termination method (Spring Terminal)
• Operating temperature range (-40°C ~ 60°C)
• Contact material composition (Silver Tin Oxide)

The Phoenix Contact 2900312 meets all these criteria and is classified as a direct substitute. Both relays share identical electrical performance specifications, coil characteristics, and mechanical mounting requirements. The primary distinction is product status: the 2967345 is obsolete while the 2900312 remains in active production.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2900312 is the direct substitute for the obsolete 2967345. Both relays deliver identical electrical and mechanical performance across all specified parameters. The 2900312 offers the advantage of active product status with current manufacturing support and availability. The 2900312 carries ROHS3 compliance, representing a more current regulatory certification compared to the RoHS compliance of the 2967345. Both parts maintain MSL Level 1 rating, indicating unlimited shelf life without moisture sensitivity constraints. For applications requiring the 2967345, the 2900312 provides seamless functional replacement without circuit or mechanical redesign.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2900312 directly replace the 2967345 in existing installations?

A: Yes. Both relays share identical coil voltage (24VDC), contact configuration (SPST-NO), current rating (6 A), switching voltage (250VAC/250VDC), DIN rail mounting, spring terminal termination, and operating temperature range (-40°C ~ 60°C). No circuit modifications are required.

Q: What is the primary reason for substitution?

A: The 2967345 is obsolete. The 2900312 is the active production equivalent, ensuring continued availability and manufacturing support.

Q: Are there packaging differences between these parts?

A: The 2967345 is listed with dash packaging notation, while the 2900312 is supplied in bulk packaging. Both are DIN rail mounted relays with identical form factors and mounting interfaces.

Q: Do both relays meet current compliance standards?

A: The 2967345 is RoHS Compliant. The 2900312 is ROHS3 Compliant, representing current regulatory certification. Both maintain MSL Level 1 rating with unlimited shelf life.

Q: Are the electrical performance characteristics identical?

A: Yes. Both relays operate at 9 mA coil current, deliver 5 ms operate time and 8 ms release time, use Silver Tin Oxide contact material, and support identical switching voltage and current ratings.
