Phoenix Contact 2967099 General Purpose Relay DPDT 230V Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2967099 is a general purpose relay with DPDT (Double Pole Double Throw) contact configuration, rated for 6A at 230VAC/DC coil voltage. This relay is designed for DIN rail mounting and includes a lighted indicator with integrated socket. The part is currently active in production with 15,411 units in stock inventory.

Finding equivalent and substitute parts is necessary to ensure supply chain continuity, manage inventory across multiple warehouses, and maintain operational flexibility in component sourcing for industrial control applications.

Substiute Parts

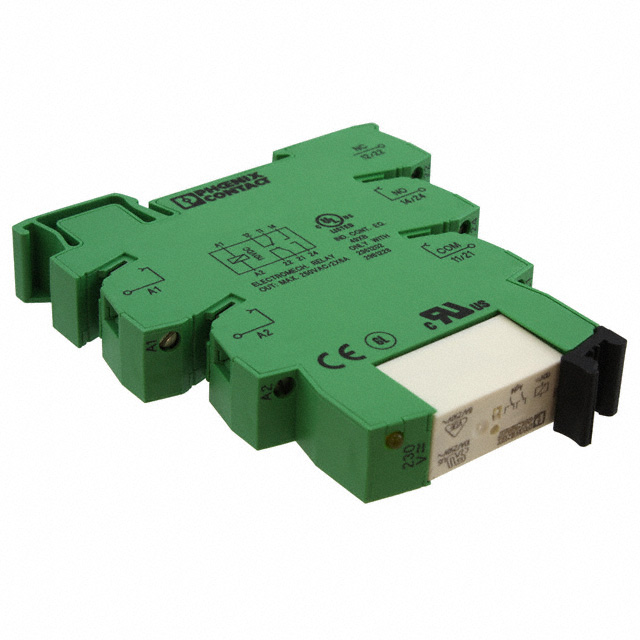

2967099

Phoenix ContactIn Stock: 154432967099 Datasheet

Current PartRFQ

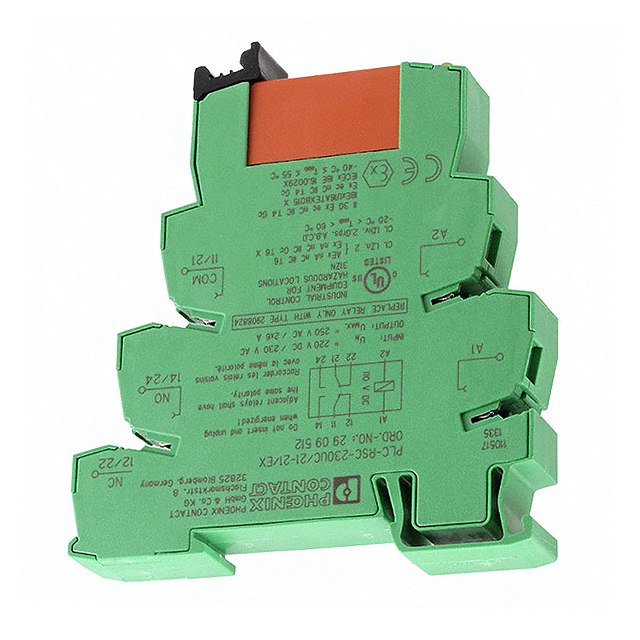

2909512

Phoenix ContactIn Stock: 10062909512 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 2967099 has one parametric equivalent substitute: 2909512. This substitution is valid based on the following critical parameters that determine functional interchangeability:

• Contact Form: Both parts are DPDT (2 Form C)
• Contact Rating: Both rated at 6 A
• Coil Voltage: Both operate at 230VAC/DC
• Switching Voltage: Both rated 250VAC, 250VDC - Max
• Coil Current: Both draw 4.5 mA
• Coil Type: Both are Non Latching
• Mounting Type: Both mount on DIN Rail
• Termination Style: Both use Screw Terminal
• Operating Temperature Range: Both operate -40°C to 55°C
• Contact Material: Both use Silver Nickel (AgNi)
• Operate/Release Times: Both have 7 ms operate and 10 ms release times
• Regulatory Compliance: Both are ROHS3 Compliant and REACH Affected

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 2967099 and 2909512 are active production parts with full regulatory compliance. The 2967099 maintains significantly higher inventory availability at 15,411 units compared to 904 units for the 2909512. Both parts meet ROHS3 and REACH compliance requirements, making either suitable for applications requiring environmental and regulatory adherence.

Selection between these parts should be based on inventory availability and supply chain requirements, as all electrical and mechanical parameters are identical.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2909512 directly replace the 2967099 in existing installations?

A: Yes. Both parts share identical electrical specifications including DPDT contact configuration, 6A current rating, 230VAC/DC coil voltage, and 250VAC/250VDC maximum switching voltage. Both use screw terminal connections and mount on DIN rail, ensuring mechanical and electrical compatibility.

Q: Are there differences in coil performance between these two relays?

A: No. Both parts have identical coil specifications: 230VAC/DC voltage, 4.5 mA current draw, non-latching operation, 7 ms operate time, and 10 ms release time.

Q: Do both parts support the same operating temperature range?

A: Yes. Both the 2967099 and 2909512 operate across the identical temperature range of -40°C to 55°C.

Q: What is the difference between these two part numbers if all parameters are the same?

A: The parts are parametrically equivalent with identical functional specifications. The difference lies in base product number designation (29670 versus 29095) and inventory levels, with the 2967099 having substantially higher stock availability.

Q: Are both parts RoHS and REACH compliant?

A: Yes. Both the 2967099 and 2909512 are ROHS3 Compliant and REACH Affected, meeting current environmental and regulatory requirements.

Q: Can these relays be used interchangeably in control circuits requiring 230V coil operation?

A: Yes. Both parts are rated for 230VAC/DC coil voltage with identical contact ratings and switching specifications, making them fully interchangeable for control applications within the specified electrical parameters.
