Phoenix Contact 2963815 AC Power Connector - Equivalent & Substitute Parts

Part Overview

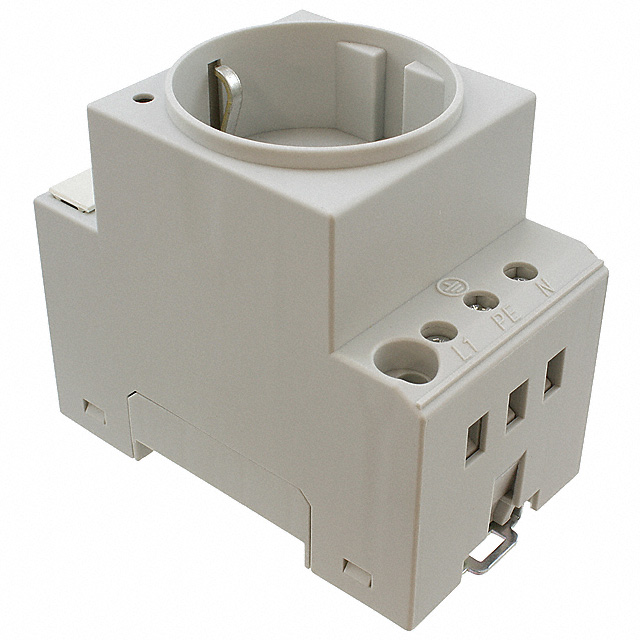

The Phoenix Contact 2963815 is an AC power entry receptacle featuring CEE 7/4 (Schuko) connectors with female sockets, designed for DIN rail mounting using screw termination. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing system maintenance and new design implementations. The part provides IP20 ingress protection and meets EAC and VDE approval standards with RoHS compliance.

Substiute Parts

2963815

Phoenix ContactIn Stock: 6872963815 Datasheet

Current PartRFQ

0804024

Phoenix ContactIn Stock: 11490804024 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2963815 is determined by the following critical parameters:

• Connector Style & Type: CEE 7/4 (Schuko) receptacle with female sockets
• Mounting Configuration: DIN rail mounting
• Termination Method: Screw termination
• Position Count: 2-position connector
• Electrical Category: AC power entry receptacle

The substitute part 0804024 maintains identical specifications across all functional parameters that define the connector's role within AC power distribution systems. Both parts are manufactured by Phoenix Contact and share the same connector interface standard, mounting methodology, and termination approach.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 0804024 serves as the direct active equivalent for the obsolete 2963815. Both components share identical connector interface specifications, mounting architecture, and termination methodology. The 0804024 maintains current production status with ROHS3 compliance, providing enhanced regulatory alignment compared to the original RoHS Compliant designation of the 2963815. The substitute part carries VDE approval certification, meeting the primary regulatory requirement of the original component. Selection of the 0804024 ensures continuity of AC power distribution functionality while transitioning from obsolete to active inventory status.

Frequently Asked Questions (FAQ)

Q: Can the 0804024 directly replace the 2963815 in existing installations?

A: Yes. Both components feature identical CEE 7/4 (Schuko) connector geometry, 2-position configuration, DIN rail mounting, and screw termination. The electrical and mechanical interfaces are equivalent.

Q: What is the difference in packaging between these parts?

A: The 2963815 is supplied with standard packaging, while the 0804024 is available in bulk packaging. This distinction affects inventory management and procurement processes but does not alter component functionality.

Q: Are there differences in regulatory compliance between the two parts?

A: The 0804024 carries ROHS3 Compliant status with VDE approval, while the 2963815 holds RoHS Compliant status with EAC and VDE approval. Both meet the core regulatory requirements for AC power connector applications. The 0804024 represents the current compliance standard.

Q: What is the ingress protection rating difference?

A: The 2963815 specifies IP20 ingress protection. The 0804024 does not list a specific ingress protection rating in available documentation. For applications requiring confirmed IP20 protection, verify the 0804024 specification with Phoenix Contact technical resources.

Q: Is the 0804024 suitable for new design implementations?

A: Yes. The 0804024 is classified as active product status, making it the appropriate selection for new designs requiring CEE 7/4 (Schuko) DIN rail-mounted power entry receptacles with screw termination.
