Phoenix Contact 2962722 Interface Module Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2962722 is a 9-position interface module terminal block designed for screw connection to D-Sub female connectors. This component serves as a process-side interface for signal and power distribution in industrial control applications. The part is currently active in production with full RoHS compliance and unlimited moisture sensitivity rating, making it suitable for standard industrial environments operating between -20°C and 50°C.

Substitute parts are identified when equivalent functional performance can be maintained within the allowed electrical and mechanical parameter ranges for this terminal block category.

Substiute Parts

2962722

Phoenix ContactIn Stock: 10782962722 Datasheet

Current PartRFQ

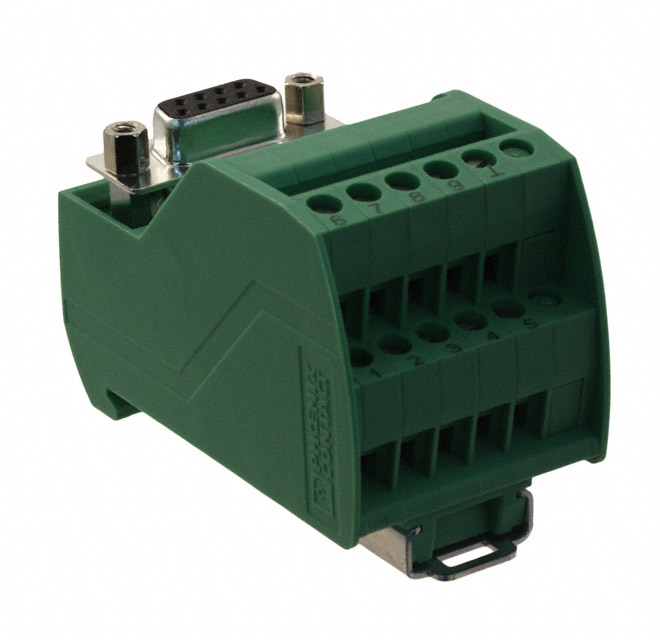

2315162

Phoenix ContactIn Stock: 12172315162 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 2962722 is determined by the following critical parameters:

• Connector Configuration: Both main and substitute parts must maintain 9-position D-Sub female interface with jackscrew socket retention
• Connection Type: Screw connection on process side is mandatory for functional equivalence
• Electrical Ratings: Rated voltage of 125V is required; current rating per contact may vary within acceptable industrial ranges
• Wire Gauge Compatibility: Wire gauge ranges must overlap or be compatible with standard installation practices
• Environmental Compliance: RoHS compliance status and MSL rating must meet or exceed the main part specifications
• Operating Temperature: Temperature range must encompass or match the -20°C to 50°C specification

The Phoenix Contact 2315162 meets these substitution criteria within the allowed parameter variance for this terminal block category.

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 2962722 and 2315162 are active production components with equivalent RoHS compliance and unlimited moisture sensitivity ratings. Selection between these parts is based on the following provided specifications:

Current Rating Consideration: The 2962722 provides 2.5 A per contact, while the 2315162 provides 2 A per contact. Applications requiring the full 2.5 A rating must use the 2962722.

Wire Gauge Range: The 2962722 accommodates 16-26 AWG wire, while the 2315162 accommodates 12-24 AWG wire. The overlap range of 16-24 AWG is suitable for both parts. Applications using 25-26 AWG wire require the 2962722; applications using 12-15 AWG wire require the 2315162.

Physical Dimensions: The 2962722 measures 2.126" × 1.772" (54.00mm × 45.00mm), while the 2315162 measures 1.366" × 2.579" (34.70mm × 65.50mm). Space constraints in the installation environment may determine part selection.

Series Compatibility: The 2962722 belongs to the VARIOFACE UM series, while the 2315162 belongs to the VARIOFACE VIP series. Both series maintain the same connector interface standard.

Frequently Asked Questions (FAQ)

Q: Can the 2315162 substitute for the 2962722 in all applications?

A: Substitution is valid only when the application current requirement does not exceed 2 A per contact and wire gauge is within the 16-24 AWG range. Applications requiring 2.5 A per contact or using 25-26 AWG wire must use the 2962722.

Q: What is the significance of the wire gauge difference between these parts?

A: Wire gauge range defines the acceptable conductor sizes for screw terminal connection. The 2962722 supports larger gauge wire (25-26 AWG) than the 2315162. Selection depends on the actual wire gauge used in the installation.

Q: Are both parts RoHS compliant?

A: Yes. The 2962722 is RoHS Compliant, and the 2315162 is ROHS3 Compliant. Both meet RoHS requirements for hazardous substance restriction.

Q: Do the physical dimension differences affect substitution?

A: Yes. The parts have different footprints (2962722: 54.00mm × 45.00mm; 2315162: 34.70mm × 65.50mm). Installation space availability may restrict which part can be used in a given application.

Q: What is the operating temperature range for both parts?

A: Both the 2962722 and 2315162 operate within -20°C to 50°C. This range is identical for both parts.

Q: Are there packaging differences between these parts?

A: Yes. The 2962722 is supplied in Bulk packaging, while the 2315162 is supplied in Box packaging. This affects procurement and inventory management but not functional performance.
