Phoenix Contact 2954390 SSR Relay SPST-NO Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2954390 is a solid-state relay (SSR) module configured as SPST-NO (Single Pole Single Throw - Normally Open) with a 500 mA load capacity. This component operates with a 24 VDC input signal and supports load voltages between 22 V and 35 V. The module features screw terminal connections and is designed for DIN rail mounting.

The 2954390 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain system functionality and ensure continued availability for replacement, repair, and new installations where this specification is required.

Substiute Parts

2954390

Phoenix ContactIn Stock: 10392954390 Datasheet

Current PartRFQ

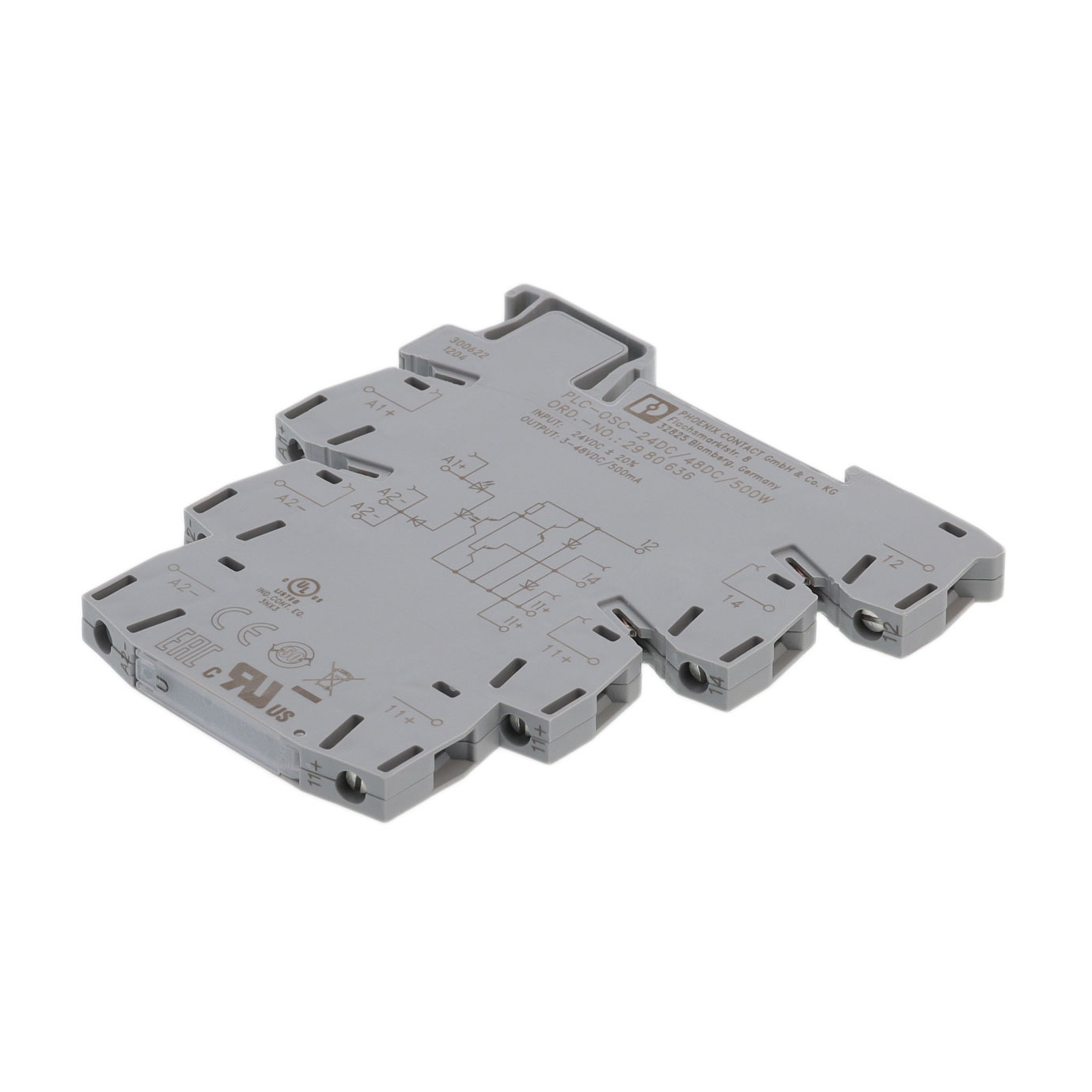

2980636

Phoenix ContactIn Stock: 10162980636 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2954390 is determined by the following critical parameters:

• Circuit Configuration: Must remain SPST-NO (1 Form A) to maintain identical switching functionality
• Output Type: Must be DC to ensure compatibility with the load circuit
• Input Voltage: Must support 24 VDC control signal
• Load Current Rating: Must support minimum 500 mA continuous operation
• Mounting Type: Must support DIN rail installation for mechanical compatibility
• Termination Style: Must use screw terminals for connection compatibility
• Package Type: Must be a module format

The substitute part Phoenix Contact 2980636 meets all these criteria. While the load voltage range differs (3 V ~ 48 V versus 22 V ~ 35 V), the 2980636 encompasses the original voltage specification, making it functionally compatible for applications requiring the 22 V to 35 V range. The 2980636 is an active product with enhanced compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2980636 is the direct substitute for the obsolete 2954390. Both components share identical circuit configuration, input voltage, load current rating, mounting type, and termination style. The 2980636 provides an expanded load voltage range that fully encompasses the original specification.

The 2980636 offers additional advantages: it maintains active product status, ensuring long-term availability and support; it meets ROHS3 compliance, representing current regulatory standards; and it includes REACH compliance documentation. The component is available in bulk packaging and maintains the same moisture sensitivity classification.

For applications currently using the 2954390, direct replacement with the 2980636 is supported without circuit modification or redesign.

Frequently Asked Questions (FAQ)

Q: Can the 2980636 directly replace the 2954390 in existing installations?

A: Yes. Both components share identical SPST-NO circuit configuration, 24 VDC input voltage, 500 mA load current rating, DIN rail mounting, and screw terminal connections. The 2980636 load voltage range (3 V ~ 48 V) encompasses the original specification (22 V ~ 35 V), ensuring full compatibility.

Q: What is the primary difference between these two parts?

A: The 2954390 is obsolete; the 2980636 is active. The 2980636 features an expanded load voltage range and meets current compliance standards (ROHS3 and REACH). Both maintain identical electrical and mechanical specifications for the 22 V to 35 V operating range.

Q: Are there any packaging differences?

A: The 2954390 is supplied in standard packaging; the 2980636 is supplied in bulk packaging. Both are module-format components designed for DIN rail installation with screw terminal connections.

Q: Does the expanded voltage range of the 2980636 affect performance in the original 22 V to 35 V application?

A: No. The expanded range indicates enhanced capability. The 2980636 is fully rated for operation throughout the 22 V to 35 V range and maintains identical load current specifications.

Q: What compliance certifications apply to each part?

A: The 2954390 is RoHS Compliant. The 2980636 is ROHS3 Compliant and REACH Affected, representing current regulatory requirements for electronic components.
