TE Connectivity AMP Connectors 2-928344-2 Equivalent & Substitute Parts

Part Overview

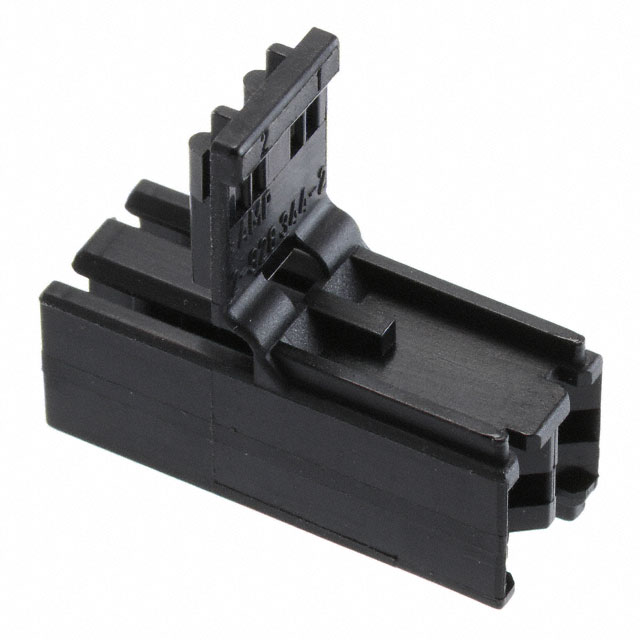

The TE Connectivity AMP Connectors 2-928344-2 is a rectangular connector housing designed for receptacle applications. This 2-position connector operates at a 0.197" (5.00mm) pitch and features a friction lock fastening mechanism with crimp-style contact termination. The part is manufactured from Polyamide (PA66), Nylon 6/6 insulation material and maintains an operating temperature range of -40°C to 105°C. The product is currently active and RoHS compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across alternative configurations, particularly when color variants or inventory availability necessitate component alternatives.

Substiute Parts

2-928344-2

TE Connectivity AMP ConnectorsIn Stock: 10322-928344-2 Datasheet

Current PartRFQ

928344-2

TE Connectivity AMP ConnectorsIn Stock: 5188928344-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 2-928344-2 rectangular connector is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 2
• Pitch: 0.197" (5.00mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Friction Lock
• Insulation Material: Polyamide (PA66), Nylon 6/6
• Operating Temperature Range: -40°C to 105°C
• RoHS Compliance: Yes

Variable Parameters Permitting Substitution:

• Color (Black or Natural)
• Inventory availability

The substitute part 928344-2 maintains complete electrical and mechanical equivalence to the primary part 2-928344-2, with the only distinction being the housing color specification (Natural versus Black) and base product number designation.

Parameter Comparison

Engineering Selection Recommendations

Both the primary part 2-928344-2 and the substitute part 928344-2 are active products manufactured by TE Connectivity AMP Connectors and carry RoHS compliance certification. Selection between these parts is based on the following engineering considerations:

Primary Part (2-928344-2 - Black):

• Current inventory: 1002 pieces
• Housing color: Black
• Select when black housing color is specified in design documentation or when visual identification requirements mandate dark-colored connectors

Substitute Part (928344-2 - Natural):

• Current inventory: 5167 pieces
• Housing color: Natural
• Select when housing color is not a functional requirement or when natural color is acceptable per design specifications
• Higher inventory availability supports supply chain continuity

Both parts maintain identical electrical performance, mechanical compatibility, and environmental operating specifications. The selection between these parts is determined solely by color requirement and inventory availability, with no functional performance differentiation.

Frequently Asked Questions (FAQ)

Q: Are the 2-928344-2 and 928344-2 parts electrically interchangeable?

A: Yes. Both parts are electrically identical, featuring the same 2-position receptacle configuration, 0.197" (5.00mm) pitch, female socket contact type, and crimp termination method. They operate across the identical temperature range of -40°C to 105°C.

Q: What is the only difference between these two parts?

A: The housing color differs between the parts. The 2-928344-2 features a black housing, while the 928344-2 features a natural (undyed) housing. All other electrical, mechanical, and material specifications are identical.

Q: Can I substitute the natural-colored part for the black part in my application?

A: Substitution is permissible when housing color is not a functional or design requirement. If color specification is critical to your application (for example, for visual identification or aesthetic purposes), the black variant must be used.

Q: Are both parts RoHS compliant?

A: Yes. Both the 2-928344-2 and 928344-2 are RoHS compliant and carry Moisture Sensitivity Level 1 (Unlimited) rating.

Q: What is the mounting configuration for these connectors?

A: Both parts are configured as Free Hanging (In-Line) connectors with friction lock fastening and crimp-style contact termination. Contacts are not included with the housing and must be ordered separately.

Q: Do these parts require any special handling or storage conditions?

A: Both parts carry Moisture Sensitivity Level 1, indicating unlimited shelf life with no special moisture control requirements during storage or handling.

Q: Can I use these connectors in applications exceeding 105°C?

A: No. Both parts are rated for a maximum operating temperature of 105°C. Applications requiring higher temperature operation require alternative connector housings with higher thermal ratings.
