TE Connectivity AMP Connectors 2-928247-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 2-928247-2 is a 2-position rectangular connector receptacle housing with 5.00mm pitch, designed for free-hanging in-line mounting applications. This component features crimp contact termination and latch lock fastening. The part is classified as obsolete, necessitating identification of active equivalent and substitute components for ongoing design and procurement requirements. Substitute parts maintain functional compatibility through matching electrical and mechanical parameters while offering active product status and improved availability.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	2
Pitch	0.197" (5.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Moisture Sensitivity Level (MSL)	1 (Unlimited)
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 2-928247-2 is determined by strict equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (2), pitch (5.00mm), number of rows (1), mounting type (free hanging in-line), contact termination (crimp), and fastening type (latch lock). All identified substitute parts maintain these core electrical and mechanical specifications. Variations in color, insulation material, operating temperature range, and packaging format do not affect functional interchangeability within the connector housing category. Parts are grouped by product status and compliance certifications to facilitate procurement decisions based on availability and regulatory requirements.

Parameter Comparison

Part Number	Manufacturer	Connector Type	Contact Type	Positions	Pitch	Rows	Mounting Type	Termination	Fastening	Color	Product Status	RoHS Status	MSL	Inventory (Pcs)
2-928247-2	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Pink	Obsolete	ROHS3 Compliant	1 (Unlimited)	765
6-928247-2	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Natural	Active	RoHS Compliant	Not Applicable	11099
1-144545-9	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	White	Active	RoHS Compliant	1 (Unlimited)	977
1241961-1	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Natural	Active	ROHS3 Compliant	1 (Unlimited)	3352
1241961-3	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Natural	Active	ROHS3 Compliant	1 (Unlimited)	2481

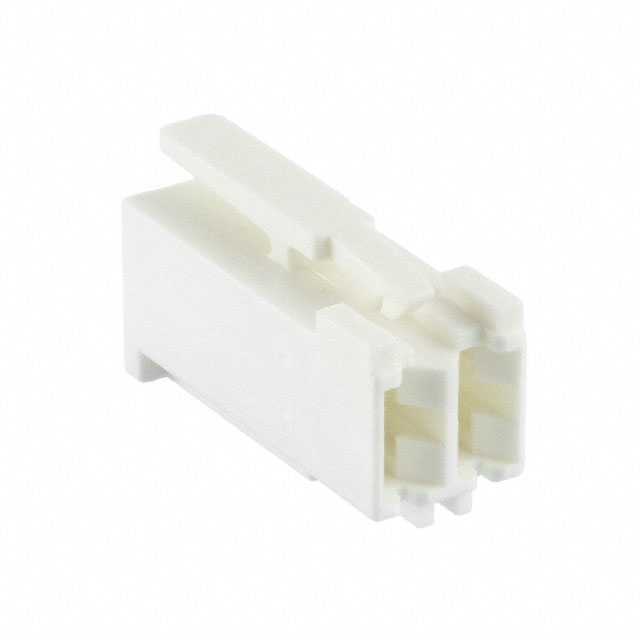

1241965-2	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Natural	Active	ROHS3 Compliant	1 (Unlimited)	7295
2-969484-2	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Natural	Active	ROHS3 Compliant	1 (Unlimited)	1050

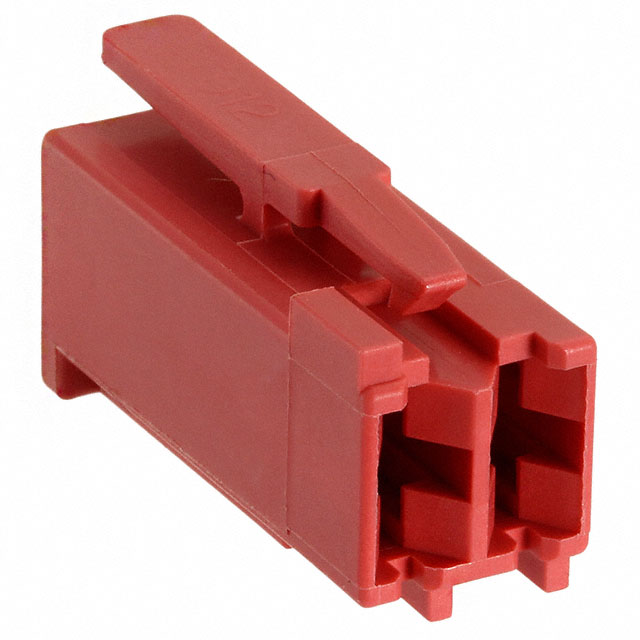

4-1241965-2	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Red	Active	ROHS3 Compliant	1 (Unlimited)	799
4-1955422-3	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Natural	Active	ROHS3 Compliant	1 (Unlimited)	1826
5-1241983-3	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Blue	Active	ROHS3 Compliant	1 (Unlimited)	711
5-969484-2	TE Connectivity AMP	Receptacle	Female Socket	2	5.00mm	1	Free Hanging (In-Line)	Crimp	Latch Lock	Natural	Active	ROHS3 Compliant	Not Applicable	685

Engineering Selection Recommendations

All identified substitute parts maintain full functional equivalence to the 2-928247-2 across critical electrical and mechanical parameters. The primary distinction between candidates is product status: the original part is obsolete, while all substitutes are active components with current manufacturing support.

For new designs and ongoing procurement, selection should prioritize active parts with ROHS3 compliance and MSL rating of 1 (Unlimited). The 6-928247-2 offers the highest inventory availability (11,099 pieces) with active status and RoHS compliance, making it the primary substitute for high-volume applications. The 1241965-2 provides the second-highest inventory (7,295 pieces) with ROHS3 compliance and unlimited MSL rating, suitable for applications requiring enhanced regulatory alignment with the original part's compliance profile.

Color variants (natural, white, red, blue) are available across the substitute portfolio. Selection of color-specific variants should be based on application requirements and assembly documentation. All substitutes maintain identical connector housing functionality regardless of color designation.

Parts designated with MSL rating of "Not Applicable" (6-928247-2, 5-969484-2) are suitable for applications without moisture sensitivity constraints. Parts with MSL 1 (Unlimited) designation provide broader environmental compatibility and are recommended for moisture-sensitive applications.

Frequently Asked Questions (FAQ)

Q: Can the 2-928247-2 be directly replaced with any of the listed substitute parts?

A: Yes. All listed substitute parts maintain identical electrical and mechanical specifications across connector type, contact configuration, pitch, mounting method, and termination type. Direct substitution is functionally valid without circuit redesign or mechanical modification.

Q: Does the color difference between substitute parts affect compatibility?

A: No. Color is a cosmetic designation and does not affect electrical or mechanical performance. Color selection should be based on assembly documentation, circuit board labeling conventions, or application-specific identification requirements.

Q: What is the significance of the MSL (Moisture Sensitivity Level) rating difference?

A: MSL 1 (Unlimited) indicates the component has no moisture sensitivity restrictions and can be stored and handled under standard conditions indefinitely. MSL "Not Applicable" indicates the component does not require moisture-sensitive device handling procedures. Both ratings are suitable for standard industrial applications. Applications with specific moisture exposure requirements should reference the operating environment specifications.

Q: Why is the original 2-928247-2 listed as obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. Active substitute parts are available with equivalent specifications and current manufacturing support, ensuring long-term supply chain reliability.

Q: Are there differences in insulation material between substitute parts?

A: Yes. Substitute parts specify various insulation materials including Polyamide (PA), Polyamide (PA6), Polyamide (PA66), and Nylon variants. These material differences do not affect connector housing interchangeability. Material selection is determined by the manufacturer's design specifications and does not impact functional compatibility in the connector housing category.

Q: Which substitute part should be selected for maximum inventory availability?

A: The 6-928247-2 provides the highest current inventory at 11,099 pieces with active product status and RoHS compliance.

Q: Do operating temperature ranges vary between substitute parts?

A: Yes. Operating temperature specifications range from -40°C to 105°C or -40°C to 110°C depending on the specific part number. Some parts do not specify operating temperature in the provided data. For applications with specific temperature requirements, verify the operating temperature range against application specifications.

Q: What packaging formats are available for substitute parts?

A: Substitute parts are available in Bulk packaging format. The original part packaging designation was not specified. Bulk packaging is standard for connector housing components and is suitable for manufacturing assembly operations.
