Phoenix Contact 2912507 General Purpose Relay DPDT 24VDC Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2912507 is a general purpose relay with DPDT (2 Form C) contact configuration, rated for 6A at 24VDC coil voltage. This relay is designed for DIN rail mounting with spring terminal connections and includes a lighted indicator and socket. The part is currently obsolete, making equivalent substitutes necessary for ongoing system maintenance and new designs requiring identical electrical and mechanical performance characteristics.

Substiute Parts

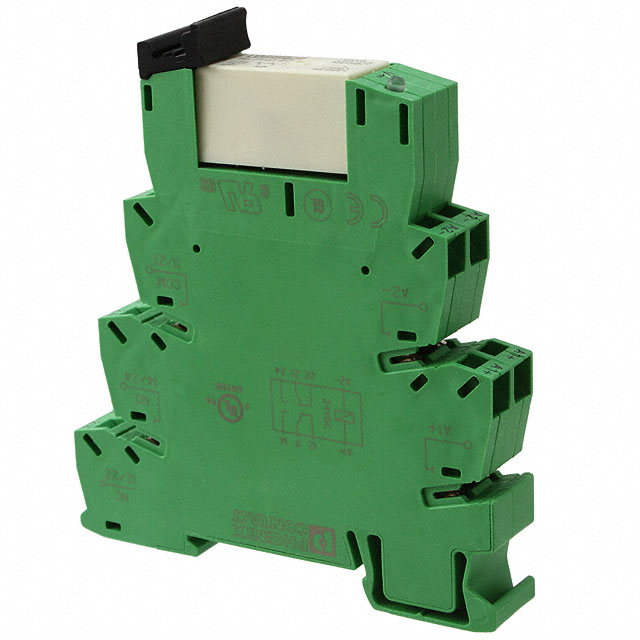

2912507

Phoenix ContactIn Stock: 12012912507 Datasheet

Current PartRFQ

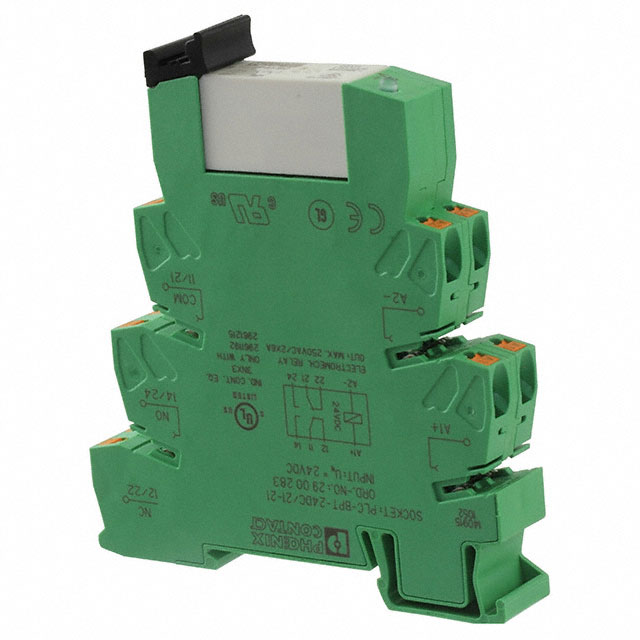

2900330

Phoenix ContactIn Stock: 11262900330 Datasheet

DirectRFQ

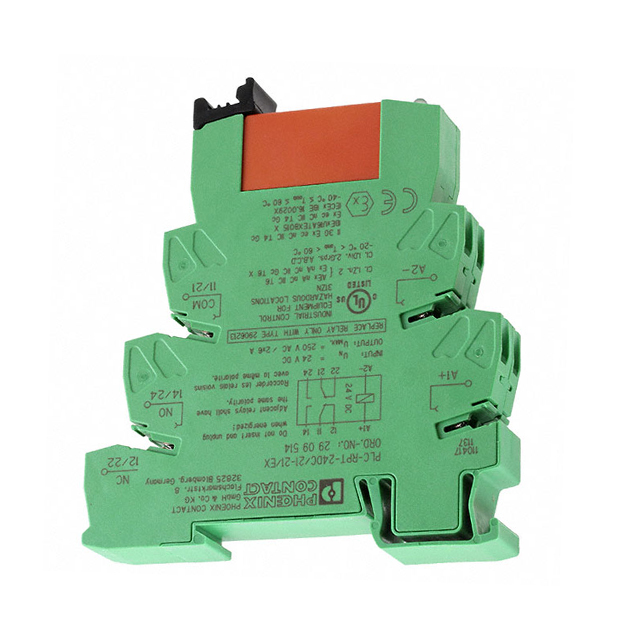

2909514

Phoenix ContactIn Stock: 10612909514 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 2912507 are qualified based on strict electrical and mechanical parameter matching:

Critical Matching Parameters:

• Coil voltage: 24VDC
• Contact configuration: DPDT (2 Form C)
• Contact current rating: 6 A
• Switching voltage: 250VAC, 250VDC - Max
• Mounting type: DIN Rail
• Coil current: 18 mA
• Termination style: Spring Terminal
• Contact material: Silver Nickel (AgNi)
• Operating temperature range: -40°C ~ 60°C
• Timing characteristics: 8 ms operate, 10 ms release

All identified substitutes meet these parameters identically. Substitutes are differentiated by product status (active vs. obsolete) and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

2900330 (Direct Manufacturer Substitute): This part is the primary substitute for the obsolete 2912507. Both parts are manufactured by Phoenix Contact and share identical electrical and mechanical specifications. The 2900330 is currently in active production status with ROHS3 compliance and REACH affected designation, providing long-term availability and regulatory compliance for new designs and system replacements.

2909514 (Parametric Equivalent): This part provides an alternative substitute with identical functional parameters to the 2912507. The 2909514 is also in active production with ROHS3 compliance and REACH affected status. Selection between 2900330 and 2909514 may be based on packaging availability (both supplied in bulk) and inventory levels.

Both substitutes are electrically and mechanically interchangeable with the obsolete 2912507 for all applications requiring a 24VDC DPDT general purpose relay with 6A contact rating and DIN rail mounting.

Frequently Asked Questions (FAQ)

Q: Can 2900330 or 2909514 directly replace the obsolete 2912507? A: Yes. Both substitutes meet all electrical and mechanical parameters of the 2912507, including coil voltage, contact configuration, current rating, switching voltage, mounting type, and timing characteristics. Direct substitution is supported without circuit modification.

Q: What is the difference between the 2900330 and 2909514 substitutes? A: Both parts are parametrically identical to the 2912507. The primary differences are series designation (PLC-RPT for both versus PLC-RSP for the original) and base product numbers. Both are active production parts with equivalent compliance certifications.

Q: Are there packaging differences between these substitutes? A: The 2912507 was supplied with standard packaging. Both 2900330 and 2909514 are supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Do the substitutes maintain the same DIN rail mounting and spring terminal connections? A: Yes. All three parts use identical DIN rail mounting and spring terminal termination styles, ensuring mechanical compatibility in existing installations.

Q: What compliance certifications apply to the substitute parts? A: Both 2900330 and 2909514 are ROHS3 compliant and REACH affected. The original 2912507 was RoHS compliant. Confirm compliance requirements for your specific application.

Q: Are the operating temperature ranges identical? A: Yes. All three parts operate across the same temperature range of -40°C to 60°C.
