Phoenix Contact 2909532 General Purpose Relay SPDT 10A 24VDC - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2909532 is a general purpose relay with Single Pole Double Throw (SPDT) contact configuration, rated for 10A at 24VDC coil voltage. This DIN rail-mounted relay is designed for industrial control applications requiring reliable switching of AC and DC loads. The part is currently active in production with full RoHS3 compliance and REACH compliance status. Equivalent substitute parts may be required due to inventory availability, supply chain considerations, or specific project sourcing requirements.

Substiute Parts

2909532

Phoenix ContactIn Stock: 10902909532 Datasheet

Current PartRFQ

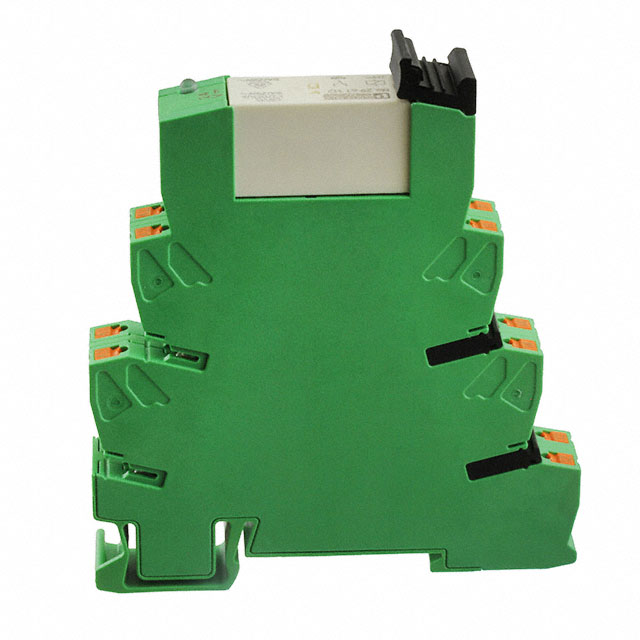

2900291

Phoenix ContactIn Stock: 12502900291 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 2900291 is a parametric equivalent to the 2909532 within the PLC-RPT series. Substitution is valid based on the following critical parameters that remain identical across both parts:

• Coil voltage specification: 24VDC
• Contact configuration: SPDT (1 Form C)
• Current rating: 10 A
• Switching voltage capability: 250VAC, 250VDC - Max
• Coil current draw: 18 mA
• Coil type: Non Latching
• Mounting interface: DIN Rail
• Termination method: Spring Terminal
• Operating temperature range: -40°C ~ 60°C
• Contact material composition: Silver Nickel (AgNi)
• Regulatory compliance: ROHS3 Compliant, REACH Affected

Both parts belong to the same manufacturer series and share identical electrical and mechanical specifications, making them functionally interchangeable for applications requiring these parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 2909532 and 2900291 are active production parts with full RoHS3 compliance and REACH compliance status. Selection between these parts should be based on inventory availability and project sourcing requirements, as all electrical, mechanical, and regulatory specifications are identical. Both parts carry EAR99 export classification and fall under HTSUS code 8536.41.0050. No technical differentiation exists between these components for standard industrial control applications.

Frequently Asked Questions (FAQ)

Q: Are the 2909532 and 2900291 fully interchangeable? A: Yes. Both parts share identical electrical specifications (24VDC coil, 10A SPDT contact configuration, 250VAC/250VDC switching capability), mechanical mounting (DIN Rail with spring terminals), and regulatory compliance status (ROHS3, REACH). Direct substitution is valid without circuit modification.

Q: What determines if a relay can substitute for the 2909532? A: Substitution requires matching the following parameters: 24VDC coil voltage, SPDT contact form, 10A current rating, 250VAC/250VDC switching voltage capability, 18mA coil current, non-latching coil type, DIN Rail mounting, spring terminal termination, -40°C to 60°C operating temperature range, and Silver Nickel contact material.

Q: Do both parts have the same packaging and features? A: Yes. Both the 2909532 and 2900291 include lighted indicator functionality and socket inclusion. Both are supplied in bulk packaging and feature identical spring terminal termination.

Q: Are there any compliance differences between these parts? A: No. Both parts are ROHS3 compliant, REACH affected, and carry EAR99 export classification with identical HTSUS coding (8536.41.0050).

Q: What is the switching speed difference between these relays? A: Both parts have identical switching characteristics: 8 millisecond operate time and 10 millisecond release time.
