Phoenix Contact 2909511 General Purpose Relay DPDT 120V - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2909511 is a general purpose relay with DPDT (Double Pole Double Throw) contact configuration, rated for 6A at 120VAC/DC coil voltage. This DIN rail-mounted relay features a lighted indicator, socket inclusion, and screw terminal termination. The part is currently active in production with 846 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the PLC-RSC series, ensuring direct functional replacement without circuit redesign.

Substiute Parts

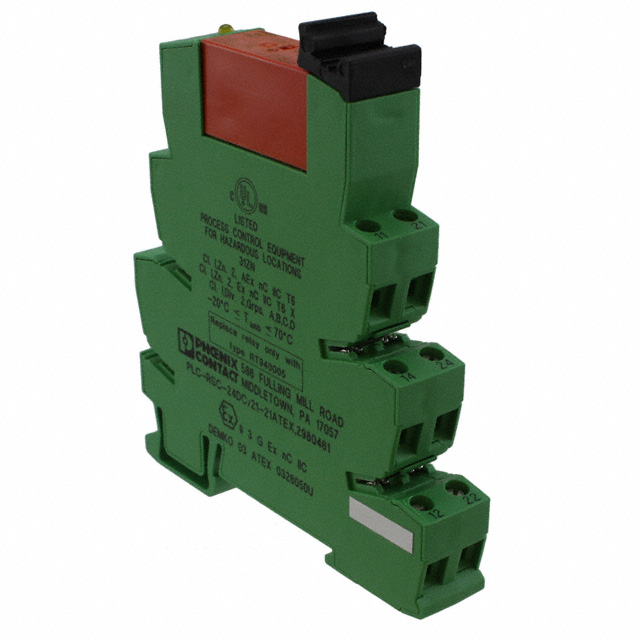

2909511

Phoenix ContactIn Stock: 9132909511 Datasheet

Current PartRFQ

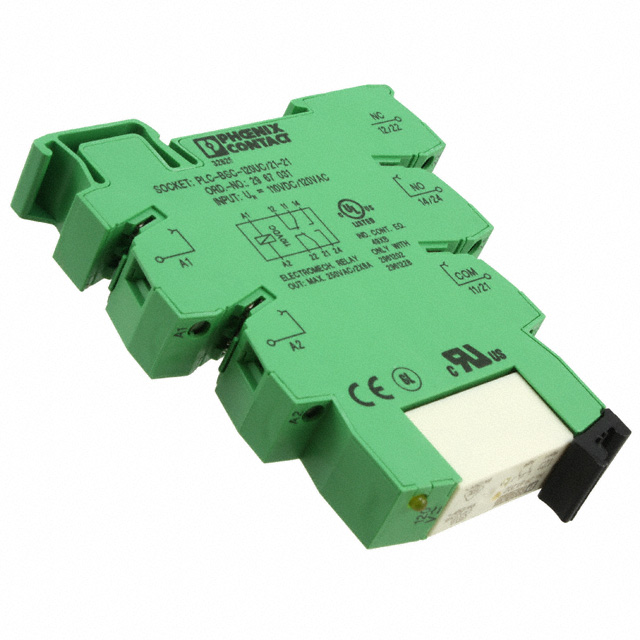

2967086

Phoenix ContactIn Stock: 7762967086 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 2909511 are identified within the PLC-RSC series based on electrical and mechanical parameter equivalence. The substitution criteria are:

Critical Parameters for Substitution:

• Coil Voltage: 120VAC/DC
• Contact Form: DPDT (2 Form C)
• Contact Rating: 6 A
• Switching Voltage: 250VAC, 250VDC - Max
• Coil Current: 4.5 mA
• Coil Type: Non Latching
• Mounting Type: DIN Rail
• Termination Style: Screw Terminal
• Operating Temperature Range: -40°C ~ 60°C
• Contact Material: Silver Nickel (AgNi)

The Phoenix Contact 2967086 meets all critical electrical and mechanical parameters, maintaining identical functional performance and circuit compatibility with the 2909511.

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 2909511 and 2967086 are active production parts with full ROHS3 compliance and REACH affected status. Selection between these parts should be based on inventory availability and supply chain considerations. The 2909511 maintains higher stock levels at 846 units, while the 2967086 provides an alternative with 753 units available. Both parts carry identical electrical ratings, mechanical specifications, and regulatory certifications, making them functionally interchangeable in DIN rail-mounted control circuits requiring DPDT 6A 120VAC/DC relay functionality.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2967086 directly replace the 2909511 in existing installations?

A: Yes. Both parts are electrically and mechanically equivalent within the PLC-RSC series. They share identical coil voltage (120VAC/DC), contact configuration (DPDT), current rating (6A), switching voltage (250VAC/250VDC), termination style (screw terminal), and DIN rail mounting. No circuit modifications are required.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is determined by matching coil voltage, contact form (DPDT), contact current rating (6A), switching voltage limits, coil current (4.5 mA), mounting type (DIN Rail), termination style (screw terminal), and operating temperature range (-40°C to 60°C). All these parameters are identical between the 2909511 and 2967086.

Q: Are there differences in packaging or inventory between these parts?

A: Both parts are supplied in bulk packaging. The 2909511 has 846 units in stock, while the 2967086 has 753 units available. Packaging format and handling specifications are equivalent.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both the 2909511 and 2967086 are ROHS3 compliant, REACH affected, and classified under ECCN EAR99 with HTSUS code 8536.49.0050. Regulatory status is identical.

Q: What is the functional difference between these relays?

A: There is no functional difference. Both are general purpose, non-latching DPDT relays with lighted indicators and socket inclusion. Operating times (7 ms operate, 10 ms release) and contact material (Silver Nickel) are identical.
