TE Connectivity 2-87456-6 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 2-87456-6 is a 30-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications requiring crimp-type female socket contacts. This component is part of the AMPMODU Mod IV series and is currently discontinued at DiGi Electronics, necessitating identification of functionally equivalent alternatives from active product lines.

The housing accommodates 30 contacts arranged in 2 rows with 0.100" row spacing and is manufactured in black thermoplastic material. As a receptacle housing, this part requires separate contact procurement and assembly. The part is RoHS Compliant with MSL 1 (Unlimited) moisture sensitivity rating.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	30
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 2-87456-6 is determined by strict equivalence across the following critical parameters:

Primary Substitution Criteria:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 30
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

All substitute parts listed meet these core electrical and mechanical parameters. Variations in manufacturer, series designation, insulation material, operating temperature range, and compliance certifications do not affect functional interchangeability for the specified application.

Color Consideration: The primary part is black. One substitute (65239-015LF) is available in blue, which represents a cosmetic variation only and does not affect electrical or mechanical compatibility.

Parameter Comparison

Part Number	Manufacturer	Series	Positions	Pitch	Rows	Row Spacing	Color	Mounting	Termination	Product Status	RoHS Status	Inventory (Pcs)
2-87456-6	TE Connectivity AMP	AMPMODU Mod IV	30	0.100"	2	0.100"	Black	Free Hanging	Crimp	Discontinued	RoHS Compliant	844
1-104482-3	TE Connectivity AMP	AMPMODU	30	0.100"	2	0.100"	Black	Free Hanging	Crimp	Active	RoHS Compliant	2367

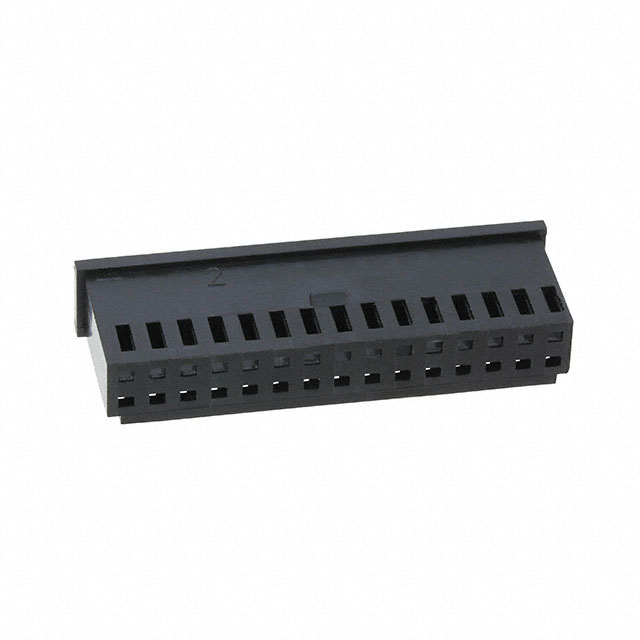

280368	TE Connectivity AMP	AMPMODU Mod II	30	0.100"	2	0.100"	Black	Free Hanging	Crimp	Active	ROHS3 Compliant	1301
0022552303	Molex	SL 70450	30	0.100"	2	0.100"	Black	Free Hanging	Crimp	Active	ROHS3 Compliant	2306
2-87456-5	TE Connectivity AMP	AMPMODU Mod IV	30	0.100"	2	0.100"	Black	Free Hanging	Crimp	Active	ROHS3 Compliant	1153
65043-022LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	30	0.100"	2	0.100"	Black	Free Hanging	Crimp	Active	RoHS Compliant	1050
65239-015LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	30	0.100"	2	0.100"	Blue	Free Hanging	Crimp	Active	RoHS Compliant	2742

Engineering Selection Recommendations

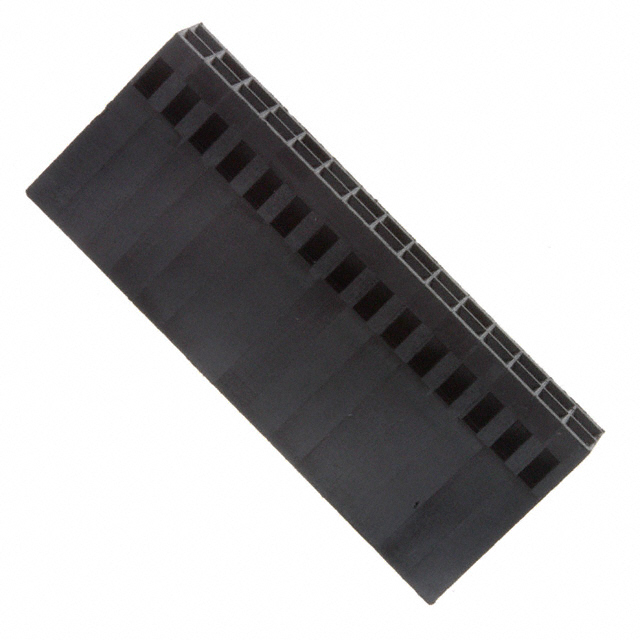

Primary Recommendation: 2-87456-5

The 2-87456-5 is the direct successor to the discontinued 2-87456-6 within the same AMPMODU Mod IV series from TE Connectivity. Both parts share identical electrical and mechanical specifications. The 2-87456-5 is currently active with 1153 units in stock and carries ROHS3 Compliant certification with REACH Unaffected status, providing enhanced regulatory compliance documentation compared to the original part.

Secondary Recommendations (TE Connectivity Family):

The 1-104482-3 (AMPMODU series) and 280368 (AMPMODU Mod II series) are active TE Connectivity alternatives with full parameter equivalence. The 1-104482-3 offers the highest inventory availability at 2367 units. Both parts maintain RoHS compliance and MSL 1 rating.

Cross-Manufacturer Alternative: 0022552303 (Molex)

The Molex 0022552303 from the SL 70450 series provides functional equivalence with 2306 units available. This part carries ROHS3 Compliant and REACH Unaffected certifications. Selection of this part requires confirmation of mechanical compatibility with existing mating connectors and PCB layouts, as cross-manufacturer housing designs may present dimensional variations outside the specified parameters.

Alternative with Color Variation: 65239-015LF (Amphenol ICC)

The 65239-015LF is available in blue housing rather than black. This part is functionally equivalent across all electrical and mechanical parameters and offers the highest inventory level at 2742 units. Selection is appropriate only when color specification permits deviation from the original black housing.

Inventory Availability Consideration:

For applications requiring immediate procurement, the 65239-015LF (2742 units) and 1-104482-3 (2367 units) offer the highest stock levels. The 0022552303 (2306 units) provides comparable availability with cross-manufacturer sourcing.

Frequently Asked Questions (FAQ)

Q: Can the 2-87456-5 directly replace the discontinued 2-87456-6?

A: Yes. The 2-87456-5 is functionally equivalent across all specified electrical and mechanical parameters: 30 positions, 0.100" pitch, 2-row configuration, 0.100" row spacing, free-hanging mounting, and crimp termination. Both are black receptacle housings with MSL 1 rating. The 2-87456-5 is the active product within the same AMPMODU Mod IV series.

Q: What is the difference between the TE Connectivity AMPMODU series variants (Mod II, Mod IV)?

A: Series designations (Mod II, Mod IV) indicate design generations within the AMPMODU family. All listed variants meet the core parameter requirements for substitution. Selection among TE Connectivity options should prioritize the 2-87456-5 as the direct successor, followed by other AMPMODU variants based on availability and compliance requirements.

Q: Can I use the blue 65239-015LF in place of the black 2-87456-6?

A: The 65239-015LF is electrically and mechanically equivalent. Color difference is cosmetic only and does not affect functionality. Selection of this part is appropriate only when application specifications permit blue housing or when color is not a constraint.

Q: Are there operating temperature differences between substitute options?

A: Operating temperature ranges vary among substitutes but do not affect substitution eligibility. The original 2-87456-6 specifies no operating temperature range. Substitute parts specify ranges from -40°C to 125°C depending on manufacturer and series. Selection should confirm that the substitute's operating temperature range meets application requirements.

Q: What is the significance of RoHS versus ROHS3 compliance?

A: Both RoHS and ROHS3 certifications indicate compliance with hazardous substance restrictions. ROHS3 represents an updated certification standard. Both are acceptable for substitution purposes. The 2-87456-5 carries ROHS3 Compliant status, providing documentation of compliance with current regulatory standards.

Q: Do I need to change my mating connector when switching to a cross-manufacturer substitute?

A: The substitute parts listed are functionally equivalent in electrical and mechanical specifications. However, cross-manufacturer housing designs (such as Molex 0022552303 or Amphenol ICC parts) may present dimensional variations in housing geometry, keying features, or contact alignment. Confirmation of mechanical compatibility with existing mating connectors is required before implementation.

Q: Are contacts included with these connector housings?

A: No. All listed parts are housings only. Contacts must be procured separately and assembled into the housing using the specified crimp termination method. Ensure that selected contacts are compatible with the 0.100" (2.54mm) pitch specification.

Q: What does MSL 1 (Unlimited) mean for moisture sensitivity?

A: MSL 1 indicates the lowest moisture sensitivity level, meaning the component can be stored indefinitely without special moisture control measures. All listed substitutes carry MSL 1 rating, ensuring equivalent handling and storage requirements.
