TE Connectivity Erni 284650 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Erni 284650 is a 64-position DIN receptacle connector with gold-plated contacts designed for PCB mounting in backplane applications. This connector features through-hole solder termination and is classified as a Position Din Connector. The part is currently listed as obsolete, necessitating identification of functionally equivalent active alternatives to maintain design continuity and ensure ongoing component availability for new production and field service applications.

Substiute Parts

284650

TE Connectivity ErniIn Stock: 760284650 Datasheet

Current PartRFQ

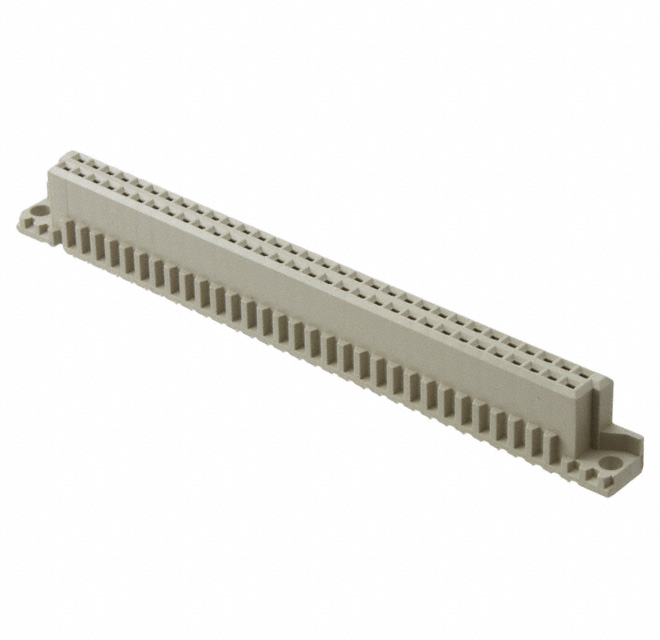

5650859-5

TE Connectivity AMP ConnectorsIn Stock: 13365650859-5 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity Erni 284650 is based on strict equivalence of the following critical parameters:

Functional Equivalence Criteria:

• Connector category: Backplane Connectors
• Connector type: Receptacle with female sockets
• Number of positions: 64
• Contact finish: Gold plating
• Mounting technology: Through-hole PCB mounting
• Termination method: Solder

The identified substitute part TE Connectivity AMP Connectors 5650859-5 satisfies all functional equivalence requirements. This part is manufactured by TE Connectivity, a parent organization of the original manufacturer, and maintains identical electrical and mechanical specifications. The substitute is classified as active product status, ensuring continued availability and manufacturing support.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 5650859-5 is the direct functional equivalent for the obsolete TE Connectivity Erni 284650. Selection of this substitute part is based on the following engineering factors:

Product Status: The substitute part maintains active product status with TE Connectivity, ensuring manufacturing continuity, technical support, and long-term component availability. The original part is classified as obsolete and no longer supported by the manufacturer.

Compliance and Certifications: The substitute part carries RoHS compliance certification and UL94 V-0 material flammability rating, meeting current regulatory requirements for electronic component manufacturing and deployment in industrial backplane applications.

Electrical and Mechanical Compatibility: Both connectors share identical specifications for position count (64), connector type (receptacle female sockets), contact finish (gold), mounting method (through-hole), and termination technology (solder). The substitute part is rated for -55°C to 125°C operating temperature, providing thermal performance suitable for standard industrial and commercial applications.

Manufacturer Continuity: Both parts are manufactured by TE Connectivity or its subsidiary divisions, ensuring design consistency and manufacturing quality standards.

Frequently Asked Questions (FAQ)

Q: Can the 5650859-5 be used as a direct replacement for the 284650 in existing designs?

A: Yes. The 5650859-5 is functionally equivalent to the 284650 across all critical parameters: 64-position count, receptacle female socket configuration, gold contact finish, through-hole mounting, and solder termination. Both connectors are designed for backplane applications and share identical mechanical and electrical interfaces.

Q: What is the primary reason for substitution?

A: The TE Connectivity Erni 284650 is classified as obsolete and no longer manufactured. The 5650859-5 is an active product from TE Connectivity AMP Connectors that provides equivalent functionality with ongoing manufacturing support and availability.

Q: Are there packaging differences between the original and substitute parts?

A: The original part packaging information is not specified in the technical documentation. The substitute part 5650859-5 is supplied in bulk packaging. Consult with the component supplier regarding specific packaging requirements for your application.

Q: Does the substitute part meet current regulatory standards?

A: Yes. The 5650859-5 is RoHS compliant and carries a UL94 V-0 material flammability rating, meeting current regulatory requirements for electronic components in industrial applications.

Q: What is the pitch specification for the 5650859-5?

A: The 5650859-5 features a 0.100" (2.54mm) pitch with a 2-row configuration, accommodating 64 total positions. This pitch specification is standard for DIN-style backplane connectors.

Q: Is the operating temperature range of the substitute part suitable for my application?

A: The 5650859-5 is rated for -55°C to 125°C operating temperature. Verify this range meets your specific application requirements. If your application requires operation outside this range, consult with TE Connectivity for alternative solutions.

Q: What is the series designation for the substitute part?

A: The 5650859-5 belongs to the Eurocard series, which is a standard form factor for DIN-style backplane connectors used in industrial computing and telecommunications equipment.
