Phoenix Contact 2834290 General Purpose Relay 3PDT 10A 120V - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2834290 is a general purpose relay with 3PDT (3 Form C) contact configuration rated for 10A at 120VAC coil voltage. This socketable relay features an 11-pin octal base termination and is designed for standard switching applications requiring multiple independent circuits.

The 2834290 is classified as obsolete. Identifying equivalent substitute parts is essential for maintaining system functionality, ensuring continued availability for repairs, and supporting legacy equipment that may require component replacement.

Substiute Parts

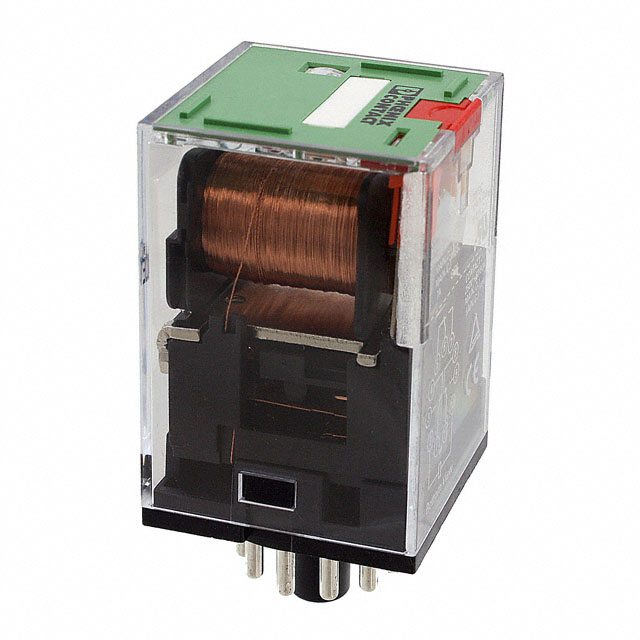

2834290

Phoenix ContactIn Stock: 8172834290 Datasheet

Current PartRFQ

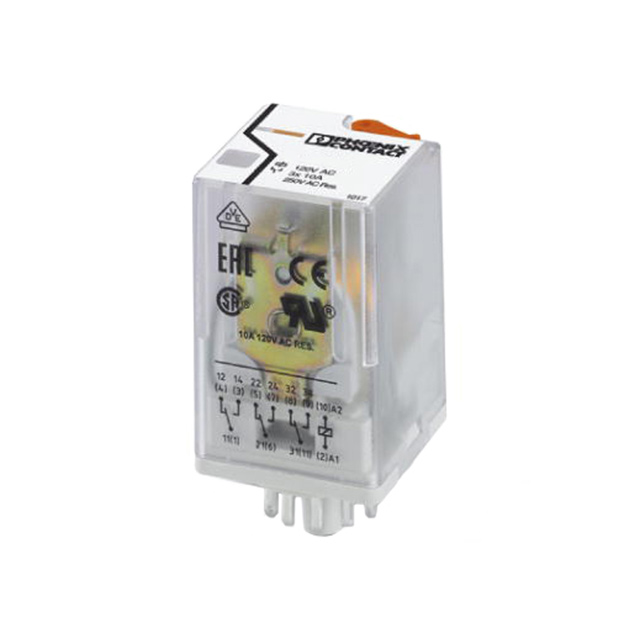

2903695

Phoenix ContactIn Stock: 7392903695 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 2834290 are identified based on strict equivalence of the following critical parameters:

• Contact Form: 3PDT (3 Form C)
• Contact Rating: 10 A
• Coil Voltage: 120VAC
• Switching Voltage: 250VAC, 250VDC - Max
• Termination Style: Plug In, 11 Pin (Octal)
• Mounting Type: Socketable
• Coil Current: 20 mA
• Operating Temperature Range: -40°C ~ 60°C
• Contact Material: Silver Tin Indium (AgSnIn)

The Phoenix Contact 2903695 meets all these criteria and is classified as a direct substitute for the 2834290.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2903695 is a direct functional equivalent to the obsolete 2834290. Both parts maintain identical electrical and mechanical specifications across all critical parameters, including contact configuration, current rating, coil voltage, and termination style.

The 2903695 is classified within the REL-OR series and maintains full compliance with RoHS3 and REACH requirements. Current inventory availability of the 2903695 (671 pcs) supports component procurement for replacement applications.

For applications requiring the 2834290, the 2903695 provides a seamless substitution without circuit redesign or socket modification.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2903695 directly replace the 2834290 in existing applications?

A: Yes. The 2903695 is electrically and mechanically equivalent to the 2834290. Both parts feature identical 3PDT contact configuration, 10A current rating, 120VAC coil voltage, and 11-pin octal socketable termination. Direct substitution is supported without circuit modification.

Q: Are there any differences in contact material between these parts?

A: No. Both the 2834290 and 2903695 use Silver Tin Indium (AgSnIn) contact material, ensuring consistent switching performance and reliability.

Q: What is the significance of the REL-OR series designation for the 2903695?

A: The REL-OR series classification indicates the product line within Phoenix Contact's relay portfolio. This designation does not affect functional equivalence or substitution compatibility.

Q: Are both parts RoHS3 compliant?

A: Yes. The 2834290 is RoHS3 compliant. The 2903695 maintains equivalent compliance status, supporting use in applications with RoHS3 requirements.

Q: What is the operating temperature range for these relays?

A: Both the 2834290 and 2903695 operate across the temperature range of -40°C to 60°C, supporting use in standard industrial and commercial environments.

Q: Can these relays be used in 250VDC switching applications?

A: Yes. Both parts are rated for switching voltages up to 250VAC and 250VDC maximum, supporting DC switching applications within this voltage specification.
