Phoenix Contact 2834135 General Purpose Relay 4PDT 120VAC - Equivalent & Substitute Parts

Part Overview

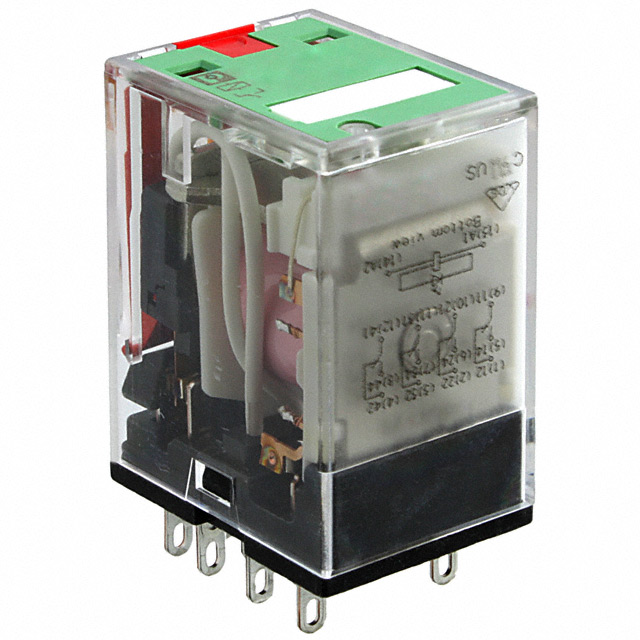

The Phoenix Contact 2834135 is a general purpose relay with 4PDT (4 Form C) contact configuration, rated for 120VAC coil voltage and 5A contact current. This socketable relay is designed for standard industrial switching applications requiring multiple independent circuits.

The 2834135 has reached obsolete product status. Identifying equivalent and substitute parts ensures continuity of supply for maintenance, repair, and new design implementations where this relay specification remains applicable.

Substiute Parts

2834135

Phoenix ContactIn Stock: 9552834135 Datasheet

Current PartRFQ

2903687

Phoenix ContactIn Stock: 7382903687 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 2834135 are identified based on the following critical parameters that determine functional equivalence:

• Contact Configuration: 4PDT (4 Form C) - maintains identical switching capability
• Coil Voltage: 120VAC - ensures direct replacement in existing circuits
• Contact Current Rating: Equal to or greater than 5A - preserves load-switching capacity
• Mounting Type: Socketable - maintains mechanical compatibility with existing sockets
• Termination Style: Plug In - ensures connection compatibility
• Coil Type: Non Latching - maintains operational behavior
• Switching Voltage: 250VAC, 250VDC maximum or higher - ensures voltage compatibility

Substitute parts must meet or exceed these parameters without reducing any electrical or mechanical specification.

Parameter Comparison

Engineering Selection Recommendations

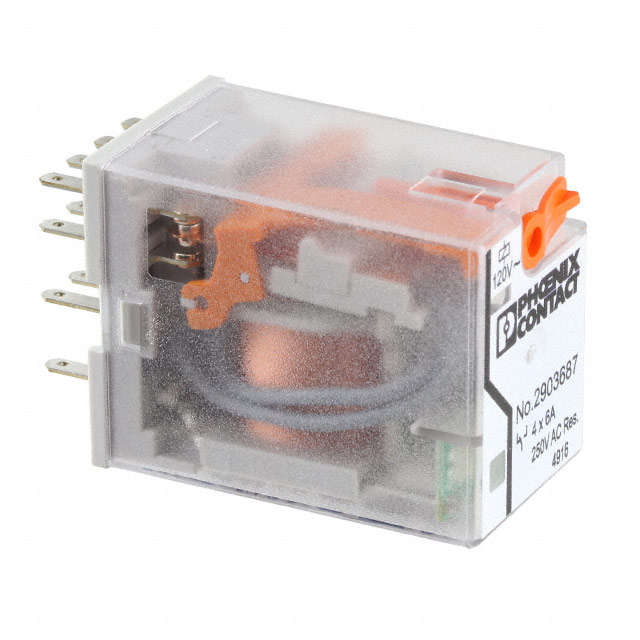

The Phoenix Contact 2903687 is a direct substitute for the 2834135 based on matching contact configuration (4PDT), coil voltage (120VAC), socketable mounting, and plug-in termination. The 2903687 provides a higher contact current rating of 6A compared to the 5A rating of the 2834135, which represents an upgrade in load-switching capacity while maintaining all other critical specifications.

Both parts are Phoenix Contact products with RoHS compliance. The 2903687 is available in current inventory (667 Pcs), whereas the 2834135 is obsolete. For new designs and replacement applications, the 2903687 is the appropriate selection.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2903687 directly replace the 2834135 in existing applications?

A: Yes. Both relays share identical contact configuration (4PDT), coil voltage (120VAC), socketable mounting, and plug-in termination. The 2903687 has a higher current rating (6A vs 5A), which is compatible with applications designed for the 5A specification.

Q: What is the significance of the higher 6A current rating on the 2903687?

A: The 6A rating on the 2903687 indicates a higher maximum continuous current capacity per contact. This does not affect compatibility with circuits designed for 5A operation; it simply provides additional margin for load switching.

Q: Are both relays socketable?

A: Yes. Both the 2834135 and 2903687 are socketable relays with plug-in termination, ensuring mechanical and electrical compatibility with standard relay sockets.

Q: What is the operational difference between these relays?

A: Based on provided specifications, both are non-latching general purpose relays with 4PDT contact configuration and 120VAC coil voltage. The primary difference is the contact current rating and product availability status.

Q: Why is the 2834135 listed as obsolete?

A: Product obsolescence indicates that the 2834135 is no longer in active production. The 2903687 serves as the current production equivalent for this relay specification.
