Phoenix Contact 2834096 General Purpose Relay 4PDT 24VDC - Equivalent & Substitute Parts

Part Overview

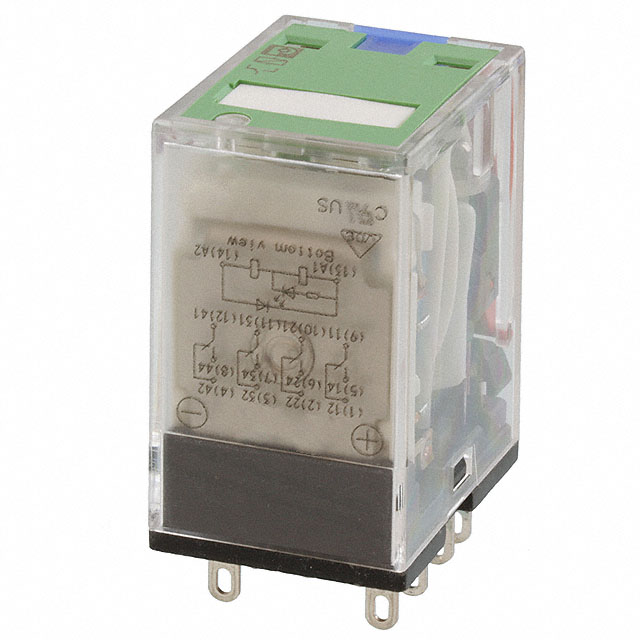

The Phoenix Contact 2834096 is a general purpose relay with 4PDT (4 Form C) contact configuration, designed for 24VDC coil operation with 5A contact rating. This socketable relay is suitable for industrial control applications requiring multiple independent switching circuits. The product is currently obsolete, making identification of compatible substitute parts essential for system maintenance and component replacement in existing installations.

Substiute Parts

2834096

Phoenix ContactIn Stock: 9022834096 Datasheet

Current PartRFQ

2903677

Phoenix ContactIn Stock: 17182903677 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2834096 is determined by the following critical parameters:

• Contact Configuration: 4PDT (4 Form C) - maintains four independent switching circuits
• Coil Voltage: 24VDC - ensures compatibility with existing control circuits
• Contact Rating: Minimum 5A at rated switching voltage
• Mounting Type: Socketable - preserves mechanical compatibility with existing relay bases
• Termination Style: Plug In - maintains electrical connection consistency
• Operating Temperature Range: Must encompass or match the specified range
• Contact Material: Silver Nickel (AgNi) - ensures consistent switching performance

The Phoenix Contact 2903677 qualifies as a direct substitute based on matching all critical parameters while providing enhanced contact rating capability.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2903677 is the designated substitute for the obsolete 2834096. Selection is based on:

• Functional Equivalence: Both relays maintain identical 4PDT contact configuration and 24VDC coil operation, ensuring direct replacement in existing control circuits
• Enhanced Capability: The 2903677 provides 6A contact rating compared to the 5A rating of the original part, offering improved margin for current-carrying applications
• Product Availability: The 2903677 is currently in active production with 1643 units in stock, whereas the 2834096 is obsolete with limited remaining inventory
• Compliance Continuity: Both parts maintain RoHS compliance status, supporting regulatory requirements in industrial applications
• Mechanical Compatibility: Socketable mounting and plug-in termination ensure seamless integration into existing relay bases and control panels

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2903677 directly replace the 2834096 in existing installations?

A: Yes. Both relays share identical contact configuration (4PDT), coil voltage (24VDC), mounting type (socketable), and termination style (plug-in). The 2903677 is a direct mechanical and electrical substitute.

Q: What is the primary difference between these two relays?

A: The 2903677 provides a 6A contact rating compared to the 5A rating of the 2834096. This represents an enhancement in current-carrying capacity while maintaining all other functional parameters.

Q: Why is the 2834096 listed as obsolete?

A: The 2834096 has been discontinued by Phoenix Contact. The 2903677 represents the current production equivalent within the Phoenix Contact relay portfolio.

Q: Are there any compatibility concerns when substituting the 2903677 for the 2834096?

A: No compatibility concerns exist. The higher contact rating of the 2903677 (6A vs. 5A) is a non-breaking change that maintains backward compatibility with all applications designed for the original 5A specification.

Q: What is the significance of the socketable mounting type?

A: Socketable mounting allows the relay to be inserted into a standardized relay base or socket, enabling tool-free installation and removal. Both the 2834096 and 2903677 support this mounting method, ensuring consistent handling procedures.

Q: Does the substitute part maintain the same operating temperature range?

A: The operating temperature range for the 2903677 is not specified in the provided technical data. Verification of temperature specifications should be conducted through the manufacturer's current technical documentation if operation at temperature extremes (-55°C or 70°C) is required.
