Phoenix Contact 2834067 General Purpose Relay DPDT 120VAC - Equivalent & Substitute Parts

Part Overview

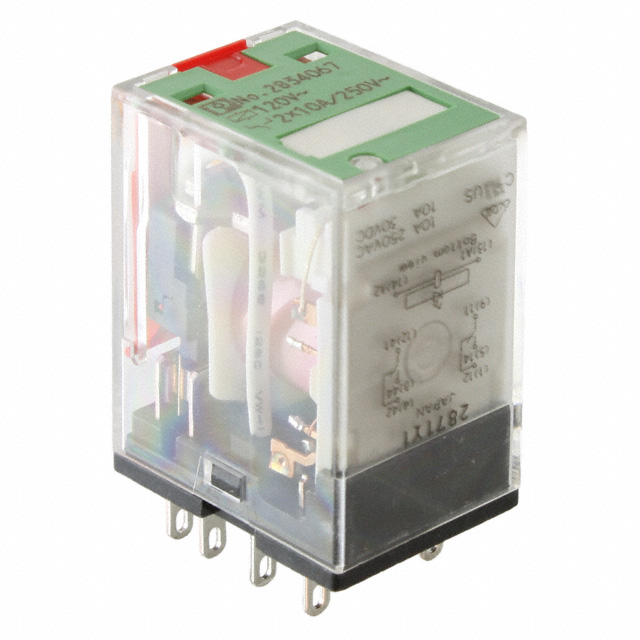

The Phoenix Contact 2834067 is a general purpose relay with DPDT (2 Form C) contact configuration, rated for 10A at 120VAC coil voltage. This socketable relay features a lighted indicator and test button, designed for plug-in termination applications. The part is currently obsolete, making identification of suitable substitute components essential for system maintenance and component replacement in existing installations.

Substiute Parts

2834067

Phoenix ContactIn Stock: 8972834067 Datasheet

Current PartRFQ

2903667

Phoenix ContactIn Stock: 12042903667 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2834067 is determined by the following critical parameters:

• Contact Configuration: DPDT (2 Form C) contact form is mandatory for functional equivalence
• Coil Voltage: 120VAC coil voltage must be maintained for direct circuit compatibility
• Current Rating: Minimum 10A contact rating required; higher ratings are acceptable
• Mounting Type: Socketable mounting with plug-in termination style ensures mechanical and electrical compatibility
• Contact Material: Silver (Ag) contact material provides equivalent switching performance
• Switching Voltage: Maximum 250VAC/250VDC switching capability must be maintained or exceeded
• Operating Temperature Range: Must accommodate -55°C ~ 70°C operational envelope

The Phoenix Contact 2903667 qualifies as a direct substitute based on these parameters. It maintains identical coil voltage (120VAC), contact configuration (DPDT), mounting type (socketable), and termination style (plug-in), while providing an increased current rating of 12A, which exceeds the original 10A specification.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2903667 is suitable as a substitute for the obsolete 2834067 based on the following criteria:

• Both components are manufactured by Phoenix Contact, ensuring design consistency and quality standards
• Identical coil voltage (120VAC) and contact configuration (DPDT) provide direct functional replacement
• Identical socketable mounting type and plug-in termination style ensure mechanical compatibility with existing installations
• The increased current rating (12A vs. 10A) provides enhanced capacity without reducing compatibility
• Both components comply with ROHS3 standards, supporting environmental and regulatory requirements

The 2903667 is available in current inventory (1157 Pcs), providing immediate availability for replacement applications.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2903667 directly replace the 2834067 in existing circuits?

A: Yes. Both relays share identical coil voltage (120VAC), contact configuration (DPDT), mounting type (socketable), and termination style (plug-in). The 2903667 provides a 12A current rating compared to the original 10A, which is compatible with applications designed for the 2834067.

Q: What is the significance of the increased current rating in the 2903667?

A: The 12A rating in the 2903667 exceeds the original 10A specification. This provides additional capacity margin and does not compromise compatibility with circuits designed for the lower rating.

Q: Are there any mechanical compatibility concerns when substituting the 2903667 for the 2834067?

A: No. Both relays feature socketable mounting with plug-in termination, ensuring identical mechanical interface and installation compatibility.

Q: What is the product status of the 2903667?

A: Product status information for the 2903667 was not provided in the available data. Consult Phoenix Contact directly for current availability and lifecycle information.

Q: Do both relays meet the same environmental and regulatory standards?

A: The 2834067 is ROHS3 compliant with MSL 1 (Unlimited). Compliance information for the 2903667 was not provided in the available data. Verify compliance requirements with Phoenix Contact technical documentation.
