Part Overview

The TE Connectivity AMP Connectors 282822-5 is a 5-position terminal block header with male pins, shrouded on two sides, featuring a 0.197" (5.00mm) pitch and vertical through-hole mounting. This component is part of the Buchanan series and is classified as Active product status. Terminal block headers serve as connection points for wire-to-board applications in industrial control, power distribution, and signal routing circuits. Substitute parts are identified when equivalent electrical ratings, mechanical dimensions, and mounting configurations are required for design flexibility, supply chain alternatives, or component availability.

Substiute Parts

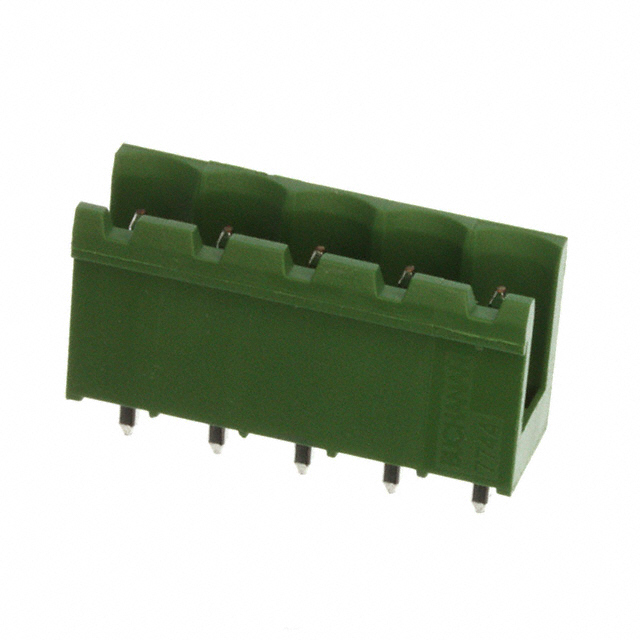

282822-5

TE Connectivity AMP ConnectorsIn Stock: 841282822-5 Datasheet

Current PartRFQ

1753495

Phoenix ContactIn Stock: 11881753495 Datasheet

SimilarRFQ

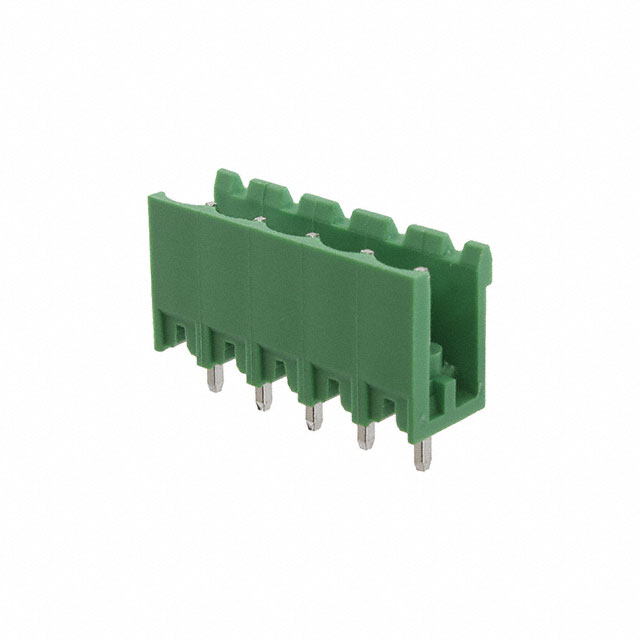

EBPA-05-C

Adam TechIn Stock: 1848EBPA-05-C Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 282822-5 are identified based on strict equivalence across the following critical parameters:

Electrical Compatibility:

• Number of positions: 5
• Pitch: 0.197" (5.00mm)
• Voltage rating: 300 V (UL)
• Current rating: 12 A minimum (UL)

Mechanical Compatibility:

• Header orientation: Vertical
• Mounting type: Through hole
• Termination style: Solder
• Type: Header with male pins, shrouded (2 side)
• Insulation height: 0.472" (12.00mm)

Compliance & Environmental:

• Material flammability rating: UL94 V-0
• Moisture sensitivity level: 1 (Unlimited)
• Product status: Active
• RoHS compliance required

All identified substitute parts meet or exceed these parameters and are suitable for direct replacement in applications requiring 5-position, 5mm-pitch terminal block headers with vertical through-hole mounting.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: TE Connectivity 282822-5

The TE Connectivity AMP Connectors 282822-5 is the primary component specification. It maintains Active product status with full RoHS compliance and operates across the temperature range of -40°C to 110°C. This part is suitable for applications requiring maximum current capacity at 15 A with 300 V UL voltage rating.

Substitute Option 1: Phoenix Contact 1753495

The Phoenix Contact 1753495 (COMBICON MSTBV series) is a direct mechanical and electrical substitute. It maintains identical pitch, position count, orientation, and mounting configuration. The part carries ROHS3 compliance and Active product status. The UL current rating is 12 A, which is lower than the primary part but remains suitable for applications not requiring the full 15 A capacity. The contact tail length differs slightly (0.154" versus 0.138"), which may affect PCB layout considerations. This part is available in higher inventory (1161 pcs).

Substitute Option 2: Adam Tech EBPA-05-C

The Adam Tech EBPA-05-C (EB series) is functionally equivalent with identical pitch, position count, and mounting type. It matches the 15 A UL current rating and 300 V voltage specification of the primary part. The operating temperature range is -40°C to 105°C, which is slightly narrower than the primary part. The contact tail length is 0.157" (4.00mm), differing from both the primary and first substitute. ROHS3 compliance and Active product status are confirmed. This part has the highest inventory availability (1742 pcs).

All three parts are suitable for direct substitution in 5-position, 5mm-pitch terminal block header applications with vertical through-hole mounting and solder termination. Selection should be based on specific application current requirements, PCB layout constraints related to contact tail length, and supply chain availability.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1753495 be used as a direct replacement for the TE Connectivity 282822-5?

A: The Phoenix Contact 1753495 is mechanically and electrically compatible for most applications. Both parts share identical pitch (5.00mm), position count (5), orientation (vertical), and mounting type (through hole). The primary difference is the UL current rating: Phoenix Contact is rated at 12 A versus 15 A for the TE Connectivity part. If your application requires the full 15 A capacity, the TE Connectivity or Adam Tech parts are required. For applications operating at 12 A or below, the Phoenix Contact part is suitable.

Q: What is the significance of the contact tail length differences between these parts?

A: Contact tail length affects the depth of solder penetration on the PCB and the mechanical engagement with the board. The TE Connectivity 282822-5 has a contact tail length of 0.138" (3.50mm), the Phoenix Contact 1753495 has 0.154" (3.90mm), and the Adam Tech EBPA-05-C has 0.157" (4.00mm). These variations may require PCB layout adjustments, particularly for through-hole depth and solder pad sizing. Verify PCB design specifications before substitution.

Q: Are all three parts RoHS compliant?

A: Yes. The TE Connectivity 282822-5 is RoHS Compliant. Both the Phoenix Contact 1753495 and Adam Tech EBPA-05-C are ROHS3 Compliant, which represents a more recent iteration of RoHS standards. All three parts meet RoHS requirements for hazardous substance restrictions.

Q: What is the operating temperature range for each part?

A: The TE Connectivity 282822-5 operates from -40°C to 110°C. The Adam Tech EBPA-05-C operates from -40°C to 105°C. The Phoenix Contact 1753495 does not specify an operating temperature range in the provided data. For applications requiring operation above 105°C, the TE Connectivity part is the only option among the three.

Q: Can these parts be used interchangeably on the same PCB design?

A: Mechanical interchangeability depends on PCB layout design. All three parts have identical pitch (5.00mm), insulation height (0.472" / 12.00mm), and mounting type (through hole). However, the contact tail length variations (0.138" to 0.157") may require PCB design adjustments. Verify that your PCB accommodates the specific contact tail length of the substitute part before implementation.

Q: What is the Moisture Sensitivity Level (MSL) for these parts?

A: All three parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. These components do not require special moisture control during storage, handling, or assembly.

Q: Are there any voltage or current limitations when substituting these parts?

A: All three parts are rated at 300 V (UL). Current ratings differ: TE Connectivity and Adam Tech are rated at 15 A (UL), while Phoenix Contact is rated at 12 A (UL). Select the part that meets or exceeds your application's current requirements. Do not use a part with a lower current rating than required by your circuit.
