TE Connectivity AMP Connectors 282815-6 Equivalent & Substitute Parts

Part Overview

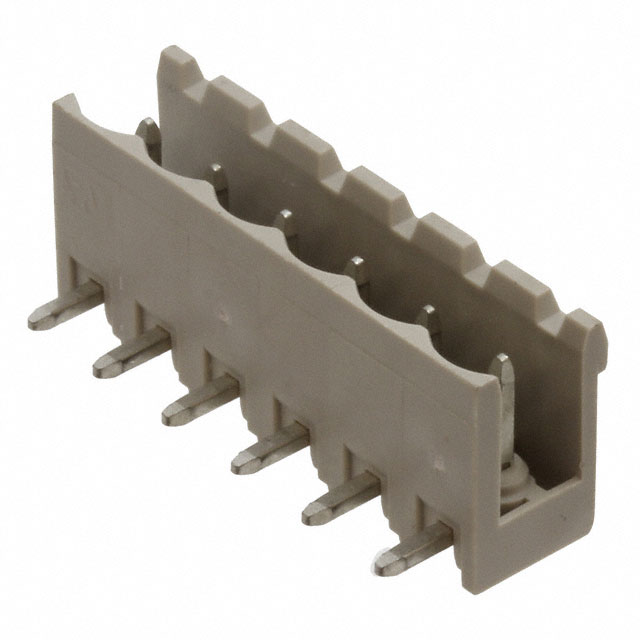

The TE Connectivity AMP Connectors 282815-6 is a 6 Position Terminal Block Header with male pins, shrouded on 2 sides, featuring 0.200" (5.08mm) pitch and 90° right angle orientation for through-hole mounting. This component is part of the Buchanan series and is currently in active product status with 846 pieces in stock. Terminal block headers are essential interconnection components used in industrial control systems, power distribution modules, and signal routing applications where reliable solder-terminated connections are required. Equivalent and substitute parts are identified for applications requiring alternative sourcing, inventory management, or design flexibility while maintaining electrical and mechanical compatibility.

Substiute Parts

282815-6

TE Connectivity AMP ConnectorsIn Stock: 937282815-6 Datasheet

Current PartRFQ

0395220006

MolexIn Stock: 37910395220006 Datasheet

SimilarRFQ

0395226006

MolexIn Stock: 50680395226006 Datasheet

SimilarRFQ

0395325006

MolexIn Stock: 17550395325006 Datasheet

SimilarRFQ

ELFH06210

Amphenol PCDIn Stock: 1193ELFH06210 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 282815-6 are identified based on strict electrical and mechanical compatibility criteria. The primary substitution parameters are:

Critical Matching Parameters:

• Number of Positions: 6
• Header Orientation: 90°, Right Angle
• Termination Style: Solder
• Mounting Type: Through Hole
• Current Rating - UL: 15 A
• Voltage Rating - UL: 300 V
• Material Flammability Rating: UL94 V-0
• RoHS3 Compliance

Secondary Compatibility Parameters:

• Pitch: 0.200" (5.08mm) or 0.197" (5.00mm) with mechanical tolerance consideration
• Shrouding Configuration: 2-side or 4-side shrouded variants
• Contact Material: Copper Alloy or Brass
• Housing Material: Polyamide (PA66), Nylon 6/6 or Polybutylene Terephthalate (PBT)
• Operating Temperature Range: -40°C minimum with upper range of 105°C or higher

Substitute parts are grouped into two categories: direct pitch equivalents (5.08mm) and near-pitch alternatives (5.00mm). All identified substitutes maintain the same electrical performance specifications and safety certifications required for terminal block header applications.

Parameter Comparison

Engineering Selection Recommendations

Direct Pitch Equivalent (5.08mm):

The Molex 0395325006 provides the closest electrical and mechanical equivalence to the 282815-6. Both components share identical 0.200" (5.08mm) pitch, 6-position configuration, 90° right angle orientation, and 2-side shrouding. The 0395325006 maintains all critical electrical specifications (15 A UL current, 300 V UL voltage) and safety certifications (UL94 V-0, ROHS3 Compliant). The primary difference is the reduced upper operating temperature limit of 105°C compared to the 282815-6's 110°C specification. This component is suitable for applications where the maximum ambient temperature does not exceed 105°C.

The Amphenol PCD ELFH06210 also matches the 5.08mm pitch and electrical ratings but features 4-side shrouding instead of 2-side shrouding. This variant provides enhanced mechanical protection and is suitable for applications requiring increased EMI shielding or physical robustness. The ELFH06210 uses Polybutylene Terephthalate (PBT) housing material instead of Polyamide (PA66), offering improved chemical resistance in certain industrial environments.

Near-Pitch Alternatives (5.00mm):

The Molex 0395220006 and 0395226006 operate at 0.197" (5.00mm) pitch, representing a 0.08mm (0.003") deviation from the primary specification. These components maintain identical electrical performance and safety certifications. The 0395220006 features 2-side shrouding (matching the 282815-6 configuration), while the 0395226006 provides 4-side shrouding. Near-pitch substitution is applicable only when the receiving connector or mating interface accommodates the 5.00mm pitch specification. PCB layout and connector compatibility must be verified before implementation.

Compliance and Certification Status:

All identified substitutes maintain ROHS3 compliance and EAR99 export classification. The 282815-6, 0395325006, 0395220006, and ELFH06210 are confirmed active products with current manufacturing status. Moisture Sensitivity Level 1 (Unlimited) designation on the primary part and most substitutes indicates no special moisture handling requirements during storage or assembly.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0395325006 be used as a direct replacement for the TE Connectivity 282815-6?

A: The Molex 0395325006 is electrically and mechanically compatible with the 282815-6 for applications operating within the 105°C maximum temperature limit. Both components share identical 6-position, 5.08mm pitch, 90° right angle configuration, 15 A current rating, and 300 V voltage rating. The primary consideration is the 5°C reduction in maximum operating temperature (105°C versus 110°C). If your application operates below 105°C, this substitute is suitable. Verify PCB footprint compatibility before implementation.

Q: What is the difference between 2-side and 4-side shrouding in terminal block headers?

A: Shrouding refers to the protective housing surrounding the connector pins. 2-side shrouding provides protection on two opposing sides, while 4-side shrouding surrounds all four sides of the pin array. 4-side shrouding (as found in the Molex 0395226006 and Amphenol PCD ELFH06210) offers enhanced mechanical protection, improved EMI shielding, and reduced risk of accidental contact. 2-side shrouding (282815-6 and Molex 0395220006) provides standard protection with reduced overall connector height. Selection depends on application requirements for physical robustness and electromagnetic compatibility.

Q: Are the 5.00mm pitch alternatives (Molex 0395220006 and 0395226006) compatible with 5.08mm pitch connectors?

A: The 5.00mm and 5.08mm pitch specifications are not interchangeable. The 0.08mm (0.003") pitch difference will result in misalignment when mating with a 5.08mm pitch connector. These alternatives are suitable only when the receiving connector or mating interface is specifically designed for 5.00mm pitch. Verify connector specifications before substitution. Forcing incompatible pitch connectors together will result in contact misalignment and potential electrical failure.

Q: What is the significance of the UL94 V-0 flammability rating?

A: UL94 V-0 is a fire safety classification indicating that the housing material will not propagate flame and will self-extinguish within 10 seconds after flame removal. This rating is required for terminal block headers used in industrial control systems, power distribution equipment, and safety-critical applications. All identified substitutes maintain this certification, ensuring compliance with electrical safety standards and building codes.

Q: Does the Amphenol PCD ELFH06210 require special handling due to its "Not Applicable" Moisture Sensitivity Level designation?

A: The "Not Applicable" Moisture Sensitivity Level on the ELFH06210 indicates that the component's Polybutylene Terephthalate (PBT) housing material does not absorb moisture in the manner that Polyamide (PA66) materials do. This eliminates the need for moisture-controlled storage and handling procedures. The ELFH06210 can be stored and handled under standard industrial conditions without special humidity control, providing logistical advantages in manufacturing environments.

Q: What are the key electrical parameters that determine substitution compatibility?

A: The critical electrical parameters for terminal block header substitution are: (1) Current Rating - UL: 15 A for all identified substitutes; (2) Voltage Rating - UL: 300 V for all identified substitutes; (3) Number of Positions: 6 for all identified substitutes; (4) Pitch: 5.08mm (primary) or 5.00mm (near-equivalent); (5) Operating Temperature Range: minimum -40°C with maximum of 105°C or higher. All identified substitutes meet or exceed these electrical specifications. Mechanical parameters such as shrouding configuration and housing material do not affect electrical compatibility but influence physical integration and environmental performance.

Q: Is the TE Connectivity 282815-6 still in active production?

A: Yes, the 282815-6 is confirmed as an active product with 846 pieces currently in stock. All identified substitutes are also active products with confirmed inventory availability. Active product status ensures continued availability for new designs and ongoing production requirements.
