TE Connectivity AMP Connectors 282762-1 Equivalent & Substitute Parts
Part Overview
The TE Connectivity AMP Connectors 282762-1 is a 2-position rectangular connector receptacle housing with 5.00mm pitch, designed for free-hanging in-line mounting applications. This connector belongs to the Junior Power Timer series and features splash-proof construction with crimp-type female socket contacts. The part is currently active in production with 1153 units in stock.
Equivalent and substitute parts are necessary when the primary part number becomes unavailable, when alternative color options are required for circuit identification, or when sourcing from different manufacturing batches is required to meet project timelines and inventory management objectives.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Category | Rectangular Connectors |
| Series | Junior Power Timer |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 2 |
| Pitch | 0.197" (5.00mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature Range | -30°C ~ 125°C |
| Features | Splash-Proof |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| RoHS Status | ROHS3 Compliant |
| REACH Status | REACH Unaffected |
Substitute Part Grouping Explanation
Substitution of rectangular connector housings 282762-1 is determined by strict equivalence across the following critical parameters:
Mandatory Equivalence Parameters:
- Connector Type: Receptacle
- Contact Type: Female Socket
- Number of Positions: 2
- Pitch: 0.197" (5.00mm)
- Number of Rows: 1
- Mounting Type: Free Hanging (In-Line)
- Contact Termination: Crimp
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Operating Temperature Range: -30°C ~ 125°C
- Features: Splash-Proof
Variable Parameters (Non-Critical for Substitution):
- Color: Black, Gray, Green, Yellow
- Base Product Number: Different manufacturing variants
- RoHS Status: ROHS3 Compliant or RoHS Compliant
- REACH Status: REACH Unaffected or Vendor Undefined
All substitute parts listed maintain identical electrical and mechanical specifications. Variations in color and RoHS/REACH documentation status do not affect functional interchangeability within the Junior Power Timer series.
Parameter Comparison
| Part Number | Connector Type | Contact Type | Positions | Pitch | Rows | Mounting Type | Termination | Insulation Material | Operating Temperature | Features | Color | Inventory (Pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 282762-1 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Black | 1153 |
| 281844-1 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Black | 2404 |

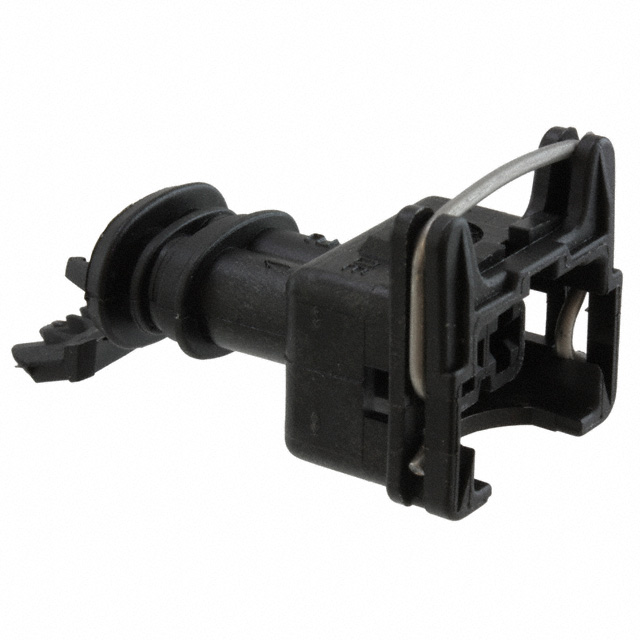

| 282189-1 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Black | 3800 |
| 282189-2 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Gray | 1900 |
| 282189-4 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Green | 1328 |

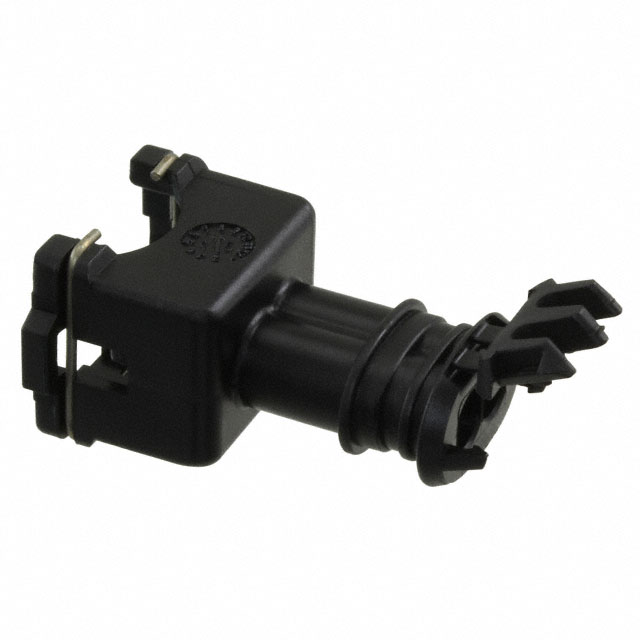

| 282190-1 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Black | 1075 |
| 282680-1 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Gray | 1996 |

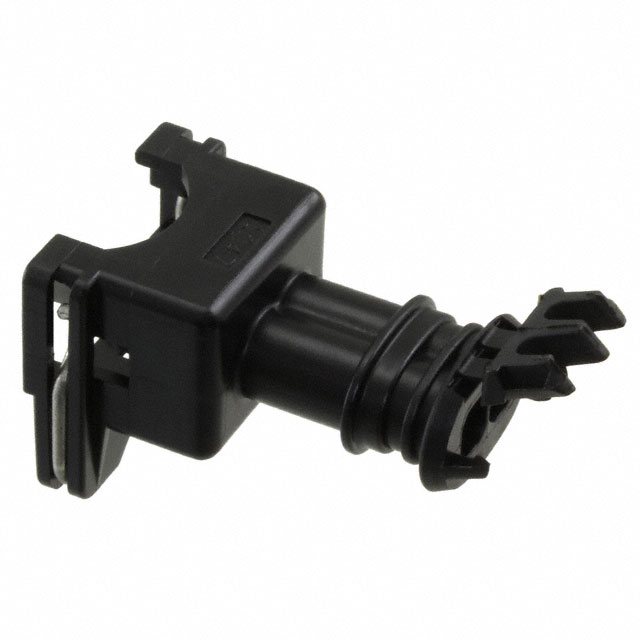

| 282956-1 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Black | 2048 |
| 282189-7 | Receptacle | Female Socket | 2 | 0.197" (5.00mm) | 1 | Free Hanging (In-Line) | Crimp | Polyamide (PA66), Nylon 6/6 | -30°C ~ 125°C | Splash-Proof | Yellow | 849 |
Engineering Selection Recommendations
Black Housing Options (Functionally Equivalent to 282762-1):
Part numbers 281844-1, 282189-1, 282190-1, and 282956-1 are direct functional equivalents to 282762-1, all featuring black housing with identical electrical and mechanical specifications. Selection among these black variants should be based on inventory availability and compliance requirements. Part 282189-1 offers the highest inventory level at 3800 units and carries RoHS Compliant certification. Part 282762-1 maintains ROHS3 Compliant status. All black variants are suitable for direct substitution.
Color-Variant Options (Functionally Equivalent with Color Differentiation):
Part numbers 282189-2 and 282680-1 provide gray housing alternatives, while 282189-4 offers green housing and 282189-7 provides yellow housing. These color variants maintain identical electrical and mechanical performance and are functionally interchangeable with the primary part. Color selection is determined by circuit identification requirements or design specifications. Part 282189-4 (green) carries REACH Unaffected status, matching the primary part's compliance profile.
Compliance Considerations:
All substitute parts maintain RoHS compliance status. Part 282762-1 and 282189-4 carry ROHS3 Compliant certification, while 281844-1, 282189-1, 282189-2, 282190-1, 282680-1, 282956-1, and 282189-7 carry RoHS Compliant certification. REACH status varies between REACH Unaffected (282762-1, 282189-4, 282956-1) and Vendor Undefined (281844-1, 282189-1, 282189-2, 282190-1, 282680-1, 282189-7). Selection should align with project compliance requirements.
Frequently Asked Questions (FAQ)
Q: Can part 282189-1 be used as a direct replacement for 282762-1?
A: Yes. Part 282189-1 is a parametric equivalent with identical connector type, contact type, position count, pitch, mounting configuration, termination method, insulation material, and operating temperature range. Both feature splash-proof construction and are rated for -30°C to 125°C operation. The parts are functionally interchangeable.
Q: What is the difference between the black housing variants (282762-1, 281844-1, 282189-1, 282190-1, 282956-1)?
A: All black housing variants maintain identical electrical and mechanical specifications. Differences exist only in base product numbers and compliance documentation status. Part 282189-1 offers the highest inventory availability at 3800 units. Selection should be based on inventory requirements and compliance certifications needed for the application.
Q: Can I use a gray housing part (282189-2 or 282680-1) instead of the black housing 282762-1?
A: Yes. Gray housing variants 282189-2 and 282680-1 are functionally equivalent to 282762-1 across all electrical and mechanical parameters. Color is the only difference. Selection of gray variants is appropriate when circuit identification or design specifications require gray housing.
Q: Are the green (282189-4) and yellow (282189-7) housing options suitable replacements?
A: Yes. Parts 282189-4 (green) and 282189-7 (yellow) maintain full functional equivalence to 282762-1. All critical parameters including connector type, contact configuration, pitch, mounting type, termination method, and operating temperature range are identical. Color variants are selected based on circuit identification requirements or design specifications.
Q: What does "Contacts Not Included" mean for these connector housings?
A: These part numbers specify connector receptacle housings only. Female socket contacts must be sourced separately and installed via crimp termination. The housing itself does not include pre-installed contacts.
Q: Which substitute part has the highest inventory availability?
A: Part 282189-1 (black housing) has the highest inventory level at 3800 units in stock, followed by 281844-1 at 2404 units and 282956-1 at 2048 units.
Q: Are all these parts rated for the same temperature range?
A: Yes. All substitute parts listed, including 282762-1, operate across the identical temperature range of -30°C to 125°C. Temperature performance is not a differentiating factor among these equivalents.
Q: What is the Moisture Sensitivity Level (MSL) for these connectors?
A: All parts carry MSL rating of 1 (Unlimited), indicating unlimited shelf life without moisture control requirements during storage and handling.
Q: Do all substitute parts have the same RoHS compliance status?
A: No. Part 282762-1 and 282189-4 carry ROHS3 Compliant certification. Parts 281844-1, 282189-1, 282189-2, 282190-1, 282680-1, 282956-1, and 282189-7 carry RoHS Compliant certification. Both certifications indicate compliance with RoHS directives; ROHS3 represents the most current standard. Project requirements should determine which certification level is necessary.
Q: What is the pitch specification, and why is it important for substitution?
A: Pitch is 0.197" (5.00mm), representing the center-to-center distance between connector positions. This specification must remain constant for substitution compatibility. All listed parts maintain identical 5.00mm pitch, ensuring mechanical and electrical compatibility with mating connectors and PCB layouts.
