TE Connectivity AMP Connectors 282080-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 282080-2 is a 2-position rectangular connector plug housing from the Superseal series. This connector housing is designed for crimp termination with a 0.236" (6.00mm) pitch and operates across a temperature range of -40°C to 125°C. The part is actively manufactured and RoHS compliant, making it suitable for applications requiring reliable rectangular connector solutions. Substitute parts are identified to provide alternative options based on matching electrical and mechanical specifications, with variations in color and series designation.

Substiute Parts

282080-2

TE Connectivity AMP ConnectorsIn Stock: 796282080-2 Datasheet

Current PartRFQ

2-2232875-1

TE Connectivity AMP ConnectorsIn Stock: 60802-2232875-1 Datasheet

Parametric EquivalentRFQ

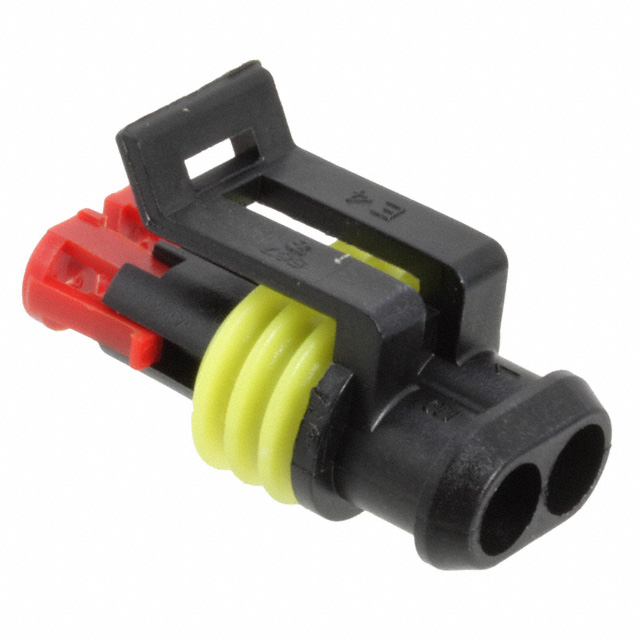

282080-1

TE Connectivity AMP ConnectorsIn Stock: 1736282080-1 Datasheet

Parametric EquivalentRFQ

282080-3

TE Connectivity AMP ConnectorsIn Stock: 6678282080-3 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 282080-2 are identified based on strict parametric equivalence across the following critical specifications:

Matching Parameters (Required for Substitution):

• Connector Type: Plug
• Contact Type: Female Socket
• Number of Positions: 2
• Pitch: 0.236" (6.00mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock

Variable Parameters (Allowed to Differ):

• Color (Gray, Black, Green, Natural)
• Series designation (Superseal or Grace Inertia, GIC)
• Insulation material formulation (PA66 Glass Filled or PA Nylon)
• Operating temperature upper limit (125°C or 105°C)
• RoHS certification version (RoHS Compliant or ROHS3 Compliant)

The substitute parts 282080-1, 282080-3, and 2-2232875-1 maintain full electrical and mechanical compatibility with the main part while offering alternative color options and series variants.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed maintain active product status and full compliance with environmental regulations. Selection between the main part and substitutes should be based on the following criteria:

For applications requiring maximum operating temperature of 125°C: Parts 282080-2, 282080-1, and 282080-3 are suitable. These three parts share identical temperature specifications and are all from the Superseal series with PA66 glass-filled insulation material.

For applications with operating temperature limited to 105°C: Part 2-2232875-1 from the Grace Inertia series is acceptable. This part features PA nylon insulation and carries ROHS3 compliance.

For color-specific requirements: Select the appropriate part number based on housing color: 282080-2 (Gray), 282080-1 (Black), 282080-3 (Green), or 2-2232875-1 (Natural).

For RoHS compliance verification: Parts 282080-1 and 2-2232875-1 carry ROHS3 certification, while 282080-2 and 282080-3 carry RoHS Compliant status. Both certifications satisfy current regulatory requirements.

All substitute parts are actively manufactured and available in production quantities.

Frequently Asked Questions (FAQ)

Q: Can 282080-1 be used as a direct replacement for 282080-2?

A: Yes. Part 282080-1 maintains identical electrical and mechanical specifications including connector type, contact type, position count, pitch, mounting type, termination method, and fastening type. The only differences are housing color (Black vs. Gray) and RoHS certification version (ROHS3 vs. RoHS Compliant). Both certifications are current and acceptable.

Q: What is the primary difference between 282080-3 and 2-2232875-1?

A: Part 282080-3 is from the Superseal series with PA66 glass-filled insulation and operates to 125°C. Part 2-2232875-1 is from the Grace Inertia series with PA nylon insulation and operates to 105°C. Both maintain identical connector specifications (2 positions, 6.00mm pitch, crimp termination, latch lock fastening). Selection depends on temperature requirements and series preference.

Q: Are contacts included with these connector housings?

A: No. All parts in this group are connector housings only. Contacts are not included and must be sourced separately.

Q: Can 2-2232875-1 be used in applications requiring 125°C operation?

A: No. Part 2-2232875-1 has a maximum operating temperature of 105°C. For applications requiring 125°C operation, use 282080-2, 282080-1, or 282080-3.

Q: What is the significance of the Moisture Sensitivity Level (MSL) designation?

A: Parts 282080-2, 282080-1, and 282080-3 carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling. Part 2-2232875-1 carries MSL Not Applicable, indicating this specification does not apply to that part.

Q: Are all substitute parts RoHS compliant?

A: Yes. All parts meet RoHS requirements. Parts 282080-2 and 282080-3 carry RoHS Compliant status, while parts 282080-1 and 2-2232875-1 carry ROHS3 Compliant status. Both designations satisfy current regulatory compliance.

Q: What is the difference between PA66 glass-filled and PA nylon insulation materials?

A: PA66 glass-filled insulation (used in 282080-2, 282080-1, 282080-3) provides enhanced mechanical strength and thermal performance. PA nylon insulation (used in 2-2232875-1) offers standard performance characteristics. Both materials are suitable for the specified operating conditions of their respective parts.

Q: Can these connector housings be used in high-temperature automotive applications?

A: Parts 282080-2, 282080-1, and 282080-3 support continuous operation to 125°C and are suitable for high-temperature automotive applications. Part 2-2232875-1 is limited to 105°C and should be evaluated against specific application temperature requirements.
