Phoenix Contact 2809597 Terminal Block - Equivalent & Substitute Parts

Part Overview

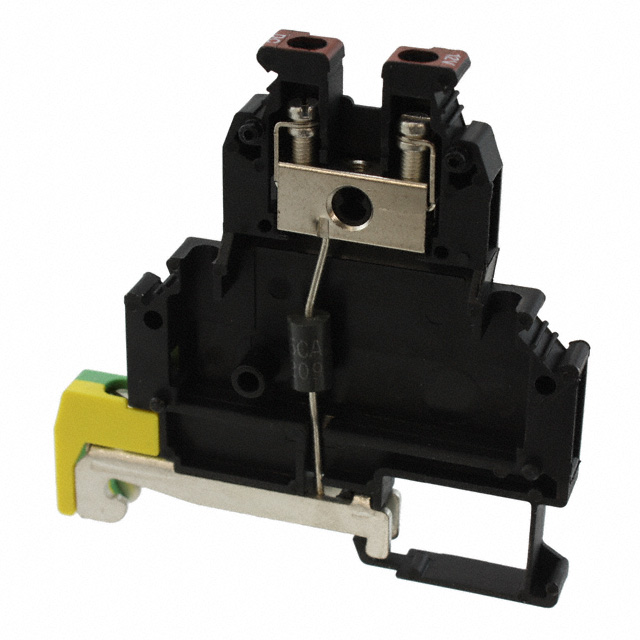

The Phoenix Contact 2809597 is a feed-through terminal block connector with 3 positions, designed for wire gauges 10-26 AWG (0.2-4mm²). This component features screw termination, operates at 12V UL with 30A current capacity, and includes integrated diode protection. The unit is housed in black polyamide (PA) nylon material with UL94 V-2 flammability rating.

The 2809597 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to maintain system continuity, ensure design compatibility, and support ongoing maintenance and production requirements.

Substiute Parts

2809597

Phoenix ContactIn Stock: 10622809597 Datasheet

Current PartRFQ

2906829

Phoenix ContactIn Stock: 10432906829 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 2906829 is identified based on the following substitution criteria:

Manufacturer Alignment: Both parts are manufactured by Phoenix Contact, ensuring design philosophy and quality standards consistency.

Functional Protection: The 2809597 includes integrated diode protection as a core feature. The 2906829 is a Transient Voltage Suppressor (TVS) module designed to provide circuit protection, addressing the same protective function through an alternative form factor.

Voltage Operating Range: The 2809597 operates at 12V UL. The 2906829 provides protection at 10VAC/15VDC continuous operating voltage with 25V protection level, compatible with the 12V operating specification.

Compliance & Certification: Both parts maintain RoHS compliance and carry UL-related certifications (UL94 V-2 for 2809597; cCSAus, CSA, UL for 2906829), ensuring regulatory alignment.

Application Context: Where the 2809597 provides integrated protection within a terminal block form factor, the 2906829 offers modular protection suitable for DIN Rail mounting, enabling system-level circuit protection in applications requiring the obsolete 2809597.

Parameter Comparison

Engineering Selection Recommendations

For Direct Terminal Block Replacement: The 2809597 is an obsolete feed-through terminal block with integrated diode protection. Direct mechanical and electrical replacement requires a Phoenix Contact terminal block from the active product portfolio with matching 3-position, 2-level configuration, 10-26 AWG wire gauge capacity, 30A current rating, and 12V voltage specification. The provided substitute list does not contain an exact terminal block equivalent.

For Circuit Protection Integration: The 2906829 TVS module provides transient voltage suppression suitable for protecting circuits previously served by the 2809597's integrated diode. This substitute is active, ROHS3 compliant, and carries full UL certification. Implementation requires DIN Rail mounting infrastructure and system-level integration rather than direct socket replacement.

Compliance Consideration: Both parts maintain RoHS compliance. The 2906829 offers enhanced ROHS3 compliance status and broader certification coverage (cCSAus, CSA, UL), supporting modern regulatory requirements.

Inventory & Availability: The 2809597 has 987 units in stock (obsolete status). The 2906829 has 974 units in stock with active product status, ensuring long-term availability for ongoing production and maintenance.

Frequently Asked Questions (FAQ)

Q: Can the 2906829 directly replace the 2809597 in existing assemblies?

A: No. The 2906829 is a TVS module requiring DIN Rail mounting, while the 2809597 is a screw-terminal feed-through block. Direct socket replacement is not possible. The 2906829 serves as a circuit protection alternative for applications requiring transient voltage suppression at the system level.

Q: What wire gauges are supported by these parts?

A: The 2809597 supports 10-26 AWG (0.2-4mm²). The 2906829 is a protection module without wire gauge specifications, as it integrates into the circuit protection layer rather than the termination layer.

Q: Are both parts RoHS compliant?

A: Yes. The 2809597 is RoHS Compliant. The 2906829 is ROHS3 Compliant, representing enhanced compliance with current regulations.

Q: What is the voltage rating difference between these parts?

A: The 2809597 operates at 12V UL. The 2906829 provides continuous operating voltage of 10VAC/15VDC with a 25V protection level, compatible with 12V system specifications.

Q: Why is the 2809597 marked as obsolete?

A: Product obsolescence reflects Phoenix Contact's product lifecycle management. The 2906829's active status ensures availability for new designs and ongoing support.

Q: What certifications apply to the 2906829?

A: The 2906829 carries cCSAus, CSA, CSAus, and UL approvals, providing comprehensive regulatory coverage for North American and international applications.
