Phoenix Contact 2794482 Terminal Block Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2794482 is a CLIPLINE UKK series terminal block connector designed for feed-through applications with 4 positions and 2 levels. This component accepts wire gauges from 12-24 AWG (0.2-4mm²) and is rated for 32A at 500V per IEC standards. The part is currently classified as obsolete, making identification of compatible substitute components essential for ongoing system maintenance and new design implementations.

Substiute Parts

2794482

Phoenix ContactIn Stock: 9962794482 Datasheet

Current PartRFQ

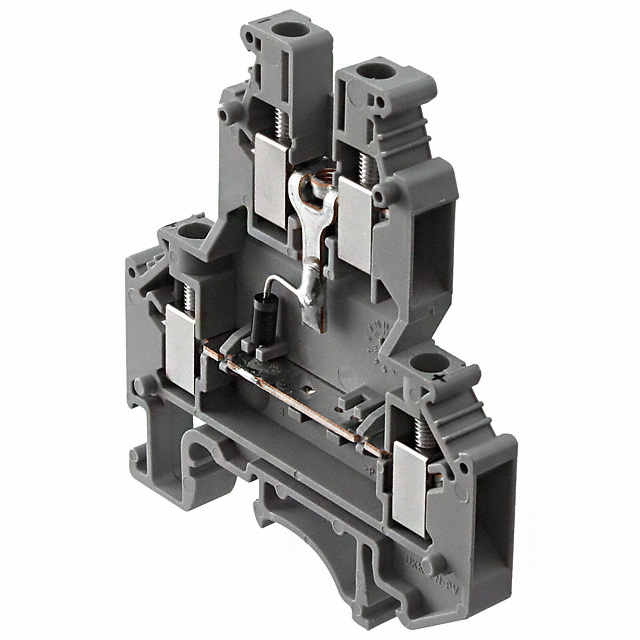

2791032

Phoenix ContactIn Stock: 8102791032 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 2794482 is determined by the following critical parameters:

• Series compatibility: CLIPLINE UKK
• Physical configuration: 4 positions, 2 levels, 6.2mm terminal width
• Termination method: Screw-type connection
• Electrical ratings: Minimum 32A current capacity and 500V voltage rating per IEC
• Wire gauge accommodation: Must accept the application's wire range
• Insulation material and flammability: Polyamide (PA), Nylon with UL94 V-0 rating
• Integrated features: Diode functionality

The substitute part 2791032 maintains compatibility across all structural and electrical parameters while offering an extended wire gauge range and enhanced product status.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2791032 is a direct substitute for the obsolete 2794482 within the CLIPLINE UKK series. Both components share identical mechanical and electrical specifications for IEC ratings, insulation properties, and core functionality.

The 2791032 offers the following advantages:

• Active product status ensures ongoing availability and manufacturer support
• Extended wire gauge range (10-26 AWG versus 12-24 AWG) provides greater application flexibility
• UL certification with 30A at 600V rating supplements IEC compliance
• ROHS3 compliance represents current regulatory alignment
• REACH compliance status is documented

For applications requiring the exact 12-24 AWG specification of the original part, the 2791032 remains fully compatible as it encompasses this range within its broader 10-26 AWG capability.

Frequently Asked Questions (FAQ)

Q: Can the 2791032 directly replace the 2794482 in existing installations?

A: Yes. Both components are CLIPLINE UKK series terminal blocks with identical 4-position, 2-level configurations, 6.2mm terminal width, screw termination, and IEC electrical ratings. Physical and electrical compatibility is confirmed.

Q: What is the significance of the extended wire gauge range in the 2791032?

A: The 2791032 accepts 10-26 AWG (0.2-4mm²) compared to the 2794482's 12-24 AWG range. This broader range accommodates larger and smaller conductors, increasing design flexibility without requiring alternative components.

Q: Are there compliance differences between the two parts?

A: The 2794482 carries RoHS Compliant status, while the 2791032 is ROHS3 Compliant and REACH Affected. The 2791032 reflects current regulatory requirements. Both maintain UL94 V-0 flammability ratings and identical insulation materials.

Q: Does the 2791032 include UL certification?

A: Yes. The 2791032 is rated for 30A at 600V per UL standards, supplementing its IEC rating of 32A at 500V. The 2794482 does not specify UL ratings.

Q: Are packaging differences relevant to substitution?

A: The 2794482 is listed with no specified packaging, while the 2791032 is supplied in Bulk packaging. Packaging does not affect electrical or mechanical compatibility; verify bulk quantities meet procurement requirements.

Q: What is the stripping length requirement for both parts?

A: Both the 2794482 and 2791032 require 8mm wire stripping length for proper termination.
