KYOCERA AVX 277200110000002 Equivalent & Substitute Parts

Part Overview

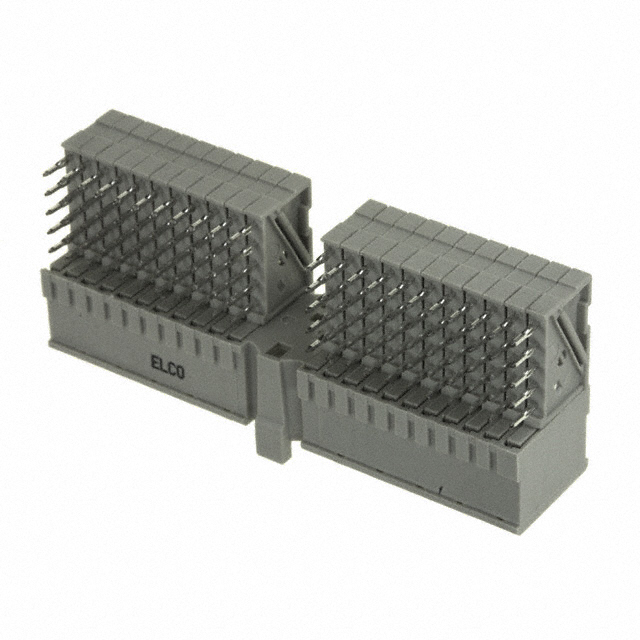

The KYOCERA AVX 277200110000002 is a 110-position receptacle connector with female sockets, designed for CompactPCI J1/J4 applications. This backplane connector features 0.079" (2.00mm) pitch, right-angle through-hole mounting, and press-fit termination. The part is classified as obsolete, making equivalent substitute parts necessary for ongoing system maintenance and new design implementations where CompactPCI backplane connectivity is required.

Key Parameters

Parameter	Value
Manufacturer Part Number	277200110000002
Manufacturer	KYOCERA AVX
Category	Backplane Connectors
Connector Type	Receptacle, Female Sockets
Number of Positions	110
Pitch	0.079" (2.00mm)
Number of Rows	5
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit
Connector Usage	CompactPCI J1/J4
Contact Finish	Gold
Current Rating	1 A
Operating Temperature	-55°C ~ 125°C
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the KYOCERA AVX 277200110000002 is determined by strict equivalence across the following critical parameters:

Connector Type & Configuration: Receptacle, Female Sockets with 110 positions
Electrical Specifications: 0.079" (2.00mm) pitch, 1 A current rating
Mechanical Interface: Right-angle through-hole mounting with press-fit termination
Connector Style: A 22 configuration
Environmental Compliance: Operating temperature range -55°C ~ 125°C, MSL 1 (Unlimited)

All five substitute parts from HARTING (har-bus® HM series) meet these core electrical and mechanical requirements. Variations exist in connector usage designation (CompactPCI J1/J4 vs. Daughtercard) and optional features (Upper Shield presence), but these do not affect functional substitutability for the base connector interface.

Parameter Comparison

Parameter	277200110000002 (KYOCERA AVX)	17211101101 (HARTING)	17211101102 (HARTING)	17211102101 (HARTING)	17211102102 (HARTING)	17211104102 (HARTING)
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	110	110	110	110	110	110
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	5	5	5	5	5	5
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Current Rating	1 A	1 A	1 A	1 A	1 A	1 A
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Connector Style	A 22	A 22	A 22	A 22	A 22	A 22
Product Status	Obsolete	Active	Active	Active	Active	Active
RoHS Status	Not specified	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

All five HARTING har-bus® HM series substitutes provide direct functional equivalence to the obsolete KYOCERA AVX 277200110000002. Selection among the substitute options should be based on the following criteria:

Product Status & Compliance: All substitute parts carry Active product status with ROHS3 compliance, ensuring long-term availability and regulatory alignment for new designs and production continuity.

Connector Usage Designation:

Parts 17211101101, 17211101102, and 17211102102 are designated for CompactPCI J1/J4 applications, matching the original part's intended usage.
Part 17211102101 is designated for Daughtercard applications.
Part 17211104102 carries no specific connector usage designation.

Optional Features:

Parts 17211101101, 17211101102, and 17211104102 include Upper Shield features.
Parts 17211102101 and 17211102102 do not include Upper Shield features.

For direct replacement in existing CompactPCI J1/J4 backplane designs, parts 17211101102 or 17211102102 are the primary selections. Part 17211101101 offers equivalent functionality with upper shield protection. Inventory availability should be evaluated based on procurement requirements.

Frequently Asked Questions (FAQ)

Q: Can HARTING har-bus® HM series connectors directly replace the KYOCERA AVX 277200110000002?

A: Yes. All five HARTING substitute parts meet the electrical and mechanical specifications required for direct substitution. They share identical pin counts (110 positions), pitch (0.079" / 2.00mm), mounting configuration (through-hole right-angle), termination method (press-fit), and current rating (1 A).

Q: What is the difference between the five HARTING substitute options?

A: The primary differences are connector usage designation and the presence of upper shield features. Parts 17211101102 and 17211102102 are specified for CompactPCI J1/J4 applications. Parts 17211101101, 17211101102, and 17211104102 include upper shield protection. Part 17211102101 is designated for daughtercard applications without upper shield.

Q: Are all substitute parts RoHS compliant?

A: Yes. All five HARTING substitute parts are ROHS3 compliant, whereas the original KYOCERA AVX part does not specify RoHS status.

Q: Does the presence of an upper shield affect connector compatibility?

A: The upper shield is an optional feature that does not affect the core electrical or mechanical interface. Selection should be based on system design requirements for EMI shielding.

Q: What packaging is available for the substitute parts?

A: All five HARTING substitute parts are supplied in tube packaging.

Q: Are there inventory considerations for these substitutes?

A: Inventory levels vary: 17211101101 (1900 pcs), 17211101102 (2209 pcs), 17211102101 (866 pcs), 17211102102 (2300 pcs), and 17211104102 (951 pcs) are currently in stock.
