Phoenix Contact 2714284 Terminal Block Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2714284 is a 4-position feed-through terminal block connector rated for 8-26 AWG wire gauge with screw termination. Designed for the CLIPLINE PIK series, this component operates at 41 A (IEC) / 30 A (UL) and 400V (IEC) / 300V (UL). The product is classified as obsolete, making identification of equivalent substitute parts essential for ongoing system maintenance and new design implementations where legacy compatibility is not required.

Substiute Parts

2714284

Phoenix ContactIn Stock: 10862714284 Datasheet

Current PartRFQ

3076042

Phoenix ContactIn Stock: 7213076042 Datasheet

SimilarRFQ

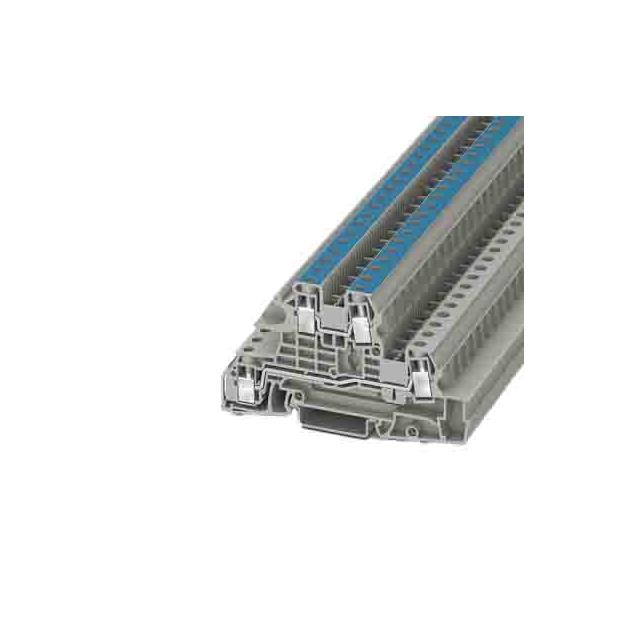

3076045

Phoenix ContactIn Stock: 8823076045 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 2714284 are identified based on the following critical parameters that determine functional equivalence:

• Number of Positions & Levels: Both substitute parts maintain 4 positions and 2 levels, ensuring mechanical and electrical compatibility with existing mounting and wiring infrastructure.
• Terminal Width: All parts share an 8.2 mm terminal width, confirming physical interchangeability.
• Termination Style: Screw termination is consistent across all parts, maintaining installation methodology.
• Wire Gauge Compatibility: Substitute parts accept 8-24 AWG (0.2-10 mm²), which encompasses the lower range of the original 8-26 AWG specification. This represents a compatible subset for most applications.
• Insulation Material & Flammability: Polyamide (PA) nylon with UL94 V-0 rating is maintained across all parts, ensuring equivalent environmental and safety performance.
• Stripping Length: 9 mm specification is consistent, supporting identical installation procedures.
• RoHS Compliance: All parts maintain RoHS compliance status.

The substitute parts (3076042 and 3076045) transition from the obsolete CLIPLINE PIK series to the active CLIPLINE UTI series, providing modern alternatives with equivalent mechanical and electrical characteristics for the supported wire gauge range.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2714284 is classified as obsolete. For applications currently using this component, transition to active product lines is recommended to ensure long-term supply chain stability and continued manufacturer support.

Phoenix Contact 3076042 and Phoenix Contact 3076045 are both active products from the CLIPLINE UTI series. Both substitutes provide equivalent mechanical and electrical performance for wire gauges within the 8-24 AWG range. The primary distinction between these two substitutes relates to their specific terminal configurations (6-L/L versus 6-L/N designations), which may affect their application context but do not impact their substitution eligibility for the 2714284 in terms of core electrical and mechanical parameters.

Selection between 3076042 and 3076045 should be based on the specific terminal configuration requirements of the target application. Both maintain RoHS compliance and UL94 V-0 flammability certification, ensuring regulatory and safety equivalence with the original part.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 3076042 or 3076045 directly replace the 2714284 in existing installations?

A: Both substitute parts share identical mechanical dimensions (4 positions, 2 levels, 8.2 mm terminal width) and termination methodology (screw). Wire gauge compatibility exists for conductors within the 8-24 AWG range. Applications utilizing wire gauges between 24-26 AWG would require evaluation, as the substitutes do not support gauges above 24 AWG.

Q: What is the difference between Phoenix Contact 3076042 and 3076045?

A: Both parts are mechanically and electrically equivalent for substitution purposes. The designations 6-L/L and 6-L/N refer to specific terminal configurations. Selection between these two should be determined by the terminal type requirements of the target application.

Q: Are the substitute parts RoHS compliant?

A: Yes. Both Phoenix Contact 3076042 and 3076045 maintain RoHS compliance status, matching the compliance profile of the original 2714284.

Q: Do the substitute parts maintain the same flammability rating?

A: Yes. All parts, including the original and both substitutes, carry a UL94 V-0 flammability rating, ensuring equivalent fire safety performance.

Q: What is the significance of the product status change from obsolete to active?

A: The transition from the obsolete CLIPLINE PIK series (2714284) to the active CLIPLINE UTI series (3076042, 3076045) ensures ongoing manufacturer support, availability, and compliance with current industry standards. Active products receive continued technical support and supply chain prioritization.
