Phoenix Contact 2714022 Terminal Block - Equivalent & Substitute Parts

Part Overview

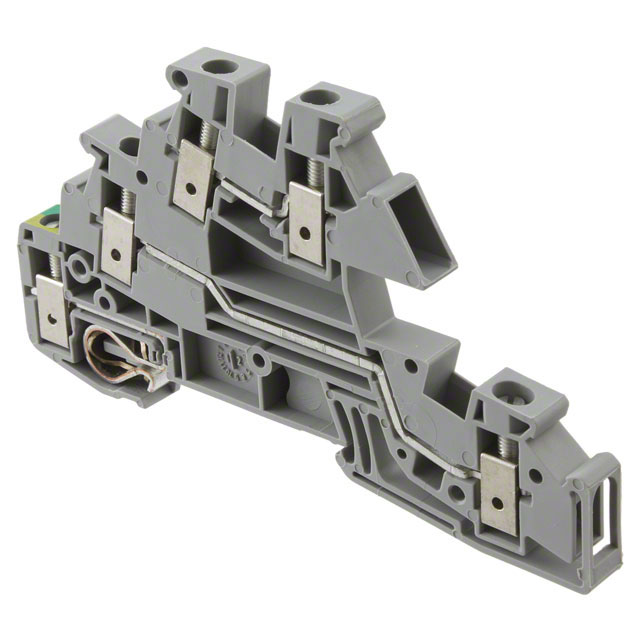

The Phoenix Contact 2714022 is a CLIPLINE PIK series terminal block connector designed for feed-through applications with 5 positions across 3 levels. This component features screw termination, supports 12-28 AWG wire gauges, and is rated for 20 A at 300V (UL standard). The product is classified as obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new designs requiring equivalent functionality.

Key Parameters

Parameter	Value
Manufacturer Part Number	2714022
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Series	CLIPLINE PIK
Product Status	Obsolete
Type	Feed Through (2), Isolated
Number of Positions	5
Number of Levels	3
Termination Style	Screw
Current Rating (UL)	20 A
Voltage Rating (UL)	300V
Wire Gauge Range (AWG)	12-28 AWG
Wire Gauge Range (mm²)	0.2-4mm²
Color	Gray
Material - Insulation	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2714022 is determined by the following critical parameters:

Core Compatibility Criteria:

Feed-through connector type with isolated configuration
5-position, 3-level terminal block architecture
Screw termination method
Wire gauge accommodation within 12-28 AWG range
UL voltage rating of 300V minimum
Gray color and polyamide insulation material
RoHS compliance status

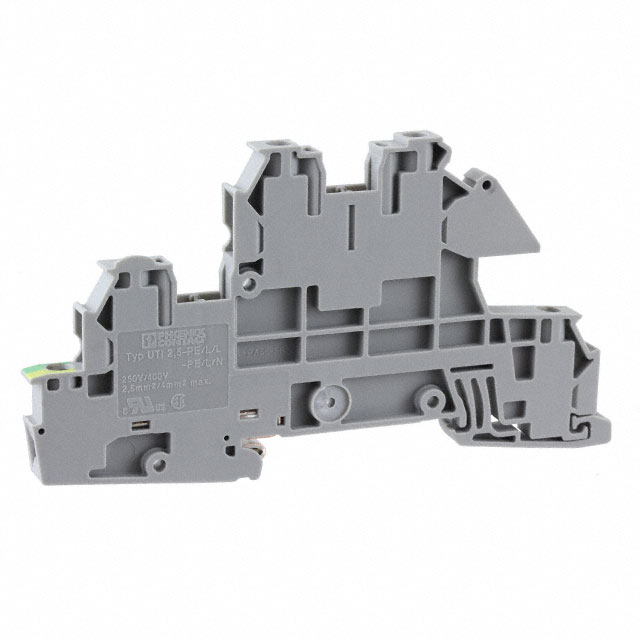

The Phoenix Contact 3076029 qualifies as a substitute based on matching these core parameters. Both components share identical position count, level configuration, termination style, voltage rating, wire gauge range (with 3076029 supporting 12-26 AWG, a subset of the original range), insulation material, and color specification. Both maintain RoHS compliance and support the same 0.2-4mm² wire cross-section.

Parameter Comparison

Parameter	2714022 (Main Part)	3076029 (Substitute)
Manufacturer	Phoenix Contact	Phoenix Contact
Category	Terminal Blocks	Terminal Blocks
Series	CLIPLINE PIK	CLIPLINE UT
Product Status	Obsolete	Active
Type	Feed Through (2), Isolated	Feed Through (2), Isolated
Number of Positions	5	5
Number of Levels	3	3
Terminal Width	6.2mm	5.2mm
Termination Style	Screw	Screw
Current Rating (IEC)	32 A	24 A
Current Rating (UL)	20 A	20 A
Voltage Rating (UL)	300V	300V
Wire Gauge Range (AWG)	12-28 AWG	12-26 AWG
Wire Gauge Range (mm²)	0.2-4mm²	0.2-4mm²
Color	Gray	Gray
Material - Insulation	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2	UL94 V-0
Stripping Length	9mm	9mm
RoHS Status	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99
HTSUS	8536.69.8000	8536.69.8000

Engineering Selection Recommendations

The Phoenix Contact 3076029 is an active-status substitute for the obsolete 2714022. Both components meet identical UL electrical specifications (20 A at 300V) and share the same mechanical configuration for 5-position, 3-level feed-through terminal blocks with screw termination.

Key considerations for selection:

Compliance Advantage: The 3076029 carries ROHS3 compliance and UL94 V-0 flammability rating, representing improved material specifications compared to the 2714022's UL94 V-2 rating.

Wire Gauge Accommodation: The 3076029 supports 12-26 AWG, which covers the majority of the original 12-28 AWG range. Applications requiring 27-28 AWG wire accommodation should verify compatibility with the substitute's terminal design.

Terminal Geometry: The 3076029 features a 5.2mm terminal width compared to the 2714022's 6.2mm width. This dimensional difference does not affect electrical performance but may impact physical mounting or panel layout considerations.

Availability: The 3076029 maintains active product status with current manufacturing support, ensuring long-term availability and supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 3076029 directly replace the 2714022 in existing installations?

A: The 3076029 matches the electrical ratings (20 A, 300V UL) and mechanical configuration (5 positions, 3 levels, screw termination) of the 2714022. Physical mounting and panel cutout dimensions should be verified, as terminal width differs (5.2mm vs. 6.2mm). Wire gauge compatibility extends to 12-26 AWG; applications using 27-28 AWG wire should confirm terminal acceptance.

Q: What is the significance of the UL94 V-0 rating on the 3076029 compared to the 2714022's UL94 V-2?

A: UL94 V-0 represents a higher flammability classification, indicating superior flame-retardant properties. This is a material improvement in the substitute component and does not create compatibility issues for applications previously using the V-2 rated part.

Q: Are there packaging differences between these components?

A: The 2714022 is listed with unspecified packaging, while the 3076029 is supplied in bulk packaging. Procurement quantities and handling procedures may differ accordingly.

Q: Does the wire gauge range difference (12-28 AWG vs. 12-26 AWG) affect substitution suitability?

A: The 3076029 accommodates 12-26 AWG, which covers standard industrial wire gauges. Applications exclusively using 27-28 AWG conductors should verify terminal acceptance with the substitute design specifications.

Q: What is the REACH compliance status of the 3076029?

A: The 3076029 is listed as REACH Unaffected, indicating compliance with REACH regulatory requirements.
