Honeywell 26PCCFG5G Pressure Sensor Equivalent & Substitute Parts

Part Overview

The Honeywell 26PCCFG5G is an active, board-mount pressure sensor designed for compound pressure measurement applications. This 4-SIP module sensor operates across a ±15PSI (±103.42kPa) range with Wheatstone Bridge output and temperature compensation. The part is RoHS compliant and currently in active production status with 729 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity.

Substiute Parts

26PCCFG5G

Honeywell Sensing and Productivity SolutionsIn Stock: 78126PCCFG5G Datasheet

Current PartRFQ

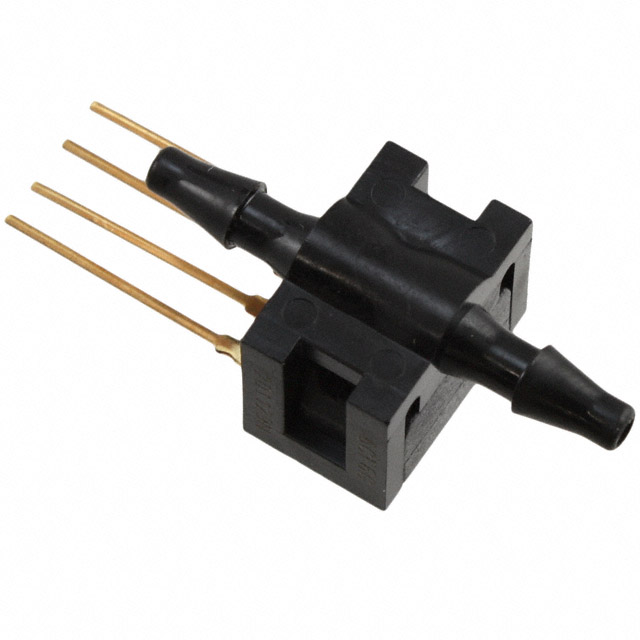

26PCCFG6G

Honeywell Sensing and Productivity SolutionsIn Stock: 208126PCCFG6G Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 26PCCFG5G are identified based on strict parametric equivalence within the 26PC series. The substitution criteria are determined by the following key parameters:

Critical Matching Parameters:

• Pressure Type: Compound
• Operating Pressure Range: ±15PSI (±103.42kPa)
• Output Type: Wheatstone Bridge
• Output Range: 0 mV ~ 100 mV (10V)
• Accuracy: ±0.5%
• Supply Voltage Range: 2.5V ~ 16V
• Port Size and Style: Male - 0.14" (3.56mm) Tube, Barbed
• Operating Temperature Range: -40°C ~ 85°C
• Maximum Pressure: ±45PSI (±310.26kPa)
• Package Type: 4-SIP Module
• Mounting Type: Through Hole
• Termination Style: PC Pin
• Temperature Compensation: Present

Parts meeting all these parameters are classified as parametric equivalents and are suitable for direct substitution in applications where the 26PCCFG5G is specified.

Parameter Comparison

Engineering Selection Recommendations

The 26PCCFG6G is a parametric equivalent to the 26PCCFG5G. Both parts are manufactured by Honeywell Sensing and Productivity Solutions, carry active product status, and meet identical electrical and mechanical specifications. Both parts are RoHS compliant with MSL rating 1 (Unlimited) and REACH Unaffected status, meeting regulatory requirements for industrial and commercial applications.

Selection between these parts may be based on inventory availability. The 26PCCFG6G currently has higher stock levels (1977 units) compared to the 26PCCFG5G (729 units), which may influence procurement decisions for high-volume applications or extended lead-time mitigation.

Frequently Asked Questions (FAQ)

Q: Can the 26PCCFG6G be used as a direct replacement for the 26PCCFG5G?

A: Yes. The 26PCCFG6G meets all electrical and mechanical parameters of the 26PCCFG5G, including pressure range, output characteristics, accuracy, supply voltage, port configuration, temperature range, and package type. Direct substitution is supported.

Q: Are there any differences in the electrical output between these parts?

A: No. Both parts provide identical Wheatstone Bridge output in the 0 mV ~ 100 mV (10V) range with ±0.5% accuracy across the ±15PSI operating pressure range.

Q: Do both parts have the same physical footprint and mounting requirements?

A: Yes. Both parts use 4-SIP Module packaging with through-hole PC Pin termination and identical port configuration (Male - 0.14" barbed tube). PCB layout and mounting procedures are identical.

Q: Are there compliance or certification differences between these parts?

A: No. Both parts carry identical RoHS compliance status, MSL rating 1 (Unlimited), and REACH Unaffected status.

Q: What is the temperature compensation range for these sensors?

A: Both parts include temperature compensation across the -40°C ~ 85°C operating temperature range.

Q: Can these parts be used interchangeably in existing designs?

A: Yes. The parametric equivalence of these parts supports interchangeable use in designs where the 26PCCFG5G is specified, provided the application requirements align with the stated electrical and mechanical parameters.
