Equivalent & Substitute Parts for Honeywell 26PCBFS6G Pressure Sensor

Part Overview

The Honeywell 26PCBFS6G is a compound pressure sensor designed for board mount applications, delivering a Wheatstone Bridge output signal in the range of 0 mV to 50 mV at 10V excitation. This sensor operates across a ±5PSI (±34.47kPa) measurement range with ±0.5% accuracy and temperature compensation across -40°C to 85°C. The 26PCBFS6G is classified as obsolete, making identification of functionally equivalent active alternatives essential for ongoing production and maintenance applications. Substitute parts must maintain identical electrical performance, mechanical compatibility, and environmental specifications to ensure direct replacement capability without circuit redesign.

Substiute Parts

26PCBFS6G

Honeywell Sensing and Productivity SolutionsIn Stock: 83926PCBFS6G Datasheet

Current PartRFQ

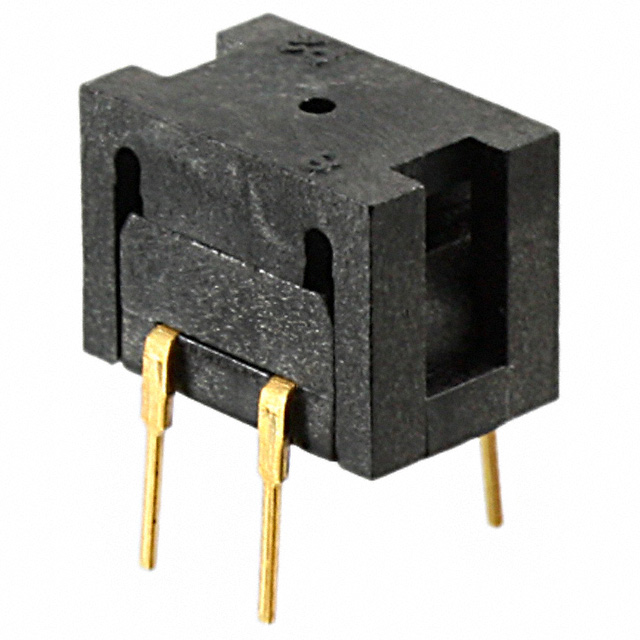

26PCBFD2G

Honeywell Sensing and Productivity SolutionsIn Stock: 73626PCBFD2G Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 26PCBFS6G is determined by strict equivalence across the following critical parameters:

Electrical Equivalence Requirements:

• Identical pressure measurement range: ±5PSI (±34.47kPa) compound
• Identical output type: Wheatstone Bridge configuration
• Identical output signal range: 0 mV ~ 50 mV at 10V excitation
• Identical accuracy specification: ±0.5%
• Compatible supply voltage range: 2.5V ~ 16V
• Identical maximum pressure rating: ±20PSI (±137.9kPa)

Mechanical & Environmental Equivalence Requirements:

• Identical package type: 4-SIP Module
• Identical mounting method: Through Hole
• Identical port style: No Port
• Identical operating temperature range: -40°C ~ 85°C
• Temperature compensation feature present
• RoHS Compliant status maintained

The 26PCBFD2G meets all substitution criteria as an active product within the same 26PC series, providing direct functional replacement for the obsolete 26PCBFS6G.

Parameter Comparison

Engineering Selection Recommendations

The 26PCBFD2G is the direct equivalent substitute for the obsolete 26PCBFS6G. Both components are manufactured by Honeywell Sensing and Productivity Solutions and belong to the 26PC series. The 26PCBFD2G maintains active product status, ensuring continued availability and supply chain reliability compared to the obsolete 26PCBFS6G.

All electrical parameters, mechanical specifications, and environmental ratings are identical between the two parts. The 26PCBFD2G provides equivalent performance in compound pressure measurement applications requiring ±5PSI range, Wheatstone Bridge output, and through-hole 4-SIP module packaging.

Both parts carry RoHS Compliant certification and identical moisture sensitivity ratings, confirming regulatory and environmental compliance equivalence. No circuit modifications, recalibration, or application redesign is required when transitioning from 26PCBFS6G to 26PCBFD2G.

Frequently Asked Questions (FAQ)

Q: Can the 26PCBFD2G directly replace the 26PCBFS6G without any modifications?

A: Yes. The 26PCBFD2G is a direct functional equivalent. All electrical outputs, pressure ranges, accuracy specifications, supply voltage requirements, operating temperature ranges, and package configurations are identical. No circuit redesign or recalibration is necessary.

Q: What is the primary difference between these two parts?

A: The primary difference is product status. The 26PCBFS6G is obsolete, while the 26PCBFD2G is active. The 26PCBFD2G provides continued availability and supply chain support for applications currently using the 26PCBFS6G.

Q: Are the 4-SIP module packages mechanically identical?

A: Yes. Both the 26PCBFS6G and 26PCBFD2G use identical 4-SIP Module packaging with through-hole mounting. PCB footprints and mounting hole patterns are compatible.

Q: Do both sensors require the same excitation voltage?

A: Yes. Both sensors operate with a supply voltage range of 2.5V to 16V and produce identical output signals of 0 mV to 50 mV at 10V excitation.

Q: Are there any environmental or compliance differences?

A: No. Both parts are RoHS Compliant, carry identical moisture sensitivity levels (MSL 1 - Unlimited), and operate across the same temperature range of -40°C to 85°C with temperature compensation.

Q: Which part should be selected for new designs?

A: The 26PCBFD2G should be selected for new designs due to its active product status and guaranteed long-term availability. Existing designs using the 26PCBFS6G can transition to the 26PCBFD2G without modifications.
