Amphenol RF 262107-10 MMCX Connector Jack Equivalent & Substitute Parts

Part Overview

The Amphenol RF 262107-10 is an MMCX Connector Jack, Female Socket rated at 50 Ohms for board edge, cutout mounting with surface mount solder termination. This component is classified as Active product status and is RoHS3 compliant. Substitute parts are identified when equivalent electrical specifications, mechanical mounting configurations, and connector style parameters match the original component, enabling direct replacement in RF coaxial connector applications operating up to 6 GHz.

Substiute Parts

262107-10

Amphenol RFIn Stock: 1083262107-10 Datasheet

Current PartRFQ

908-22100

Amphenol RFIn Stock: 2091908-22100 Datasheet

Parametric EquivalentRFQ

EMPCB.SMAFSTJ.B.HT

Taoglas LimitedIn Stock: 2524EMPCB.SMAFSTJ.B.HT Datasheet

SimilarRFQ

PCB.SMAFRA.HT

Taoglas LimitedIn Stock: 9897PCB.SMAFRA.HT Datasheet

SimilarRFQ

135-3711-801

Cinch Connectivity SolutionsIn Stock: 20724135-3711-801 Datasheet

Parametric EquivalentRFQ

82_MMCX-S50-0-2/111_KE

Huber+Suhner, Inc.In Stock: 102082_MMCX-S50-0-2/111_KE Datasheet

Parametric EquivalentRFQ

MCSF96GT-T/R

Lighthorse Technologies, IncIn Stock: 2878MCSF96GT-T/R Datasheet

Parametric EquivalentRFQ

R110422100

Radiall USA, Inc.In Stock: 2466R110422100 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 262107-10 are classified into two categories based on parametric equivalence:

Parametric Equivalents (Full Compatibility): Parts that match all critical electrical and mechanical parameters including connector style (MMCX), connector type (Jack, Female Socket), impedance (50 Ohms), mounting type (Board Edge, Cutout; Surface Mount), contact and shield termination (Solder), fastening type (Snap-On), frequency rating (6 GHz), center contact material (Beryllium Copper), body material (Brass), body finish (Gold), center contact plating (Gold), dielectric material (PTFE or compatible), mating cycles (500), and compliance certifications (RoHS3).

Similar Parts (Functional Alternatives): Parts that share the same impedance (50 Ohms), connector type (Jack, Female Socket), contact and shield termination (Solder), and compliance certifications but differ in connector style (SMA instead of MMCX) or mounting configuration (End Launch or Right Angle instead of Board Edge, Cutout). These parts require mechanical and electrical re-evaluation for application fit.

The following parameters determine substitution eligibility:

• Connector Style and Type
• Impedance Rating
• Mounting Type and Configuration
• Termination Method
• Frequency Rating
• Material Composition
• Compliance Status

Parameter Comparison

Engineering Selection Recommendations

Direct Parametric Equivalents (Recommended for Drop-In Replacement):

The following parts are parametric equivalents to the Amphenol RF 262107-10 and are suitable for direct substitution in applications requiring MMCX Jack, Female Socket connectors with 50 Ohm impedance, board edge cutout mounting, and surface mount solder termination:

1. Amphenol RF 908-22100 - Identical electrical and mechanical specifications. Active product status. RoHS3 compliant. Higher inventory availability (2037 pcs). Operating temperature range specified as -65°C to 165°C.

2. Cinch Connectivity Solutions 135-3711-801 - Identical electrical and mechanical specifications. Active product status. RoHS3 compliant. Highest inventory availability (20648 pcs). Operating temperature range -55°C to 155°C. Voltage rating 170 V.

3. Huber+Suhner, Inc. 82_MMCX-S50-0-2/111_KE - Identical electrical and mechanical specifications. Active product status. RoHS3 compliant. Dielectric material includes PFA and PTFE. Operating temperature range -55°C to 155°C. Voltage rating 170 V.

4. Lighthorse Technologies, Inc. MCSF96GT-T/R - Identical electrical and mechanical specifications. Active product status. RoHS compliant. Operating temperature range -65°C to 165°C. Packaged in Tape & Reel format.

5. Radiall USA, Inc. R110422100 - Identical electrical and mechanical specifications. Active product status. RoHS3 compliant. Operating temperature range -55°C to 155°C. Voltage rating 250 V.

Similar Parts (Functional Alternatives Requiring Application Re-evaluation):

The following parts share core electrical specifications (50 Ohm impedance, Jack Female Socket type, solder termination) but differ in connector style or mounting configuration:

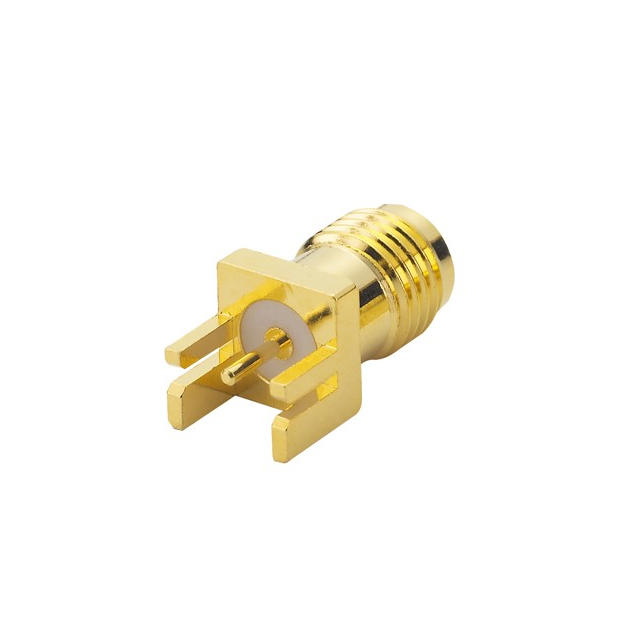

1. Taoglas Limited EMPCB.SMAFSTJ.B.HT - SMA connector style (not MMCX). Board edge end launch mounting (not cutout). Threaded fastening (not snap-on). Frequency rating 12.4 GHz. Voltage rating 335 V. RoHS3 compliant. Requires mechanical redesign for board integration.

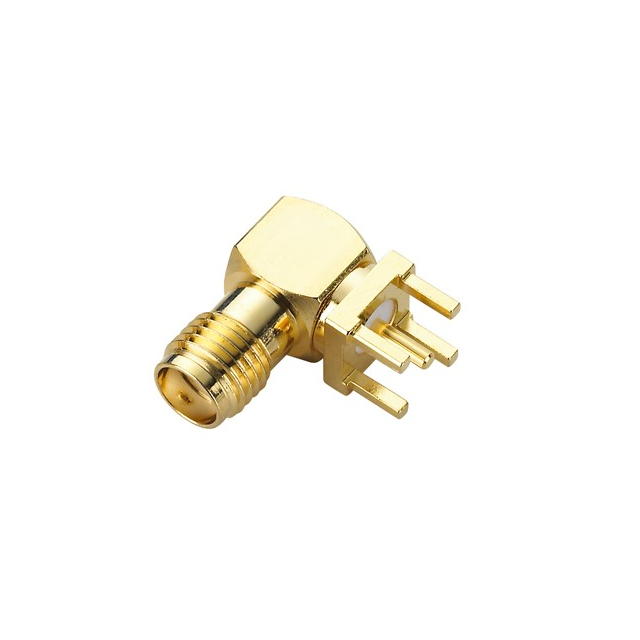

2. Taoglas Limited PCB.SMAFRA.HT - SMA connector style (not MMCX). Through hole right angle mounting (not board edge cutout). Threaded fastening (not snap-on). Frequency rating 6 GHz. Voltage rating 500 V. RoHS3 compliant. Requires mechanical redesign for board integration.

Frequently Asked Questions (FAQ)

Q: Can I use part 908-22100 as a direct replacement for 262107-10?

A: Yes. Part 908-22100 is a parametric equivalent with identical connector style (MMCX), type (Jack, Female Socket), impedance (50 Ohms), mounting configuration (Board Edge, Cutout; Surface Mount), termination method (Solder), fastening type (Snap-On), frequency rating (6 GHz), material composition, and compliance certifications. It is suitable for direct substitution.

Q: What is the difference between the MMCX equivalents and the SMA alternatives?

A: MMCX equivalents (908-22100, 135-3711-801, 82_MMCX-S50-0-2/111_KE, MCSF96GT-T/R, R110422100) maintain identical connector style, mounting type, and fastening mechanism. SMA alternatives (EMPCB.SMAFSTJ.B.HT, PCB.SMAFRA.HT) use a different connector style with threaded fastening and different mounting configurations (end launch or right angle). SMA parts require mechanical board redesign and are not drop-in replacements.

Q: Are all substitute parts RoHS3 compliant?

A: Five of the six MMCX equivalents are RoHS3 compliant (908-22100, 135-3711-801, 82_MMCX-S50-0-2/111_KE, R110422100). The Lighthorse Technologies MCSF96GT-T/R is RoHS compliant but not specifically RoHS3 certified. Both SMA alternatives are RoHS3 compliant.

Q: What is the operating temperature range for the main part 262107-10?

A: The operating temperature range is not specified in the provided data for part 262107-10. Equivalent parts specify ranges between -65°C to 165°C (908-22100, MCSF96GT-T/R) and -55°C to 155°C (135-3711-801, 82_MMCX-S50-0-2/111_KE, R110422100).

Q: Do all parts have the same mating cycle rating?

A: All MMCX equivalents specify 500 mating cycles. The SMA alternative parts do not specify mating cycle ratings in the provided data.

Q: What packaging formats are available?

A: MMCX equivalents are available in Bulk packaging, except for Lighthorse Technologies MCSF96GT-T/R which is supplied in Tape & Reel format. SMA alternatives are supplied in Tray packaging.

Q: Can I substitute based on frequency rating alone?

A: No. While frequency rating is a critical parameter, substitution requires matching multiple parameters including connector style, type, impedance, mounting configuration, termination method, and fastening type. The SMA alternatives have higher frequency ratings (12.4 GHz for EMPCB.SMAFSTJ.B.HT) but are not suitable substitutes due to different connector style and mounting type.

Q: What is the voltage rating difference between parts?

A: The main part 262107-10 does not specify a voltage rating. MMCX equivalents specify ratings of 170 V (135-3711-801, 82_MMCX-S50-0-2/111_KE) and 250 V (R110422100). SMA alternatives specify 335 V (EMPCB.SMAFSTJ.B.HT) and 500 V (PCB.SMAFRA.HT).

Q: Are there inventory considerations for part selection?

A: Yes. Cinch Connectivity Solutions 135-3711-801 has the highest inventory (20648 pcs), followed by Taoglas PCB.SMAFRA.HT (9884 pcs). Amphenol RF 908-22100 has 2037 pcs available. Huber+Suhner 82_MMCX-S50-0-2/111_KE has the lowest inventory among MMCX equivalents (921 pcs).
