Equivalent & Substitute Parts for 2541000

Part Overview

The 2541000 is a fuse block designed for DIN rail mounting, rated for 32 A at 600V with a single circuit configuration. This component is classified as obsolete, making identification of functionally equivalent alternatives necessary for system maintenance and component replacement in existing installations.

Substiute Parts

2541000

American Electrical Inc.In Stock: 6962541000 Datasheet

Current PartRFQ

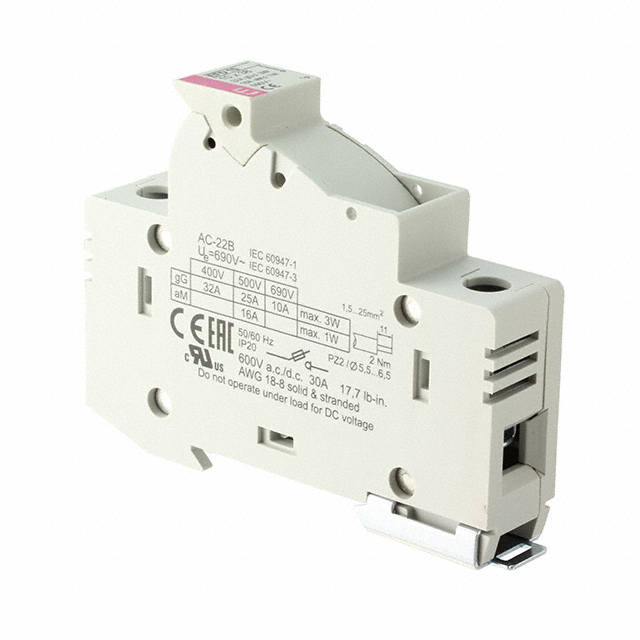

2540001

American ElectricalIn Stock: 17342540001 Datasheet

SimilarRFQ

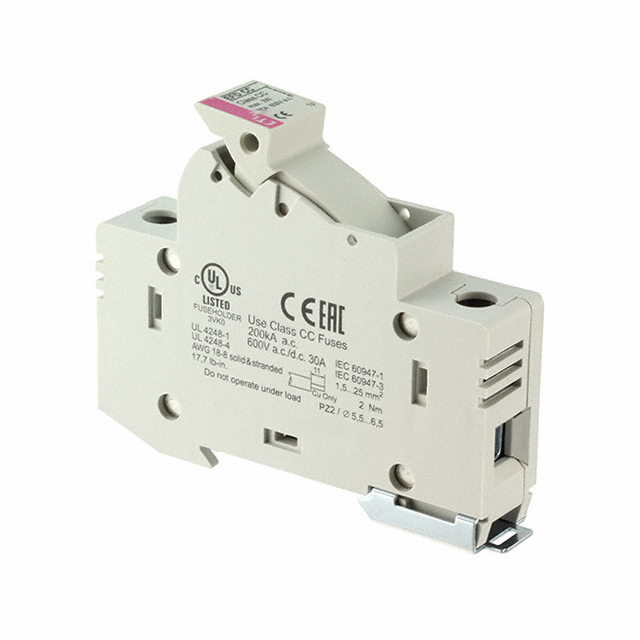

2540101

American Electrical Inc.In Stock: 11222540101 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 2541000 are identified based on the following critical parameters that determine functional equivalence:

• Mounting Type: DIN Rail
• Fuse Size: 0.394" Dia x 1.496" L (10mm x 38mm)
• Voltage Rating: 600V
• Number of Circuits: 1
• Fuse Type: Cartridge
• RoHS Compliance: ROHS3 Compliant

The substitute parts 2540001 and 2540101 share identical mechanical mounting characteristics, voltage ratings, fuse dimensions, and circuit configuration. Both are active products with current availability, addressing the obsolescence of the original 2541000. The primary distinction is the current rating differential: the 2541000 is rated for 32 A, while both substitute parts are rated for 30 A.

Parameter Comparison

Engineering Selection Recommendations

Both 2540001 and 2540101 are active products with current manufacturing status, providing direct alternatives to the obsolete 2541000. Both substitute parts maintain identical mechanical compatibility, voltage specifications, and regulatory compliance (ROHS3 and REACH Unaffected). The substitutes are functionally suitable for DIN rail installations requiring 600V cartridge fuse holders with single-circuit configuration and 10mm x 38mm fuse accommodation.

The current rating differential (32 A versus 30 A) represents the only electrical parameter variance. System designers must evaluate whether the 30 A rating of the substitute parts aligns with circuit protection requirements in the target application.

Frequently Asked Questions (FAQ)

Q: Can 2540001 and 2540101 be used interchangeably with 2541000?

A: Both substitute parts share identical mechanical mounting, voltage rating, fuse size, and circuit configuration. The primary consideration is the current rating: 2541000 is rated for 32 A, while 2540001 and 2540101 are rated for 30 A. Application requirements determine suitability.

Q: What is the difference between 2540001 and 2540101?

A: Both parts are functionally equivalent with identical electrical and mechanical specifications. 2540001 is packaged in a Box, while 2540101 is also packaged in a Box. Both are active products from American Electrical manufacturers.

Q: Are the substitute parts compatible with existing 5AG fuses?

A: Yes. All three parts (2541000, 2540001, and 2540101) are specified for use with 5AG, 13/32" x 1-1/2" (Midget) fuses, confirming mechanical and electrical compatibility.

Q: Do the substitute parts meet the same regulatory requirements as the original?

A: Yes. Both 2540001 and 2540101 are ROHS3 Compliant and REACH Unaffected, matching the compliance status of 2541000. Both share identical ECCN (EAR99) and HTSUS (8538.90.8180) classifications.

Q: Why is 2541000 obsolete?

A: Product status information indicates obsolescence. The active substitute parts 2540001 and 2540101 provide equivalent functionality for ongoing system support and component replacement.
