TE Connectivity 2-480318-0 Rectangular Connector Plug Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 2-480318-0 is a 2-position rectangular connector plug housing from the Commercial MATE-N-LOK series. This component is a natural-colored polyamide housing designed for crimp termination with detent lock fastening. The part is currently active in production status with 756 pieces available in inventory.

Substitute parts are identified when equivalent rectangular connectors share identical electrical and mechanical specifications, including connector type, contact configuration, pitch, mounting method, and operating parameters. Alternative part numbers within the same series provide equivalent functionality for applications requiring the 2-480318-0 housing.

Key Parameters

Parameter	Specification
Manufacturer Part Number	2-480318-0
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Series	Commercial MATE-N-LOK
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	2
Pitch	0.200" (5.08mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Detent Lock
Color	Natural
Operating Temperature Range	-55°C to 105°C
Insulation Material	Polyamide (PA66), Nylon 6/6
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the 2-480318-0 are identified based on strict parametric equivalence within the rectangular connector category. The following parameters determine substitution eligibility:

Critical Matching Parameters:

Connector Type: Plug
Contact Type: Female Socket
Number of Positions: 2
Pitch: 0.200" (5.08mm)
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Detent Lock
Operating Temperature Range: -55°C to 105°C
Series: Commercial MATE-N-LOK

All identified substitute parts maintain these electrical and mechanical specifications. Variations in inventory levels, base product numbers, and compliance certifications do not affect functional interchangeability within the specified parameter set.

Parameter Comparison

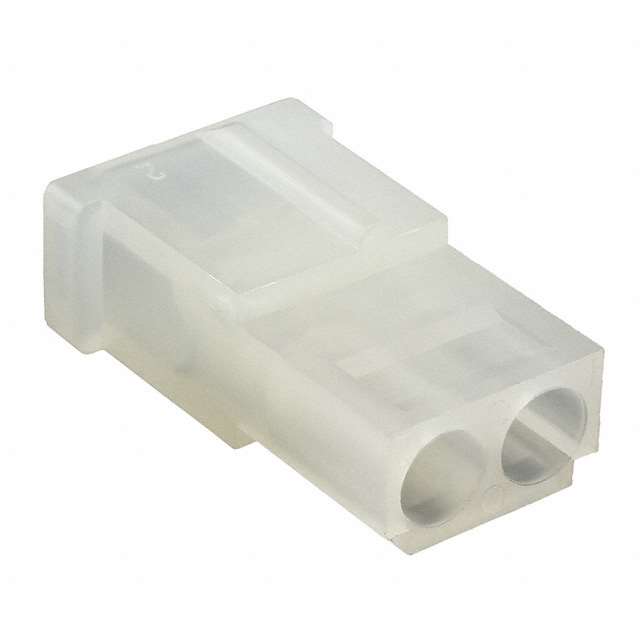

Parameter	2-480318-0	1-480318-0	1-480683-0
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Series	Commercial MATE-N-LOK	Commercial MATE-N-LOK	Commercial MATE-N-LOK
Connector Type	Plug	Plug	Plug
Contact Type	Female Socket	Female Socket	Female Socket
Number of Positions	2	2	2
Pitch	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)
Number of Rows	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Fastening Type	Detent Lock	Detent Lock	Detent Lock
Color	Natural	Natural	Natural
Operating Temperature Range	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon
RoHS Status	RoHS Compliant	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active
Inventory (Pcs)	756	2200	7042

Engineering Selection Recommendations

All three parts—2-480318-0, 1-480318-0, and 1-480683-0—are active products from TE Connectivity's Commercial MATE-N-LOK series and maintain full parametric equivalence for rectangular connector plug housing applications.

Compliance Status:

2-480318-0: RoHS Compliant, MSL 1
1-480318-0: RoHS Compliant, MSL 1
1-480683-0: ROHS3 Compliant, MSL 1

All parts satisfy RoHS requirements and carry unlimited moisture sensitivity classification. The 1-480683-0 variant carries ROHS3 certification, indicating compliance with the most current RoHS directive iteration.

Inventory Availability: Selection between substitute parts may be influenced by inventory levels. The 1-480683-0 offers the highest stock availability at 7042 pieces, followed by 1-480318-0 at 2200 pieces, and 2-480318-0 at 756 pieces.

Material Specification: The 2-480318-0 and 1-480318-0 specify Polyamide (PA66), Nylon 6/6, while 1-480683-0 specifies Polyamide (PA), Nylon. Both material compositions are functionally equivalent within the operating temperature range of -55°C to 105°C.

Frequently Asked Questions (FAQ)

Q: Are the substitute parts 1-480318-0 and 1-480683-0 directly interchangeable with 2-480318-0?

A: Yes. All three parts share identical electrical and mechanical specifications including connector type, contact configuration, pitch, mounting method, and operating temperature range. They are functionally equivalent within the Commercial MATE-N-LOK series.

Q: What is the difference between the insulation materials listed for these parts?

A: The 2-480318-0 and 1-480318-0 specify Polyamide (PA66), Nylon 6/6, while 1-480683-0 specifies Polyamide (PA), Nylon. Both material compositions maintain the same operating temperature range and performance characteristics for this connector housing application.

Q: Does the difference in RoHS certification levels affect part selection?

A: The 2-480318-0 and 1-480318-0 carry RoHS Compliant status, while 1-480683-0 carries ROHS3 Compliant status. Both certifications satisfy RoHS requirements. Selection based on compliance level depends on specific application or regulatory requirements.

Q: Are contacts included with these connector housings?

A: No. All three parts are housings only. Contacts are not included and must be sourced separately.

Q: What is the significance of the MSL rating for these parts?

A: All three parts carry MSL 1 (Unlimited) classification, indicating unlimited shelf life and no special moisture control requirements during storage or handling.

Q: Can I use these parts in applications requiring the 2-480318-0 specifically?

A: Yes. The substitute parts 1-480318-0 and 1-480683-0 maintain all critical parameters necessary for functional equivalence and can be used in applications designed for the 2-480318-0.
