TE Connectivity AMP Connectors 2-332070-5 Pin Receptacle Terminal Equivalent & Substitute Parts

Part Overview

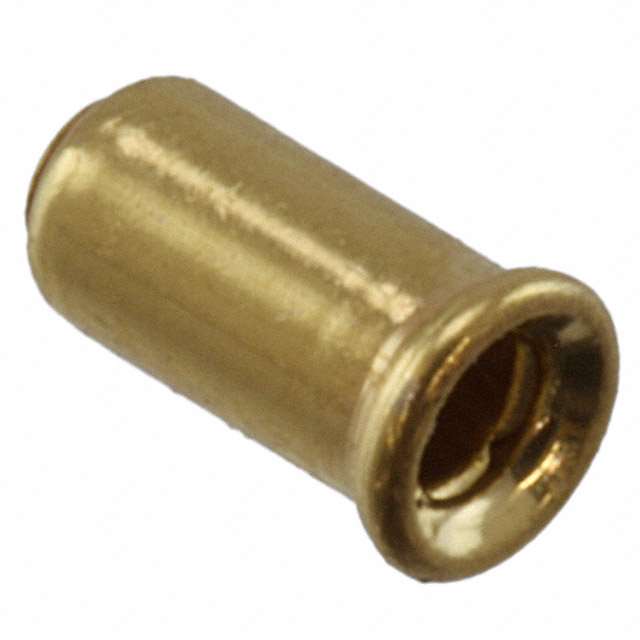

The TE Connectivity AMP Connectors 2-332070-5 is a pin receptacle connector terminal designed to accept pin diameters of 0.030" to 0.033" (0.76mm to 0.84mm) with solder termination. This component features a beryllium copper contact material with gold plating and operates across a temperature range of -65°C to 125°C. The part is classified as obsolete, which necessitates identification of equivalent substitute components for ongoing procurement and design continuity. Locating active production alternatives ensures design reliability and supply chain stability for applications requiring this terminal specification.

Substiute Parts

2-332070-5

TE Connectivity AMP ConnectorsIn Stock: 8682-332070-5 Datasheet

Current PartRFQ

2-5332070-5

TE Connectivity AMP ConnectorsIn Stock: 96632-5332070-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 2-332070-5 terminal is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 2-5332070-5 maintains identical specifications for pin acceptance diameter (0.030" ~ 0.033"), termination method (solder), contact material composition (beryllium copper), contact finish type and thickness (gold, 30.0µin), socket depth (0.130"), flange diameter (0.089"), mounting hole diameter (0.072"), overall length (0.143"), and open bottom feature configuration.

The key parameters governing substitution eligibility are:

• Pin diameter acceptance range: 0.030" ~ 0.033" (0.76mm ~ 0.84mm)
• Solder termination compatibility
• Beryllium copper contact material with gold finish at 30.0µin thickness
• Physical dimensions: socket depth, flange diameter, mounting hole diameter, and overall length
• No-tail configuration
• Open bottom feature

The substitute part 2-5332070-5 satisfies all these criteria and is classified as an active production component, providing direct functional and mechanical compatibility with the obsolete original part.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 2-5332070-5 is the direct equivalent for the obsolete 2-332070-5 terminal. Selection of the substitute is based on the following engineering criteria:

Product Status: The original part 2-332070-5 is classified as obsolete, making continued procurement impossible. The substitute 2-5332070-5 is an active production component from the same manufacturer, ensuring ongoing availability and supply chain continuity.

Electrical and Mechanical Compatibility: All critical parameters are identical between the original and substitute parts, including pin diameter acceptance, termination method, contact material, contact finish specifications, and physical dimensions. The substitute maintains full functional equivalence for solder termination applications.

Compliance and Regulatory Status: The substitute part 2-5332070-5 is RoHS compliant and has a defined REACH status (REACH Unaffected), whereas the original part is RoHS non-compliant with undefined REACH status. For applications subject to current regulatory requirements, the substitute provides compliance alignment.

Operating Temperature: The substitute part operates across -65°C to 126°C, which exceeds the original specification of -65°C to 125°C, providing enhanced thermal performance margin.

Packaging Consideration: The substitute is supplied in bulk packaging, whereas the original packaging specification was not defined. Bulk packaging is standard for terminal components and does not affect functional performance.

The substitute part 2-5332070-5 is the appropriate selection for all applications previously using the obsolete 2-332070-5 terminal.

Frequently Asked Questions (FAQ)

Q: Can the substitute part 2-5332070-5 be used directly in place of the obsolete 2-332070-5?

A: Yes. The substitute part maintains identical electrical and mechanical specifications across all critical parameters, including pin diameter acceptance (0.030" ~ 0.033"), solder termination, beryllium copper contact material with gold finish, socket depth, flange diameter, mounting hole diameter, and overall length. Direct substitution is supported without design modification.

Q: What is the difference between the original and substitute parts?

A: The primary differences are product status and regulatory compliance. The original 2-332070-5 is obsolete and RoHS non-compliant, while the substitute 2-5332070-5 is an active production component that is RoHS compliant with a defined REACH status. The substitute also provides a marginally higher maximum operating temperature (126°C versus 125°C). All functional and mechanical specifications are identical.

Q: Are there any compatibility concerns with solder termination when using the substitute?

A: No. Both the original and substitute parts are specified for solder termination with identical socket depth (0.130"), flange diameter (0.089"), and mounting hole diameter (0.072"). Solder joint formation and mechanical retention are equivalent between the two parts.

Q: Does the bulk packaging of the substitute part affect its performance?

A: No. Packaging type does not affect the electrical or mechanical performance of the terminal component. Bulk packaging is standard for terminal components and provides the same functional product as other packaging configurations.

Q: Is the substitute part suitable for applications requiring RoHS compliance?

A: Yes. The substitute part 2-5332070-5 is RoHS compliant, making it suitable for applications and markets with RoHS requirements. The original part 2-332070-5 is RoHS non-compliant and cannot be used in RoHS-regulated applications.

Q: What is the contact material and finish specification for the substitute part?

A: The substitute part uses beryllium copper contact material with gold plating at a thickness of 30.0µin (0.76µm), identical to the original part. This specification ensures consistent electrical conductivity and corrosion resistance for solder-terminated connections.

Q: Are the physical dimensions of the substitute identical to the original?

A: Yes. The substitute part 2-5332070-5 maintains identical physical dimensions: overall length 0.143" (3.63mm), socket depth 0.130" (3.30mm), flange diameter 0.089" (2.26mm), and mounting hole diameter 0.072" (1.83mm). The open bottom feature is also identical. Direct mechanical compatibility is assured.
