Part Overview

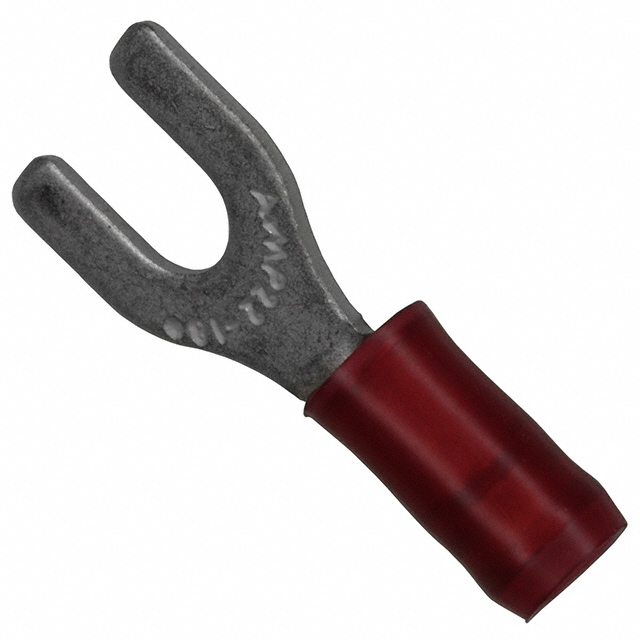

The TE Connectivity AMP Connectors 2-32050-1 is a red insulated spade terminal connector designed for crimp termination of 16-22 AWG wire. This component features an 8 stud configuration and is part of the PIDG series. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and system maintenance. Substitute parts must maintain electrical and mechanical compatibility across all critical parameters including wire gauge range, stud size, termination method, and physical dimensions.

Key Parameters

Parameter	Value
Wire Gauge	16-22 AWG
Stud/Tab Size	8 Stud
Termination Type	Crimp
Insulation Type	Insulated
Length - Overall	0.908" (23.06mm)
Width - Outer Edges	0.375" (9.53mm)
Tongue Inside Opening	0.171" (4.34mm)
Contact Material	Copper
Contact Finish	Tin
Color	Red
RoHS Compliance	RoHS Compliant

Substitute Part Grouping Explanation

Substitution of the 2-32050-1 is determined by strict equivalence across the following critical parameters:

Electrical Parameters: Wire gauge range (16-22 AWG), contact material (copper), contact finish (tin), and insulation type (insulated polyamide/nylon) must remain identical.

Mechanical Parameters: Stud size (8 stud), overall length (0.908"), outer width (0.375"), tongue inside opening (0.171"), and termination method (crimp) must be maintained.

Compliance Parameters: RoHS compliance status must be equivalent or superior. Moisture sensitivity level (MSL 1) and material composition must align.

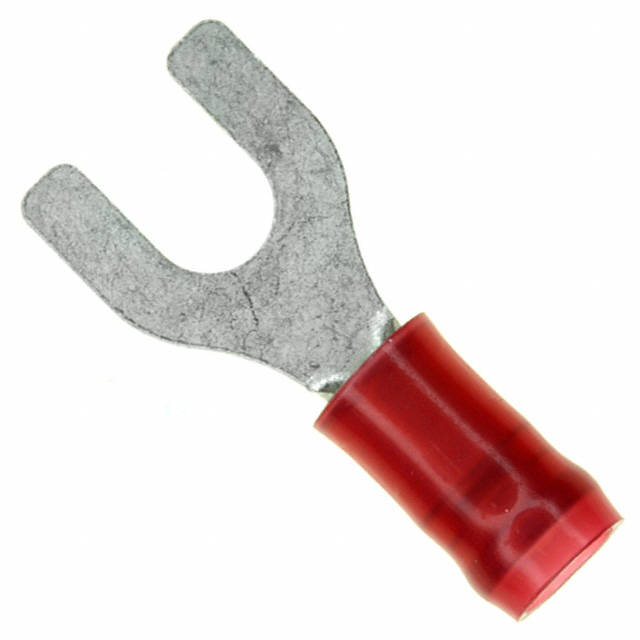

The substitute part 2-32053-1 satisfies all these criteria while offering the advantage of active product status and improved packaging availability.

Parameter Comparison

Parameter	2-32050-1 (Main Part)	2-32053-1 (Substitute)	Compatibility
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Series	PIDG	PIDG	Identical
Category	Terminals	Terminals	Identical
Terminal Type	Standard	Standard	Identical
Stud/Tab Size	8 Stud	8 Stud	Identical
Wire Gauge	16-22 AWG	16-22 AWG	Identical
Termination	Crimp	Crimp	Identical
Insulation	Insulated	Insulated	Identical
Features	Serrated Termination	Serrated Termination	Identical
Color	Red	Red	Identical
Contact Finish	Tin	Tin	Identical
Contact Material	Copper	Copper	Identical
Material - Insulation	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Identical
Length - Overall	0.908" (23.06mm)	0.908" (23.06mm)	Identical
Width - Outer Edges	0.375" (9.53mm)	0.375" (9.53mm)	Identical
Length - Ring Center to Termination	0.312" (7.92mm)	0.312" (7.92mm)	Identical
Length - Termination	0.404" (10.26mm)	0.404" (10.26mm)	Identical
Tongue Inside Opening	0.171" (4.34mm)	0.171" (4.34mm)	Identical
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Identical
RoHS Status	RoHS Compliant	RoHS Compliant	Identical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Identical
Product Status	Obsolete	Active	Substitute is active
Insulation Diameter	0.080" ~ 0.125" (2.03mm ~ 3.18mm)	0.105" ~ 0.140" (2.67mm ~ 3.56mm)	Overlapping range

Engineering Selection Recommendations

The 2-32053-1 serves as a direct functional equivalent to the obsolete 2-32050-1. Both components are manufactured by TE Connectivity AMP Connectors and maintain identical electrical and mechanical specifications across all critical parameters including wire gauge, stud configuration, termination method, and physical dimensions.

The primary distinction between these parts is product status: the 2-32050-1 is classified as obsolete, while the 2-32053-1 maintains active status. This status difference ensures continued availability and manufacturing support for the 2-32053-1.

Both parts carry RoHS compliance certification and MSL 1 rating, confirming equivalent environmental and reliability characteristics. The insulation diameter range of the 2-32053-1 (0.105" ~ 0.140") encompasses the upper portion of the 2-32050-1 range (0.080" ~ 0.125"), providing compatibility with the specified 16-22 AWG wire gauge applications.

For new designs and ongoing procurement, the 2-32053-1 is the appropriate selection due to its active product status and assured supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the 2-32053-1 be used as a direct replacement for the 2-32050-1?

A: Yes. Both components are electrically and mechanically equivalent across all critical parameters including wire gauge (16-22 AWG), stud size (8 stud), termination method (crimp), and physical dimensions. The 2-32053-1 is the active equivalent.

Q: What is the primary reason for substitution?

A: The 2-32050-1 is classified as obsolete. The 2-32053-1 provides an active alternative with identical specifications and assured manufacturing continuity.

Q: Are there differences in insulation diameter specifications?

A: The 2-32050-1 specifies insulation diameter of 0.080" ~ 0.125" (2.03mm ~ 3.18mm), while the 2-32053-1 specifies 0.105" ~ 0.140" (2.67mm ~ 3.56mm). Both ranges accommodate the 16-22 AWG wire gauge requirement, with the 2-32053-1 range shifted toward the upper tolerance band.

Q: Do both parts carry the same compliance certifications?

A: Yes. Both the 2-32050-1 and 2-32053-1 are RoHS compliant with MSL 1 (unlimited moisture sensitivity level) rating.

Q: What is the difference in packaging between these parts?

A: The 2-32050-1 packaging specification is not defined in the available data. The 2-32053-1 is supplied in Cut Tape (CT) packaging format.

Q: Are the physical dimensions identical?

A: Yes. Overall length (0.908"), outer width (0.375"), ring center to termination length (0.312"), termination length (0.404"), and tongue inside opening (0.171") are identical across both parts.

Q: Can these parts be used interchangeably in existing assemblies?

A: Yes. The 2-32053-1 maintains full compatibility with applications designed for the 2-32050-1 due to identical electrical and mechanical specifications.
