TE Connectivity AMP Connectors 229995-2 Equivalent & Substitute Parts

Part Overview

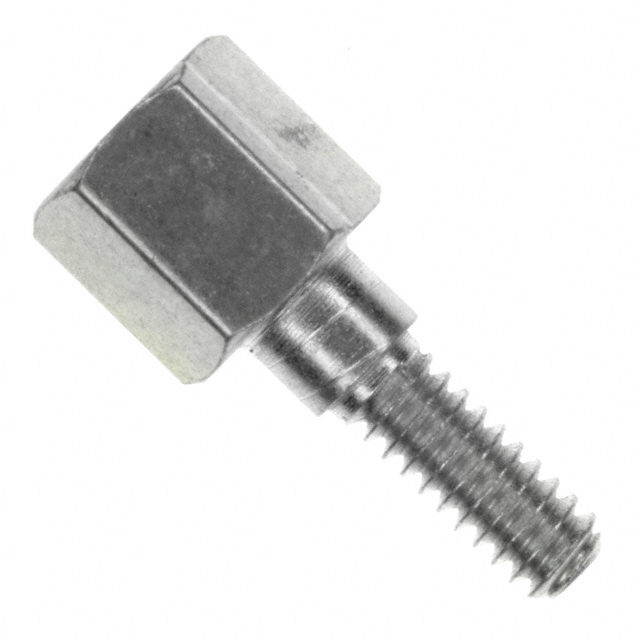

The TE Connectivity AMP Connectors 229995-2 is a jackscrew socket accessory designed for CHAMP D-Sub connectors. This component functions as a stand-off stud mounting element with a 4-40 socket and screw configuration. The part is classified as obsolete, necessitating identification of active equivalent components for ongoing procurement and system maintenance. Substitute parts must maintain identical mechanical and electrical specifications to ensure direct compatibility with existing CHAMP D-Sub connector assemblies.

Key Parameters

Parameter	Specification
Manufacturer	TE Connectivity AMP Connectors
Category	D-Sub, D-Shaped Connectors
Series	CHAMP
Accessory Type	Jackscrew Socket
Thread Size	4-40 Socket, 4-40 Screw
Length - Threaded Portion Below Head	0.293" (7.44mm)
Length - Below Head	0.401" (10.19mm)
For Use With/Related Products	CHAMP D-Sub Connectors

Substitute Part Grouping Explanation

Substitution of the 229995-2 is based on strict equivalence across all mechanical and dimensional parameters. The substitute part must satisfy the following criteria:

Identical thread size specification (4-40 Socket, 4-40 Screw)
Identical length dimensions for threaded portion below head (0.293" / 7.44mm)
Identical overall length below head (0.401" / 10.19mm)
Identical accessory type classification (Jackscrew Socket)
Compatibility with CHAMP D-Sub connector series
Identical stand-off stud mounting function

The 5229995-2 meets all substitution criteria as a direct equivalent component. The primary distinction between the main part and substitute is product status and compliance certification, not functional or dimensional characteristics.

Parameter Comparison

Parameter	229995-2 (Main Part)	5229995-2 (Substitute)	Match Status
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Category	D-Sub, D-Shaped Connectors	D-Sub, D-Shaped Connectors	Identical
Series	CHAMP	CHAMP	Identical
Accessory Type	Jackscrew Socket	Jackscrew Socket	Identical
Description	STAND-OFF, STUD, MTG	STAND-OFF, STUD, MTG	Identical
Detailed Description	Jackscrew Socket For CHAMP D-Sub Connectors	Jackscrew Socket For CHAMP D-Sub Connectors	Identical
Thread Size	4-40 Socket, 4-40 Screw	4-40 Socket, 4-40 Screw	Identical
Length - Threaded Portion Below Head	0.293" (7.44mm)	0.293" (7.44mm)	Identical
Length - Below Head	0.401" (10.19mm)	0.401" (10.19mm)	Identical
For Use With/Related Products	CHAMP D-Sub Connectors	CHAMP D-Sub Connectors	Identical
Product Status	Obsolete	Active	Different
RoHS Status	Not applicable	RoHS Compliant	Different
Moisture Sensitivity Level (MSL)	Not Applicable	1 (Unlimited)	Different
Packaging	Not specified	Bag	Different

Engineering Selection Recommendations

The 5229995-2 is the direct substitute for the obsolete 229995-2 component. Selection of the substitute part is based on the following engineering factors:

Product Status: The 229995-2 is classified as obsolete, making the 5229995-2 the active equivalent for ongoing procurement requirements.

Compliance Certification: The 5229995-2 carries RoHS Compliant certification, meeting current environmental and regulatory standards for electronic component manufacturing. The main part lists RoHS status as not applicable, reflecting its obsolete classification.

Moisture Sensitivity: The 5229995-2 is rated MSL 1 (Unlimited), indicating no moisture sensitivity constraints during storage and handling. This specification is standard for metallic connector accessories.

Mechanical Equivalence: All dimensional and functional parameters are identical between the two parts, ensuring direct mechanical and electrical compatibility within CHAMP D-Sub connector assemblies.

Packaging: The 5229995-2 is supplied in bag packaging, which is standard for individual connector accessories.

The 5229995-2 is the appropriate selection for all applications currently using or requiring the 229995-2 jackscrew socket.

Frequently Asked Questions (FAQ)

Q: Can the 5229995-2 be used as a direct replacement for the 229995-2?

A: Yes. The 5229995-2 is a direct substitute with identical mechanical dimensions, thread specifications, and functional characteristics. All critical parameters including thread size (4-40 Socket, 4-40 Screw), threaded length (0.293" / 7.44mm), and overall length below head (0.401" / 10.19mm) are identical.

Q: What is the primary difference between these two parts?

A: The main difference is product status. The 229995-2 is obsolete, while the 5229995-2 is active. Additionally, the 5229995-2 carries RoHS Compliant certification and MSL 1 rating, reflecting current manufacturing standards.

Q: Are there any compatibility concerns when substituting the 5229995-2 for the 229995-2?

A: No compatibility concerns exist. Both parts are designed for CHAMP D-Sub connectors and share identical specifications for the stand-off stud mounting function.

Q: What packaging format is the 5229995-2 supplied in?

A: The 5229995-2 is supplied in bag packaging, which is standard for individual connector accessory components.

Q: Does the 5229995-2 meet current environmental compliance requirements?

A: Yes. The 5229995-2 is RoHS Compliant, meeting current environmental and regulatory standards for electronic component manufacturing.

Q: Are the thread specifications identical between both parts?

A: Yes. Both the 229995-2 and 5229995-2 feature 4-40 socket and 4-40 screw thread specifications with identical dimensional characteristics.
