Phoenix Contact 2297183 SS Contactor Input 230VAC 50A - Equivalent & Substitute Parts

Part Overview

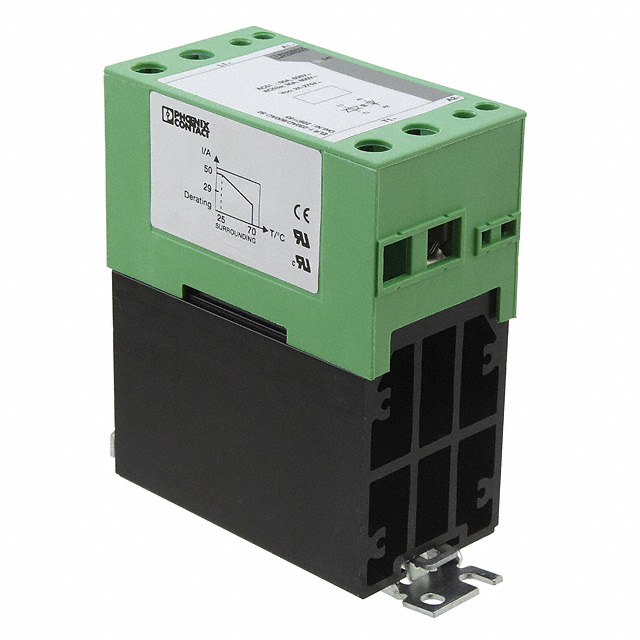

The Phoenix Contact 2297183 is a solid-state contactor designed for AC load switching applications with a 50A rated load current and 230VAC input control voltage. This component operates as a single-pole normally-open (SPST-NO) relay with integrated heat sink packaging, suitable for DIN rail and chassis mount installations.

The 2297183 carries an Obsolete product status, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new design implementations. Active substitute parts maintain the same electrical performance characteristics while offering current manufacturing support and availability.

Substiute Parts

2297183

Phoenix ContactIn Stock: 11752297183 Datasheet

Current PartRFQ

1032927

Phoenix ContactIn Stock: 11071032927 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 2297183 is determined by strict equivalence across the following critical parameters:

• Load current rating: 50 A (exact match required)
• Circuit configuration: SPST-NO (1 Form A) single-pole normally-open topology
• Output type: AC with zero-cross switching capability
• Load voltage range: 42 ~ 660V (minimum acceptable range)
• Termination style: Screw terminal connections
• Package type: SSR with integrated heat sink
• Mounting compatibility: DIN rail and chassis mount capability

The substitute part 1032927 meets all substitution criteria. The primary distinction is product status transition from Obsolete to Active, enabling continued procurement and technical support through current manufacturing channels.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1032927 serves as the direct functional equivalent for the obsolete 2297183 model. Both components are manufactured by Phoenix Contact within the ELR 1 series and maintain identical electrical and mechanical specifications for 50A AC load switching applications.

Selection of part 1032927 is supported by:

• Active product status enabling standard procurement channels and manufacturer technical support
• Maintained compliance with RoHS directives (RoHS Compliant designation)
• Identical circuit topology, load current rating, and switching characteristics
• Equivalent thermal management through integrated heat sink packaging
• Compatible mounting and termination interfaces for direct installation

The input voltage specification for 1032927 is narrowed to 230VAC compared to the broader 24 ~ 275VAC range of the main part. This represents a practical manufacturing specification refinement rather than a functional limitation, as the substitute part is specifically rated for 230VAC control voltage operation.

Frequently Asked Questions (FAQ)

Q: Can part 1032927 directly replace 2297183 in existing installations?

A: Yes. Both parts share identical load current ratings (50A), circuit configuration (SPST-NO), output type (AC zero-cross), load voltage range (42 ~ 660V), mounting options (DIN rail/chassis mount), and termination style (screw terminal). The physical package and electrical performance are equivalent.

Q: What is the significance of the input voltage difference (24 ~ 275VAC vs. 230VAC)?

A: The main part 2297183 accepts a broader input voltage range. Part 1032927 is specified for 230VAC operation. If your application requires input voltages outside the 230VAC specification, the broader-range 2297183 would be necessary. For standard 230VAC control circuits, 1032927 is fully suitable.

Q: Why is 2297183 listed as Obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. Part 1032927 represents the active equivalent, ensuring continued availability and manufacturer support for new procurements and system maintenance.

Q: Are there packaging differences between these parts?

A: The main part 2297183 is specified with "-" packaging notation, while 1032927 is supplied in Bulk packaging. Both use identical SSR with integrated heat sink case design. Bulk packaging indicates standard industrial quantity supply without special packaging requirements.

Q: Do both parts meet current compliance standards?

A: Yes. Part 2297183 carries ROHS3 Compliant status. Part 1032927 carries RoHS Compliant status. Both meet current regulatory requirements for electronic component manufacturing and use.

Q: What is the load voltage operating range for these contactors?

A: Both parts operate with load voltages from 42V to 660V, supporting applications across standard industrial AC voltage levels including 120V, 240V, 380V, and 480V systems.
