Phoenix Contact 2297167 Equivalent & Substitute Parts

Part Overview

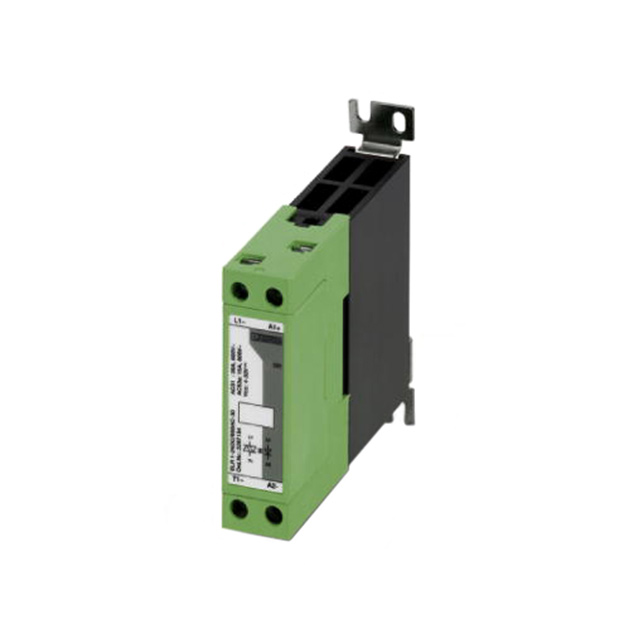

The Phoenix Contact 2297167 is a solid-state single-phase relay rated for 30A load current with input voltage range of 24–275VAC and load voltage range of 42–660V. This component features SPST-NO (1 Form A) circuit configuration with AC zero-cross output type, designed for DIN rail and chassis mount applications with screw terminal termination.

The 2297167 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain system functionality and ensure continued availability for replacement and new installations where this component is specified.

Substiute Parts

2297167

Phoenix ContactIn Stock: 11582297167 Datasheet

Current PartRFQ

1032922

Phoenix ContactIn Stock: 7541032922 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2297167 is determined by the following critical parameters:

• Load current rating of 30 A
• SPST-NO (1 Form A) circuit configuration
• AC zero-cross output type
• Load voltage range of 42–660V
• Screw terminal termination
• SSR with integrated heat sink package
• DIN rail and chassis mount capability
• ROHS3 compliance

The substitute part Phoenix Contact 1032922 maintains all critical electrical and mechanical parameters required for direct substitution. The primary difference is the input voltage specification: the 1032922 is rated for 230VAC input, whereas the 2297167 accepts a broader range of 24–275VAC. This narrower input specification does not prevent substitution in applications where the input voltage is confirmed to be 230VAC.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1032922 is the direct substitute for the obsolete 2297167. Both components are manufactured by Phoenix Contact within the ELR 1 series and share identical electrical ratings for load current (30 A), circuit configuration (SPST-NO), output type (AC zero-cross), load voltage range (42–660V), and mechanical specifications (DIN rail/chassis mount, screw terminals, integrated heat sink).

The 1032922 is classified as active product status, ensuring ongoing availability and support. Both parts maintain ROHS3 compliance and identical moisture sensitivity ratings.

The primary consideration for substitution is input voltage specification. The 1032922 is rated for 230VAC input, while the 2297167 accepts 24–275VAC. Substitution is appropriate for applications where the input voltage is confirmed to operate at 230VAC. For applications requiring operation across the full 24–275VAC range, alternative components within the ELR 1 series with broader input voltage specifications must be evaluated.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1032922 directly replace the 2297167 in all applications?

A: The 1032922 is a direct substitute for the 2297167 in applications where the input voltage is 230VAC. The 1032922 does not support the full input voltage range (24–275VAC) of the original part. Confirm input voltage requirements before substitution.

Q: What are the key parameters that determine substitution compatibility?

A: Load current rating (30 A), circuit type (SPST-NO), output type (AC zero-cross), load voltage range (42–660V), termination style (screw terminal), and package type (SSR with integrated heat sink) must remain identical for substitution.

Q: Why is the 2297167 listed as obsolete?

A: Product status is provided as obsolete in the component database. The active substitute 1032922 is available for new designs and replacements.

Q: Are there compliance differences between the two parts?

A: Both parts are ROHS3 compliant with identical moisture sensitivity levels (1 – Unlimited). The 2297167 is REACH Affected; the 1032922 is REACH Unaffected. Compliance requirements for your application must be evaluated independently.

Q: What is the difference in packaging between these parts?

A: The 2297167 is supplied in standard packaging; the 1032922 is supplied in bulk packaging. Both use identical SSR with integrated heat sink case style.
