Phoenix Contact 2297141 Equivalent & Substitute Parts

Part Overview

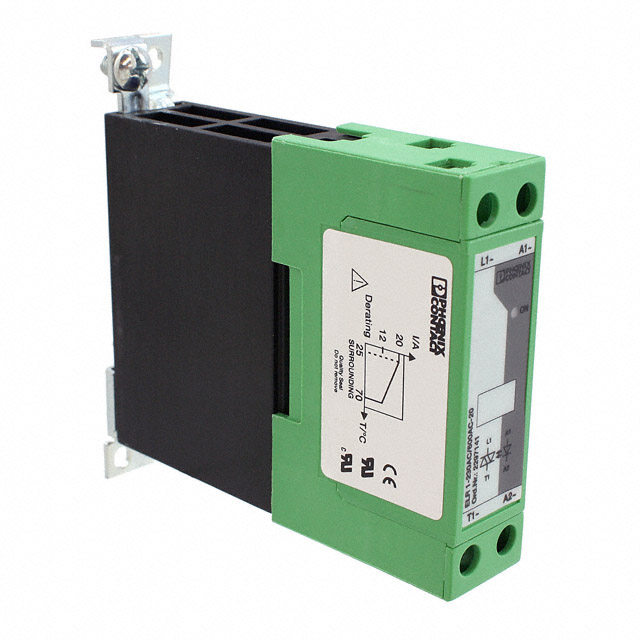

The Phoenix Contact 2297141 is a solid-state single-phase relay rated for 20A load current with input voltage range of 24–275VAC and load voltage range of 42–660V. This component features SPST-NO (1 Form A) circuit configuration with AC zero-cross output switching and screw terminal termination. The part is mounted on DIN rail or chassis and includes an integrated heat sink.

The 2297141 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain system functionality and ensure continued availability for applications requiring this relay specification.

Substiute Parts

2297141

Phoenix ContactIn Stock: 9232297141 Datasheet

Current PartRFQ

1032920

Phoenix ContactIn Stock: 8471032920 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 2297141 is based on the following critical parameters that must remain consistent:

• Load Current Rating: 20 A (exact match required)
• Circuit Configuration: SPST-NO (1 Form A) (exact match required)
• Output Type: AC, Zero Cross (exact match required)
• Mounting Type: Chassis Mount, DIN Rail (exact match required)
• Termination Style: Screw Terminal (exact match required)
• Package / Case: SSR with Integrated Heat Sink (exact match required)
• Series: ELR 1 (same product family)
• RoHS Compliance: RoHS Compliant (regulatory requirement)

The substitute part 1032920 maintains all critical electrical and mechanical parameters. The primary difference is the input voltage specification: the 2297141 accepts 24–275VAC input, while the 1032920 is specified for 230VAC input. Both parts share identical load current, circuit type, output switching characteristics, and physical form factor.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1032920 is the direct substitute for the obsolete 2297141. Both parts are manufactured by Phoenix Contact within the ELR 1 series and maintain identical electrical performance characteristics for load switching: 20A capacity, SPST-NO configuration, AC zero-cross output, and 42–660V load voltage range.

The 1032920 is currently in active production status with 751 units in stock, ensuring availability for replacement applications. Both parts carry RoHS compliance certification and identical MSL ratings, meeting regulatory and environmental requirements.

The input voltage specification differs: the 2297141 accepts a wide range (24–275VAC), while the 1032920 is rated for 230VAC input. Selection between these parts depends on the control voltage available in the application. If the control circuit operates at 230VAC, the 1032920 is the appropriate substitute. If the application requires input voltage flexibility outside the 230VAC specification, alternative parts from the ELR 1 series with different input voltage ratings should be evaluated.

Frequently Asked Questions (FAQ)

Q: Can the 1032920 directly replace the 2297141 in all applications?

A: The 1032920 is a direct substitute for applications where the control voltage is 230VAC. Both parts share identical load current rating (20A), circuit configuration (SPST-NO), output type (AC zero-cross), mounting type (DIN rail/chassis), and termination style (screw terminal). Verify that your application's input voltage matches the 230VAC specification of the 1032920 before substitution.

Q: What is the key difference between these two parts?

A: The primary difference is input voltage specification. The 2297141 accepts 24–275VAC input, providing flexibility across multiple control voltage standards. The 1032920 is specified for 230VAC input only. All other electrical and mechanical parameters are identical.

Q: Why is the 2297141 listed as obsolete?

A: The 2297141 has been discontinued by Phoenix Contact. The 1032920 represents the current active product offering within the ELR 1 series for this load current and circuit configuration.

Q: Are both parts RoHS compliant?

A: Yes. Both the 2297141 and 1032920 are RoHS compliant and carry identical MSL ratings of 1 (Unlimited), meeting environmental and regulatory requirements.

Q: What packaging is available for the 1032920?

A: The 1032920 is supplied in bulk packaging. Both parts feature SSR with integrated heat sink as the package/case type.
