TE Connectivity Deutsch Connectors 2289630-4 Equivalent & Substitute Parts

Part Overview

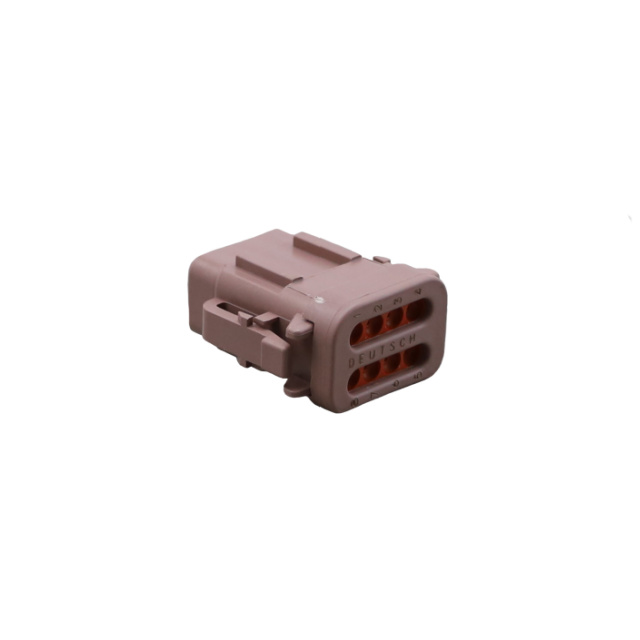

The TE Connectivity Deutsch Connectors 2289630-4 is an 8-position rectangular connector plug housing in brown, designed for free-hanging in-line applications. This connector features female socket contacts with crimp termination and latch lock fastening. The part is currently active in production and maintains full ROHS3 compliance with IP68 and IP6K9K environmental protection ratings.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across connector housings, enabling direct functional replacement in applications where the primary part is unavailable or when inventory constraints require alternative sourcing.

Substiute Parts

2289630-4

TE Connectivity Deutsch ConnectorsIn Stock: 11242289630-4 Datasheet

Current PartRFQ

DT06-08SA-E003

TE Connectivity Deutsch ConnectorsIn Stock: 4102DT06-08SA-E003 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connector housings is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Connector type (Plug)
• Contact type (Female Socket)
• Number of positions (8)
• Number of rows (2)
• Contact termination method (Crimp)
• Fastening mechanism (Latch Lock)

Environmental & Operational Parameters:

• Operating temperature range (-55°C ~ 125°C)
• Environmental protection ratings (IP68, IP6K9K)
• Insulation material classification (Polyamide/Nylon-based)

Regulatory & Compliance Parameters:

• RoHS3 compliance status
• ECCN classification (EAR99)
• HTSUS commodity code alignment

The substitute part DT06-08SA-E003 maintains equivalence across all critical electrical and mechanical parameters. Differences in color (brown versus gray) and insulation material specification (PA66 Nylon 6/6 versus PA Nylon Glass Filled) do not affect functional interchangeability in applications where the connector housing performs its primary role of contact protection and environmental sealing.

Parameter Comparison

Engineering Selection Recommendations

Both the 2289630-4 and DT06-08SA-E003 are active production parts manufactured by TE Connectivity Deutsch Connectors and maintain full ROHS3 compliance with EAR99 export classification. Selection between these parts is based on the following criteria:

Primary Part Selection (2289630-4): Use when brown connector housing color is specified in system design documentation or when PA66 Nylon 6/6 insulation material is required for specific environmental or mechanical performance requirements.

Substitute Part Selection (DT06-08SA-E003): Use when the primary part is unavailable or when inventory constraints require alternative sourcing. The gray housing and glass-filled polyamide insulation material maintain functional equivalence for 8-position, 2-row rectangular connector applications with crimp termination and latch lock fastening. This substitute part offers higher inventory availability (3999 pieces versus 1027 pieces).

Both parts support identical operating temperature ranges (-55°C to 125°C) and environmental protection ratings (IP68, IP6K9K), ensuring equivalent performance in sealed connector applications.

Frequently Asked Questions (FAQ)

Q: Can DT06-08SA-E003 be used as a direct replacement for 2289630-4 in existing assemblies?

A: Yes. Both parts are 8-position, 2-row rectangular connector plugs with female socket contacts, crimp termination, and latch lock fastening. Electrical and mechanical compatibility is maintained. The primary difference is housing color (brown versus gray) and insulation material specification. If color coding is not a functional requirement in your application, direct substitution is valid.

Q: What is the difference between the insulation materials used in these two parts?

A: The 2289630-4 uses PA66 Nylon 6/6 insulation material, while the DT06-08SA-E003 uses glass-filled polyamide (PA) nylon. Both materials are polyamide-based and provide equivalent environmental sealing and electrical insulation properties for this connector category. Glass-filled variants typically offer enhanced mechanical rigidity.

Q: Are both parts RoHS3 compliant?

A: Yes. Both 2289630-4 and DT06-08SA-E003 are ROHS3 compliant and carry EAR99 export classification with identical HTSUS commodity codes (8536.69.8000).

Q: What is the operating temperature range for these connectors?

A: Both parts operate across the identical temperature range of -55°C to 125°C, supporting applications in extreme thermal environments.

Q: Do these connector housings include contacts?

A: No. Both the 2289630-4 and DT06-08SA-E003 are connector housings only. Contacts are not included and must be sourced separately. Crimp termination contacts compatible with 8-position, 2-row configurations are required for assembly.

Q: What environmental protection ratings do these connectors provide?

A: Both parts provide IP68 and IP6K9K environmental protection ratings, ensuring sealed operation in high-pressure water jet and submersion environments.

Q: Why would I choose the substitute part if the primary part is available?

A: The substitute part DT06-08SA-E003 offers significantly higher inventory availability (3999 pieces versus 1027 pieces). In supply chain scenarios where lead time or bulk procurement is critical, the substitute part provides equivalent functionality with better stock position.
