Part Overview

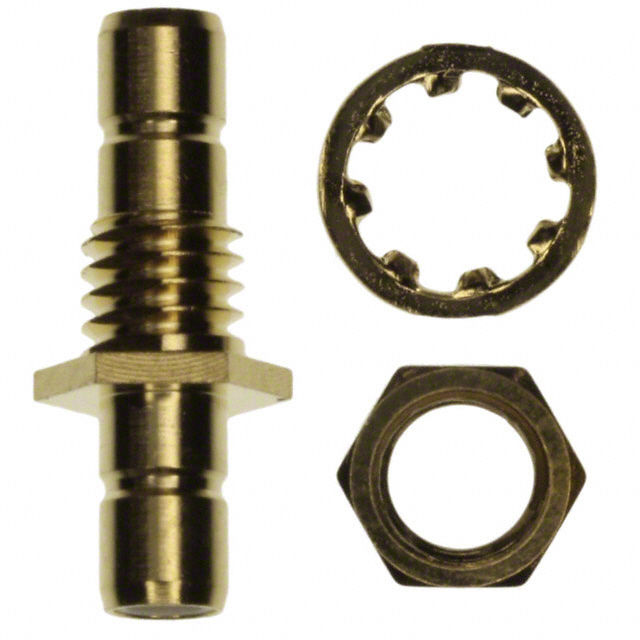

The TE Connectivity AMP Connectors 228553-1 is an adapter coaxial connector classified as an SMB Jack-to-Jack configuration with 50 Ohm impedance. This component functions as a straight-mounted panel bulkhead adapter, converting between two SMB Jack male pin connectors. The part maintains Active product status and is RoHS Compliant with REACH Affected designation.

Substitute parts become necessary when primary inventory is unavailable, when alternative packaging formats are required, or when equivalent performance specifications from different manufacturers are acceptable for system integration. Substitution is valid only when all critical electrical and mechanical parameters remain identical across the conversion.

Substiute Parts

228553-1

TE Connectivity AMP ConnectorsIn Stock: 1134228553-1 Datasheet

Current PartRFQ

142250

Amphenol RFIn Stock: 2921142250 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of coaxial adapter connectors is determined by strict equivalence across electrical and mechanical parameters. The following criteria establish valid substitution for the TE Connectivity 228553-1:

Critical Matching Parameters:

• Adapter Type: Jack to Jack configuration
• Adapter Series: SMB to SMB conversion
• Center Gender: Male to Male pin configuration
• Impedance: 50 Ohms
• Mounting Type: Panel Mount with Bulkhead feature
• Fastening Type: Snap-On mechanism
• Frequency Rating: 4 GHz maximum
• Dielectric Material: Polytetrafluoroethylene (PTFE)
• Center Contact Plating: Gold
• Body Material: Brass

The Amphenol RF 142250 satisfies all critical electrical and mechanical parameters required for direct substitution. Differences in body finish (Nickel versus Gold) and packaging format (Bulk versus Bag) do not affect functional compatibility or performance characteristics within the specified operating envelope.

Parameter Comparison

Engineering Selection Recommendations

Both the TE Connectivity 228553-1 and Amphenol RF 142250 maintain Active product status with current manufacturer support. Selection between these parts is based on availability, packaging requirements, and compliance certifications.

TE Connectivity 228553-1 is specified when RoHS Compliant certification is the primary requirement and Nickel body finish is acceptable for the application. Current inventory of 1,081 pieces supports immediate deployment in bulk packaging format.

Amphenol RF 142250 is specified when ROHS3 Compliant certification is required or when Gold body finish provides enhanced corrosion resistance for extended operating environments. Current inventory of 2,882 pieces provides higher availability in Bag packaging format. Operating temperature specification of -65°C to 165°C is provided for this part.

Both parts satisfy REACH Affected designation and EAR99 export classification. Electrical performance is identical across the 50 Ohm impedance, 4 GHz frequency rating, and PTFE dielectric specifications. Mechanical compatibility is confirmed through identical adapter type, mounting configuration, and fastening mechanism.
