TE Connectivity AMP Connectors 2-284513-0 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 2-284513-0 is a 20 Position Terminal Block Header with male pins, shrouded on four sides, designed for 0.150" (3.81mm) pitch right-angle through-hole mounting. This component belongs to the Buchanan series and is classified as obsolete. Due to its obsolete product status, identifying equivalent and substitute parts is necessary to maintain design continuity and ensure component availability for ongoing production and maintenance applications.

Substiute Parts

2-284513-0

TE Connectivity AMP ConnectorsIn Stock: 9022-284513-0 Datasheet

Current PartRFQ

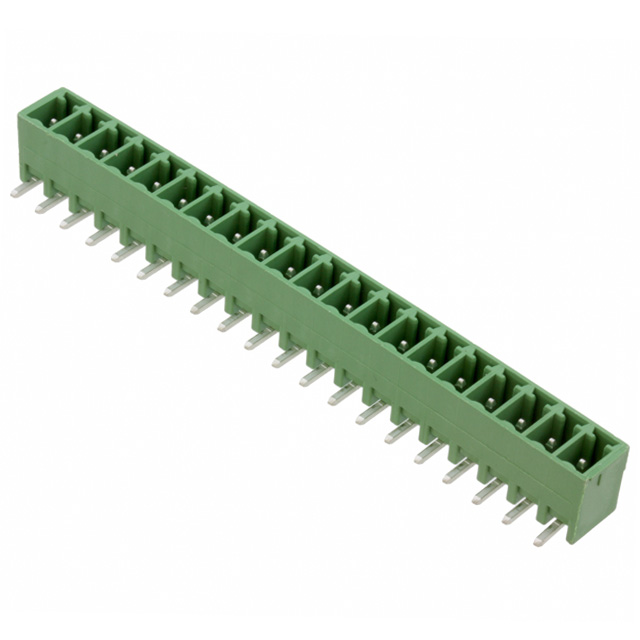

1841271

Phoenix ContactIn Stock: 8131841271 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 2-284513-0 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 20
• Pitch: 0.150" (3.81mm)
• Header Orientation: 90°, Right Angle
• Type: Header, Male Pins, Shrouded (4 Side)
• Termination Style: Solder
• Mounting Type: Through Hole
• Contact Mating Finish: Tin
• Contact Tail Length: 0.134" (3.40mm)
• Material Flammability Rating: UL94 V-0

Electrical Performance Parameters:

• Voltage - UL: 300 V
• Current Rating: Must meet or exceed 11 A (UL specification)

Physical Compatibility Parameters:

• Insulation Height: Within acceptable tolerance of 0.287" (7.30mm)
• Color: Green

The Phoenix Contact 1841271 satisfies all mandatory matching parameters and maintains electrical performance specifications required for direct substitution.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1841271 serves as a direct substitute for the obsolete TE Connectivity 2-284513-0 based on the following engineering criteria:

Mechanical Compatibility: Both components share identical pitch (0.150" / 3.81mm), position count (20), header orientation (90° right angle), and contact tail length (0.134" / 3.40mm). Insulation height variance (0.287" versus 0.285") is within acceptable mechanical tolerance for through-hole PCB mounting applications.

Electrical Performance: The Phoenix Contact 1841271 operates at 300 V UL rating, matching the original specification. The current rating of 8 A (UL) is lower than the original 11 A specification; applications requiring the full 11 A capacity must evaluate this reduction against actual circuit requirements.

Compliance and Availability: The Phoenix Contact 1841271 holds active product status with RoHS compliance certification, ensuring long-term availability and regulatory alignment. The original TE Connectivity component is obsolete, making the Phoenix Contact substitute the appropriate choice for new designs and ongoing production.

Housing Material Difference: The original component uses Polyamide (PA66) housing, while the substitute uses Polybutylene Terephthalate (PBT). Both materials maintain UL94 V-0 flammability rating and are suitable for the specified operating temperature range.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1841271 be used as a direct replacement for the TE Connectivity 2-284513-0 in existing designs?

A: Yes, the Phoenix Contact 1841271 is mechanically and electrically compatible for direct substitution. The component maintains identical pitch, position count, orientation, and contact configuration. However, the current rating difference (8 A versus 11 A) must be evaluated against circuit requirements.

Q: What is the significance of the current rating difference between the two components?

A: The TE Connectivity 2-284513-0 is rated for 11 A (UL), while the Phoenix Contact 1841271 is rated for 8 A (UL). Applications operating at currents between 8 A and 11 A must assess whether the lower rating of the substitute is acceptable for their specific use case.

Q: Are there differences in housing material between these components?

A: Yes. The original TE Connectivity component uses Polyamide (PA66), while the Phoenix Contact substitute uses Polybutylene Terephthalate (PBT). Both materials meet UL94 V-0 flammability requirements and operate within the specified temperature range (-40°C to 110°C).

Q: What is the insulation height tolerance between these components?

A: The TE Connectivity 2-284513-0 has an insulation height of 0.287" (7.30mm), while the Phoenix Contact 1841271 measures 0.285" (7.25mm). This 0.002" (0.05mm) difference is within acceptable mechanical tolerance for through-hole PCB mounting.

Q: Does the Phoenix Contact 1841271 meet current regulatory requirements?

A: Yes, the Phoenix Contact 1841271 is RoHS compliant and holds active product status, ensuring compliance with current regulatory standards and long-term component availability.

Q: Are the electrical specifications identical between these components?

A: Both components operate at 300 V (UL) and maintain identical voltage specifications. The current rating differs as noted above. Both components feature tin contact mating finish and UL94 V-0 flammability rating.

Q: What is the pitch specification for these terminal block headers?

A: Both the TE Connectivity 2-284513-0 and Phoenix Contact 1841271 feature a 0.150" (3.81mm) pitch, which determines the spacing between contact positions and ensures mechanical compatibility.

Q: Can these components be used in applications requiring the full 11 A current capacity?

A: The Phoenix Contact 1841271 is rated for 8 A maximum. Applications requiring 11 A capacity must either source the original TE Connectivity component from remaining inventory or identify alternative components with higher current ratings.
