TE Connectivity 2274475-3 USB 3.0 Vertical Receptacle Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 2274475-3 is a USB 3.0 vertical receptacle connector with lock feature, classified as a connector position component within the USB, DVI, HDMI Connectors category. This part is currently obsolete, with 629 pieces available in new original stock. Due to its obsolete status, identification of equivalent and substitute parts is necessary for ongoing design support, maintenance, and production continuity. Substitute parts listed below provide functional alternatives based on shared electrical and mechanical parameters within the USB connector family.

Substiute Parts

2274475-3

TE Connectivity AMP ConnectorsIn Stock: 7092274475-3 Datasheet

Current PartRFQ

1734366-1

TE Connectivity AMP ConnectorsIn Stock: 41691734366-1 Datasheet

SimilarRFQ

1734366-2

TE Connectivity AMP ConnectorsIn Stock: 585311734366-2 Datasheet

SimilarRFQ

1734366-3

TE Connectivity AMP ConnectorsIn Stock: 24641734366-3 Datasheet

SimilarRFQ

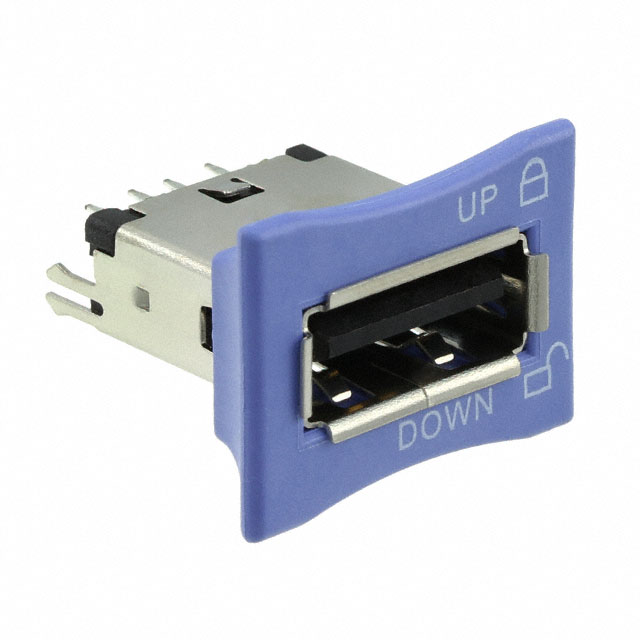

1775690-2

TE Connectivity AMP ConnectorsIn Stock: 32431775690-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 2274475-3 are identified based on the following shared parameters: connector category (USB, DVI, HDMI Connectors), manufacturer (TE Connectivity AMP Connectors), connector type classification (USB receptacle), mounting configuration (vertical orientation), termination method (solder), and compliance certifications (ROHS3 Compliant, MSL 1, ECCN EAR99).

The substitute parts listed—1734366-1, 1734366-2, 1734366-3, and 1775690-2—are all active-status USB-A receptacle connectors with vertical through-hole mounting. These parts share the core functional characteristics of the obsolete 2274475-3 within the USB connector family. Substitution is determined by alignment in connector type, mounting method, termination approach, and regulatory compliance status.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed—1734366-1, 1734366-2, 1734366-3, and 1775690-2—carry active product status, ensuring ongoing manufacturer support and availability. All substitute parts maintain ROHS3 compliance or equivalent RoHS compliance, MSL 1 rating, and EAR99 ECCN classification, matching the regulatory framework of the obsolete 2274475-3.

The 1734366 series (variants 1, 2, and 3) are functionally equivalent USB-A receptacle connectors with board lock features, vertical through-hole mounting, and solder termination. These parts differ only in insulation color (black, white, and blue respectively) and maintain identical electrical and mechanical specifications. The 1775690-2 provides an alternative with sliding collar feature and unshielded configuration.

Selection between substitute parts should be based on specific design requirements regarding shielding, locking mechanism type, and insulation color specifications. All listed substitutes are suitable for applications requiring vertical USB receptacle connectors with through-hole solder termination.

Frequently Asked Questions (FAQ)

Q: Why is the 2274475-3 listed as obsolete?

A: The 2274475-3 has reached end-of-life status with the manufacturer. Substitute parts provide equivalent functionality for new designs and ongoing production requirements.

Q: What is the primary difference between the 1734366 series and the 1775690-2?

A: The 1734366 series features board lock and shielded configuration, while the 1775690-2 features a sliding collar and unshielded configuration. Both are USB-A receptacle connectors with vertical through-hole mounting and solder termination.

Q: Are the 1734366-1, 1734366-2, and 1734366-3 electrically identical?

A: Yes. These three parts are electrically and mechanically identical. The suffix number designates insulation color only: 1734366-1 (black), 1734366-2 (white), and 1734366-3 (blue).

Q: Do all substitute parts meet the same compliance requirements as the 2274475-3?

A: All substitute parts maintain ROHS3 compliance (or equivalent RoHS compliance), MSL 1 rating, and EAR99 ECCN classification. Compliance status is consistent across all listed alternatives.

Q: What is the difference between shielded and unshielded configurations?

A: The 1734366 series provides shielded connectors for applications requiring electromagnetic interference protection. The 1775690-2 provides unshielded configuration for applications where shielding is not required.

Q: Can the 1775690-2 be used as a direct replacement for the 1734366 series?

A: The 1775690-2 is functionally compatible as a USB-A receptacle connector with vertical through-hole mounting. Selection depends on specific design requirements for shielding and locking mechanism type.

Q: What stock availability should be considered for production planning?

A: The 1734366-2 offers the highest current stock at 58,505 pieces. The 1734366-1, 1775690-2, and 1734366-3 maintain stock levels of 4,112, 3,150, and 2,400 pieces respectively, supporting ongoing production requirements.
