TE Connectivity 227433-1 BNC Connector Jack Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 227433-1 is a BNC Connector Jack, Female Socket rated at 50 Ohms for panel mount, through-hole, right-angle solder applications. This coaxial RF connector operates at frequencies up to 4 GHz with a maximum voltage rating of 500 V and supports 500 mating cycles. The part is classified as obsolete, necessitating identification of active equivalent and substitute components that maintain electrical and mechanical compatibility for new designs and production continuity.

Key Parameters

Parameter	Specification
Connector Style	BNC
Connector Type	Jack, Female Socket
Impedance	50 Ohms
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Contact Termination	Solder
Shield Termination	Solder
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Voltage Rating	500 V
Mating Cycles	500
Operating Temperature	-55°C ~ 85°C
Number of Ports	1

Substitute Part Grouping Explanation

Substitution of the 227433-1 is determined by strict equivalence across the following critical parameters: connector style (BNC), connector type (Jack, Female Socket), impedance (50 Ohms), mounting configuration (Panel Mount, Through Hole, Right Angle with Bulkhead - Front Side Nut), contact and shield termination method (Solder), fastening type (Bayonet Lock), frequency capability (4 GHz maximum), voltage rating (500 V), mating cycle rating (500), and operating temperature range (-55°C ~ 85°C).

Substitute parts are grouped into two categories:

Direct Manufacturer Equivalents (TE Connectivity AMP Connectors): Parts 5227433-1, 227676-2, 5227661-1, 5227676-1, and 5227677-1 maintain identical electrical and mechanical specifications to the main part. These differ primarily in center contact plating material (Tin or Gold), RoHS compliance status, and packaging format. All operate at 4 GHz and support the full operating temperature range.

Cross-Manufacturer Equivalents (Amphenol RF and Molex): Parts 031-5640, 031-6121, and 0731385013 provide functional equivalence with variations in dielectric material, center contact material composition, and frequency rating. Part 031-5640 operates at 1 GHz maximum frequency. Part 031-6121 features an extended operating temperature range (-65°C ~ 165°C) and PTFE dielectric. Part 0731385013 includes integrated board guide and isolation features.

Parameter Comparison

Part Number	Manufacturer	Impedance (Ohms)	Frequency - Max (GHz)	Operating Temperature (°C)	Center Contact Plating	Dielectric Material	Product Status	RoHS Status	Packaging
227433-1	TE Connectivity AMP	50	4	-55 ~ 85	Tin-Lead	Polymethylpentene (PMP)	Obsolete	Non-compliant	-
5227433-1	TE Connectivity AMP	50	4	-55 ~ 85	Tin	Polymethylpentene (PMP)	Active	Compliant	Bulk
227676-2	TE Connectivity AMP	50	4	-55 ~ 85	Gold	Polymethylpentene (PMP)	Active	Non-compliant	-
5227661-1	TE Connectivity AMP	50	4	-55 ~ 85	Tin	Polymethylpentene (PMP)	Active	ROHS3 Compliant	Tube
5227676-1	TE Connectivity AMP	50	4	-55 ~ 85	Gold	Polymethylpentene (PMP)	Active	Compliant	Bulk
5227677-1	TE Connectivity AMP	50	4	-55 ~ 85	Gold	Polymethylpentene (PMP)	Active	ROHS3 Compliant	Bulk

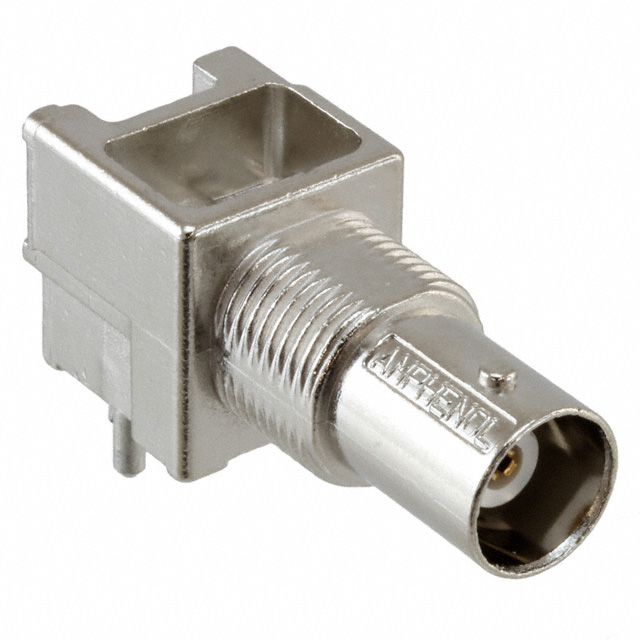

031-5640	Amphenol RF	50	1	-55 ~ 85	Gold	Polypropylene (PP)	Active	ROHS3 Compliant	Tray
031-6121	Amphenol RF	50	4	-65 ~ 165	Gold	Polytetrafluoroethylene (PTFE)	Active	ROHS3 Compliant	Bulk
0731385013	Molex	50	-	-	Gold	Polypropylene (PP)	Active	ROHS3 Compliant	Bulk

Engineering Selection Recommendations

For RoHS Compliance Requirements: Select 5227433-1, 5227661-1, 5227676-1, 5227677-1, 031-5640, 031-6121, or 0731385013. These parts carry RoHS Compliant or ROHS3 Compliant status. The obsolete 227433-1 and 227676-2 are RoHS non-compliant and unsuitable for new designs subject to RoHS directives.

For REACH Compliance Requirements: Select 5227661-1, 5227677-1, 031-5640, 031-6121, or 0731385013. These parts are REACH Affected or REACH Unaffected. Parts 5227433-1, 5227676-1, and 227676-2 carry Vendor Undefined or REACH Unaffected status.

For Direct TE Connectivity AMP Connectors Replacement: Select 5227433-1 for active production with RoHS compliance and Tin plating, or 5227677-1 for ROHS3 compliance with Gold plating and maximum inventory availability. Both maintain identical electrical specifications to the obsolete 227433-1.

For Extended Operating Temperature Range: Select 031-6121, which operates from -65°C to 165°C compared to the standard -55°C to 85°C range of the main part.

For Frequency-Limited Applications: Part 031-5640 operates at 1 GHz maximum frequency and is suitable for applications not requiring 4 GHz capability.

For Packaging Considerations: Select 5227661-1 for Tube packaging, 5227433-1, 5227676-1, or 5227677-1 for Bulk packaging, or 031-5640 for Tray packaging based on procurement and assembly requirements.

Frequently Asked Questions (FAQ)

Q: Can 5227433-1 directly replace the obsolete 227433-1?

A: Yes. The 5227433-1 maintains identical electrical and mechanical specifications: 50 Ohm impedance, 4 GHz maximum frequency, 500 V voltage rating, -55°C to 85°C operating temperature, BNC Jack Female Socket configuration, panel mount through-hole right-angle solder termination, and 500 mating cycles. The primary difference is RoHS compliance status and center contact plating material (Tin versus Tin-Lead).

Q: What is the difference between Tin and Gold center contact plating?

A: Both Tin and Gold plating options are provided in the substitute parts. Tin plating (5227433-1, 5227661-1) and Gold plating (227676-2, 5227676-1, 5227677-1, 031-5640, 031-6121, 0731385013) are material variations that do not affect the core electrical specifications of 50 Ohm impedance, 4 GHz frequency capability, or 500 V voltage rating. Selection depends on application-specific corrosion resistance and contact reliability requirements.

Q: Are all substitute parts rated for 4 GHz operation?

A: No. Part 031-5640 is rated for 1 GHz maximum frequency. All other TE Connectivity AMP Connectors substitutes (5227433-1, 227676-2, 5227661-1, 5227676-1, 5227677-1) and Amphenol RF 031-6121 are rated for 4 GHz. Verify frequency requirements before selection.

Q: What is the difference between PMP and PTFE dielectric materials?

A: The main part and most TE Connectivity AMP Connectors substitutes use Polymethylpentene (PMP) dielectric. Amphenol RF 031-6121 uses Polytetrafluoroethylene (PTFE) dielectric and supports an extended operating temperature range of -65°C to 165°C. Amphenol RF 031-5640 and Molex 0731385013 use Polypropylene (PP) dielectric. All three materials maintain 50 Ohm impedance and 500 V voltage rating.

Q: Which substitute part has the highest inventory availability?

A: Part 5227661-1 has 210,158 pieces in stock, significantly exceeding other substitutes. Part 5227677-1 has 2,402 pieces, and 031-5640 has 3,461 pieces. The obsolete 227433-1 has 1,035 pieces remaining.

Q: Are all substitute parts suitable for new product designs?

A: All substitute parts carry Active product status except the main part 227433-1 (Obsolete) and 227676-2 (Active but non-compliant). For new designs, select from 5227433-1, 5227661-1, 5227676-1, 5227677-1, 031-5640, 031-6121, or 0731385013.

Q: What packaging options are available?

A: Bulk packaging is available for 5227433-1, 5227676-1, 5227677-1, 031-6121, and 0731385013. Tube packaging is available for 5227661-1. Tray packaging is available for 031-5640. The main part 227433-1 and 227676-2 do not specify packaging format.

Q: Does the Molex 0731385013 include additional components?

A: Yes. The 0731385013 includes 3 pieces: 1 Connector, 1 Lockwasher, and 1 Nut. Most other parts specify similar inclusions. Verify component kit contents against assembly requirements.

Q: What is the difference between REACH Affected and REACH Unaffected status?

A: REACH Affected status indicates the part contains substances of concern regulated under REACH. REACH Unaffected indicates no such substances. Parts 5227661-1, 5227677-1, 031-5640, and 031-6121 carry REACH Affected status. Parts 5227433-1 and 5227676-1 carry REACH Unaffected status. Compliance requirements depend on end-use application and regional regulations.
