TE Connectivity 226993-1 BNC Coaxial Connector - Equivalent & Substitute Parts

Part Overview

The TE Connectivity 226993-1 is a BNC connector jack (female socket) rated for 50 ohms impedance, designed for panel mount through-hole solder termination applications. This coaxial connector operates at frequencies up to 4 GHz and is suitable for RF signal transmission in electronic equipment requiring bayonet-lock coupling. The part is currently active in production with 1018 units in stock. Equivalent and substitute parts are identified to provide procurement flexibility, accommodate supply chain variations, and support applications with differing compliance or packaging requirements.

Substiute Parts

226993-1

TE Connectivity AMP ConnectorsIn Stock: 1068226993-1 Datasheet

Current PartRFQ

5226993-1

TE Connectivity AMP ConnectorsIn Stock: 10685226993-1 Datasheet

DirectRFQ

031-5539

Amphenol RFIn Stock: 1042031-5539 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 226993-1 is determined by strict equivalence across the following critical parameters: connector style (BNC), connector type (jack/female socket), impedance (50 ohms), mounting configuration (panel mount through-hole), contact and shield termination method (solder), fastening mechanism (bayonet lock), operating temperature range (-55°C ~ 85°C), voltage rating (500 V), and mating cycle rating (500 cycles).

Parts are classified into two substitution categories:

Direct Equivalent: Parts that match all critical electrical and mechanical parameters without deviation. These parts are functionally interchangeable in the same application context.

Similar Equivalent: Parts that satisfy all critical electrical and mechanical parameters but may differ in secondary characteristics such as frequency maximum rating, dielectric material, center contact plating, body material specification, or housing color. These parts are electrically and mechanically compatible but require engineering review for application-specific frequency or environmental constraints.

Parameter Comparison

Engineering Selection Recommendations

TE Connectivity 5226993-1 (Direct Equivalent): This part is the direct equivalent to the 226993-1, matching all critical electrical and mechanical parameters including impedance, frequency rating (4 GHz), operating temperature, voltage rating, and mating cycle specification. The 5226993-1 is supplied in tube packaging and carries ROHS3 compliance and REACH unaffected status, providing regulatory advantages over the main part. Selection of the 5226993-1 is appropriate for applications requiring RoHS3 compliance or when tube packaging is preferred for automated assembly processes.

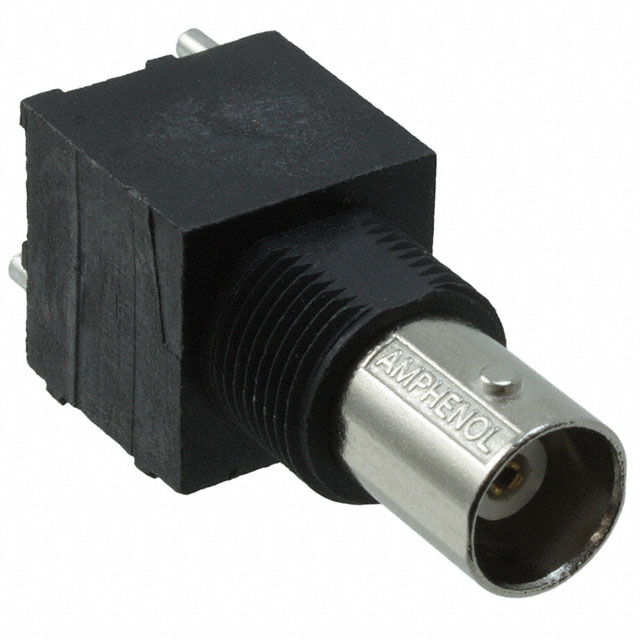

Amphenol RF 031-5539 (Similar Equivalent): This part satisfies all critical electrical and mechanical parameters for BNC 50-ohm panel mount through-hole solder termination. The 031-5539 differs from the main part in maximum frequency rating (1 GHz versus 4 GHz), dielectric material (polypropylene versus polymethylpentene), center contact plating (gold versus tin), and includes a board guide feature. The 031-5539 is ROHS3 compliant and REACH affected. Selection of the 031-5539 is appropriate for applications operating at frequencies up to 1 GHz where the lower frequency specification is acceptable and where the board guide feature provides mechanical benefit. Applications requiring operation above 1 GHz must use the 226993-1 or 5226993-1.
