TE Connectivity AMP Connectors 223995-3 Equivalent & Substitute Parts

Part Overview

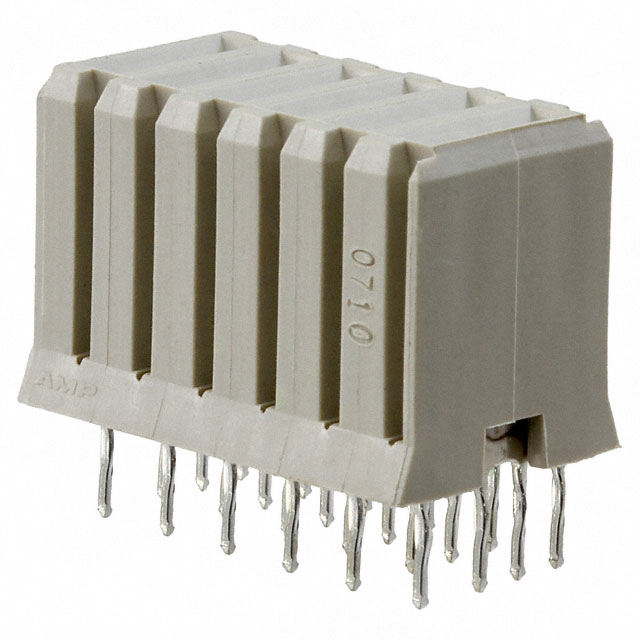

The TE Connectivity AMP Connectors 223995-3 is a 6-position receptacle connector with female blade sockets designed for backplane power applications. This connector features through-hole mounting with press-fit termination and operates across a temperature range of -55°C to 125°C at 250V. The part is classified as obsolete, necessitating identification of active equivalent components for new designs and ongoing production requirements. The substitute part maintains identical electrical and mechanical specifications while offering improved compliance status and active product availability.

Substiute Parts

223995-3

TE Connectivity AMP ConnectorsIn Stock: 3304223995-3 Datasheet

Current PartRFQ

5223995-3

TE Connectivity AMP ConnectorsIn Stock: 15545223995-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 223995-3 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 5223995-3 qualifies as a direct equivalent based on the following matching criteria:

Electrical Parameters:

• Voltage Rating: 250V (identical)
• Contact Finish: Gold or Gold-Palladium (identical)
• Material Flammability Rating: UL94 V-0 (identical)
• Operating Temperature Range: -55°C to 125°C (identical)

Mechanical Parameters:

• Connector Type: Receptacle, Female Blade Sockets (identical)
• Number of Positions: 6 (identical)
• Connector Style: Blade Power (identical)
• Mounting Type: Through Hole (identical)
• Termination Method: Press-Fit (identical)
• Contact Layout: 6 Power (identical)
• Number of Rows: 1 (identical)
• Number of Positions Loaded: All (identical)

Functional Classification:

• Connector Usage: Backplane (identical)
• Series: UPM (Universal Power Modules) (identical)

The substitute part maintains complete functional and electrical interchangeability with the original component.

Parameter Comparison

Engineering Selection Recommendations

The 5223995-3 serves as the direct active equivalent for the obsolete 223995-3 connector. Both components are manufactured by TE Connectivity AMP Connectors within the UPM series and maintain identical electrical and mechanical specifications across all critical parameters including voltage rating, operating temperature range, contact configuration, and termination method.

The primary distinction between these components is product status and regulatory compliance. The 223995-3 is classified as obsolete and carries RoHS non-compliant status. The 5223995-3 is an active product with RoHS compliant certification, making it the appropriate selection for new designs and applications requiring current regulatory compliance. Both components share identical connector functionality, mounting characteristics, and performance specifications.

For applications currently utilizing the 223995-3, direct substitution with the 5223995-3 is supported by complete parameter equivalence. The substitute part is available in tube packaging, whereas the original part was supplied in bulk packaging.
