TE Connectivity AMP Connectors 223995-2 Equivalent & Substitute Parts

Part Overview

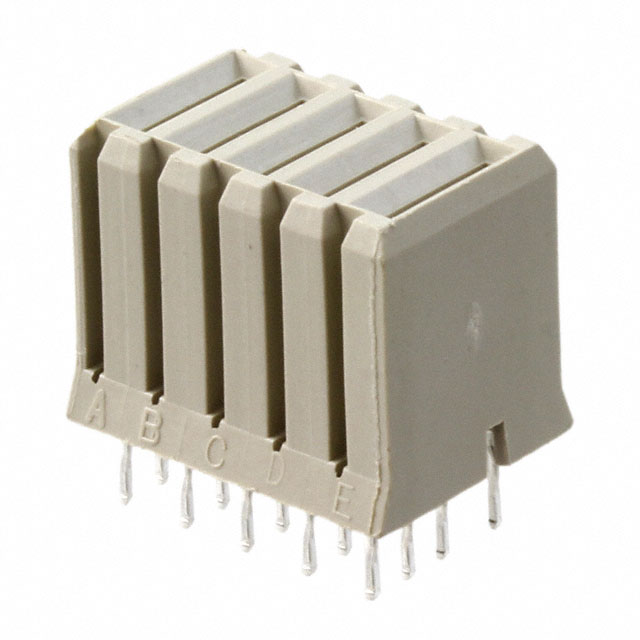

The TE Connectivity AMP Connectors 223995-2 is a 5-position receptacle connector featuring female blade sockets for backplane power applications. This through-hole mounted connector is designed for press-fit termination and operates within the Universal Power Modules (UPM) series. The part is currently active in production status and maintains full RoHS compliance. Substitute parts are identified to provide alternative sourcing options when the primary part number becomes unavailable or when packaging requirements differ.

Substiute Parts

223995-2

TE Connectivity AMP ConnectorsIn Stock: 820223995-2 Datasheet

Current PartRFQ

5223995-2

TE Connectivity AMP ConnectorsIn Stock: 33965223995-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 5223995-2 is electrically and mechanically equivalent to the primary part 223995-2 based on the following critical parameters:

Electrical Equivalence Criteria:

• Identical connector type: Receptacle, Female Blade Sockets
• Identical number of positions: 5
• Identical voltage rating: 250V
• Identical contact finish: Gold or Gold-Palladium
• Identical operating temperature range: -55°C to 125°C

Mechanical Equivalence Criteria:

• Identical connector style: Blade Power
• Identical mounting type: Through Hole
• Identical termination method: Press-Fit
• Identical contact layout: 5 Power
• Identical color: Gray
• Identical material flammability rating: UL94 V-0

Compliance Equivalence:

• Both parts maintain RoHS compliance
• Both parts have Moisture Sensitivity Level 1 (Unlimited)
• Both parts carry ECCN classification EAR99

The primary distinction between these parts is packaging format: 223995-2 is supplied in standard packaging, while 5223995-2 is supplied in tube packaging. This substitution is valid for applications where packaging format does not impose constraints on assembly or logistics processes.

Parameter Comparison

Engineering Selection Recommendations

Both 223995-2 and 5223995-2 are active production parts from TE Connectivity AMP Connectors and are suitable for backplane power connector applications. Selection between these parts should be based on the following factors:

Primary Part (223995-2):

• Use when standard packaging format is required for assembly line integration
• Current inventory: 748 pieces
• RoHS Compliant status

Substitute Part (5223995-2):

• Use when tube packaging format is compatible with receiving and storage procedures
• Higher inventory availability: 3300 pieces
• ROHS3 Compliant status, representing the most current RoHS revision
• Identical electrical and mechanical performance to primary part

Both parts meet UL94 V-0 flammability requirements and operate across the full temperature range of -55°C to 125°C. The 250V voltage rating and gold or gold-palladium contact finish ensure reliable performance in power distribution applications. Moisture Sensitivity Level 1 indicates no special handling requirements during storage or assembly.

Frequently Asked Questions (FAQ)

Q: Are 223995-2 and 5223995-2 electrically interchangeable?

A: Yes. Both parts are 5-position receptacle connectors with identical electrical specifications, including 250V voltage rating, gold or gold-palladium contact finish, and -55°C to 125°C operating temperature range. They are suitable for the same backplane power applications.

Q: What is the difference between these two part numbers?

A: The primary difference is packaging format. Part 223995-2 uses standard packaging, while 5223995-2 uses tube packaging. All electrical and mechanical specifications are identical.

Q: Can I use 5223995-2 in place of 223995-2 on a PCB assembly?

A: Yes. Both parts feature identical through-hole mounting, press-fit termination, and physical dimensions. The connector itself is functionally identical; only the packaging differs.

Q: Are there any compliance differences between these parts?

A: Both parts are RoHS compliant. The primary part carries RoHS Compliant status, while the substitute carries ROHS3 Compliant status, representing alignment with the most current RoHS directive revision. Both meet UL94 V-0 flammability requirements.

Q: Which part should I select if inventory is a concern?

A: Part 5223995-2 has significantly higher inventory availability (3300 pieces) compared to 223995-2 (748 pieces). If supply continuity is critical, 5223995-2 is the preferred selection.

Q: Do these connectors require special handling during storage?

A: No. Both parts have Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity precautions are required during storage or handling.

Q: Are these parts suitable for high-temperature applications?

A: Yes. Both parts operate across the temperature range of -55°C to 125°C, making them suitable for industrial and automotive backplane applications within this range.
