TE Connectivity Erni 223397 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Erni 223397 is a high-speed connector header with 60 positions designed for PCB mounting applications. This component features male pins and blades configured for through-hole installation in backplane environments. The part is classified as obsolete, necessitating identification of active equivalent components to maintain design continuity and ensure ongoing component availability for production and field service applications.

Substiute Parts

223397

TE Connectivity ErniIn Stock: 732223397 Datasheet

Current PartRFQ

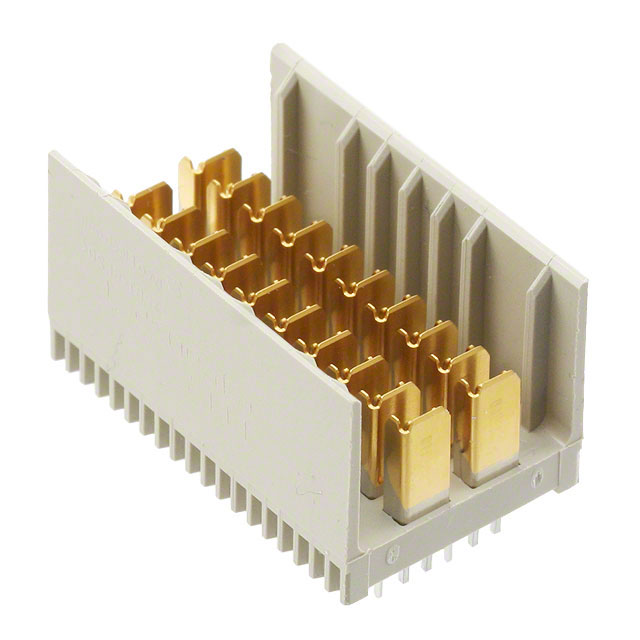

6469025-1

TE Connectivity AMP ConnectorsIn Stock: 168466469025-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity Erni 223397 is based on functional and electrical equivalence determined by the following critical parameters:

Functional Equivalence Criteria:

• Number of Positions: 60 (exact match required)
• Connector Type: Header with Male Pins and Blades (exact match required)
• Connector Style: High Speed (exact match required)
• Mounting Type: Through Hole (exact match required)

Electrical and Environmental Compatibility:

• Pitch: 0.098" (2.50mm)
• Voltage Rating: 250V
• Current Rating: 0.700A per contact
• Operating Temperature Range: -65°C to 105°C
• Contact Finish: Gold plating

The substitute part TE Connectivity AMP Connectors 6469025-1 satisfies all functional and electrical parameters required for direct substitution. This part maintains identical position count, connector configuration, and high-speed performance characteristics while offering active product status and improved supply chain availability.

Parameter Comparison

Engineering Selection Recommendations

Active Product Status: The substitute part 6469025-1 maintains active product status with TE Connectivity AMP Connectors, ensuring long-term availability and continued manufacturing support. The obsolete status of 223397 creates supply chain risk for new production and field service applications.

Regulatory Compliance: The substitute part 6469025-1 is ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements. The part carries UL94 V-0 material flammability rating, appropriate for industrial backplane connector applications.

Supply Chain Continuity: Current inventory of 6469025-1 totals 16754 pieces, providing substantially greater availability compared to the 707 pieces of the obsolete 223397. This inventory differential supports both immediate procurement needs and long-term production planning.

Functional Equivalence: Both parts are classified as high-speed connector headers with identical 60-position configuration and through-hole mounting. The substitute maintains the male pins and blades connector type required for backplane applications.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity Erni 223397 be directly replaced with 6469025-1?

A: Yes. Both parts are 60-position high-speed connector headers with male pins and blades configured for through-hole PCB mounting. The substitute part satisfies all functional and electrical parameters of the obsolete component.

Q: What are the key compatibility factors for this substitution?

A: Critical compatibility factors are: 60-position count, high-speed connector style, male pins and blades configuration, through-hole mounting type, 0.098" (2.50mm) pitch, 250V voltage rating, and 0.700A current rating per contact. The substitute part matches all these parameters.

Q: Why is the obsolete part being replaced?

A: The TE Connectivity Erni 223397 is classified as obsolete, creating supply chain discontinuity. The active substitute 6469025-1 ensures continued availability, regulatory compliance, and manufacturing support for both new production and field service requirements.

Q: What is the packaging difference between these parts?

A: The substitute part 6469025-1 is supplied in tube packaging. Packaging format does not affect functional or electrical compatibility for PCB assembly applications.

Q: Are there any electrical performance differences?

A: No electrical performance differences exist between the parts. Both are rated for 250V operation, 0.700A per contact, and operate across the -65°C to 105°C temperature range. Both feature gold-plated contacts for high-speed signal integrity.

Q: What is the contact layout configuration?

A: The substitute part 6469025-1 features a 4-row by 10-column arrangement with 40 signal contacts and 20 ground contacts distributed across the 60-position header. This configuration supports high-speed backplane applications with integrated ground plane distribution.

Q: Is the substitute part RoHS compliant?

A: Yes. The substitute part 6469025-1 is ROHS3 compliant and REACH unaffected, meeting current environmental regulations for electronic component manufacturing and use.
