Part Overview

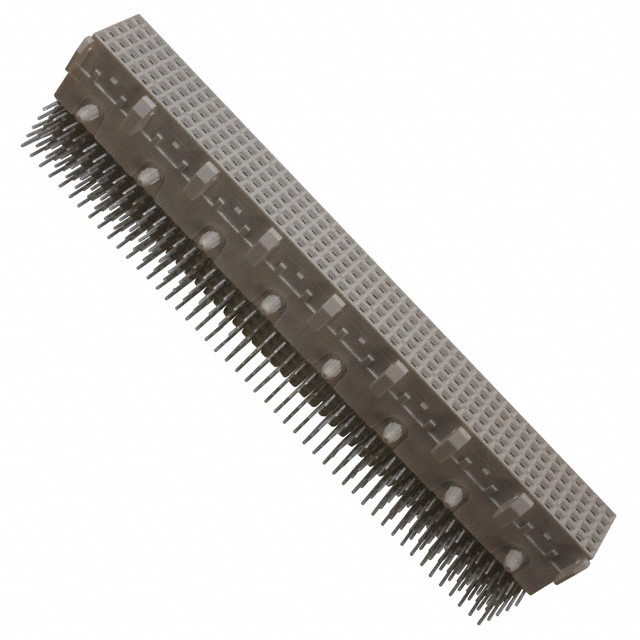

The TE Connectivity AMP Connectors 223004-8 is a 240-position Futurebus receptacle connector with female sockets, designed for board edge, through-hole, right-angle mounting applications. This connector features a 0.079" (2.00mm) pitch across 5 rows and is terminated through solder connections with gold-plated contacts.

The 223004-8 is classified as an obsolete product. Identifying equivalent and substitute parts is necessary to support legacy system maintenance, repair, and component sourcing for applications where this connector remains in service.

Substiute Parts

223004-8

TE Connectivity AMP ConnectorsIn Stock: 689223004-8 Datasheet

Current PartRFQ

5223004-8

TE Connectivity AMP ConnectorsIn Stock: 11225223004-8 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 223004-8 is determined by strict equivalence across the following critical parameters:

• Connector Type and Style: Receptacle with female sockets in Futurebus configuration
• Position Count and Pitch: 240 positions at 0.079" (2.00mm) spacing
• Row Configuration: 5-row arrangement
• Mounting and Termination: Board edge, through-hole, right-angle mounting with solder termination
• Electrical Ratings: 30V voltage rating and -55°C to 125°C operating temperature range
• Contact Material: Gold-plated finish
• Safety Compliance: UL94 V-0 flammability rating

The substitute part 5223004-8 meets all these critical parameters and is therefore electrically and mechanically interchangeable with the 223004-8.

Parameter Comparison

Engineering Selection Recommendations

The 5223004-8 is the direct substitute for the obsolete 223004-8. Both parts are manufactured by TE Connectivity AMP Connectors and share identical electrical and mechanical specifications across all critical parameters.

The primary distinction between these parts is product status and regulatory compliance:

• 223004-8: Obsolete product status with RoHS non-compliant designation
• 5223004-8: Active product status with RoHS Compliant designation

For new designs and ongoing system support, the 5223004-8 is the appropriate selection. This part maintains full electrical and mechanical compatibility while offering active product support and compliance with current regulatory requirements. The 5223004-8 is supplied in tube packaging and has higher inventory availability (1084 pieces in stock versus 676 pieces for the obsolete variant).
